Libec HS-150 Overview
-
1Description
-
2Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload)
-
3Libec RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl
-
4Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
-
5Libec Lightweight Rubber Foot for RT20C Tripod (Set of 3)
-
6Libec Carrying Case

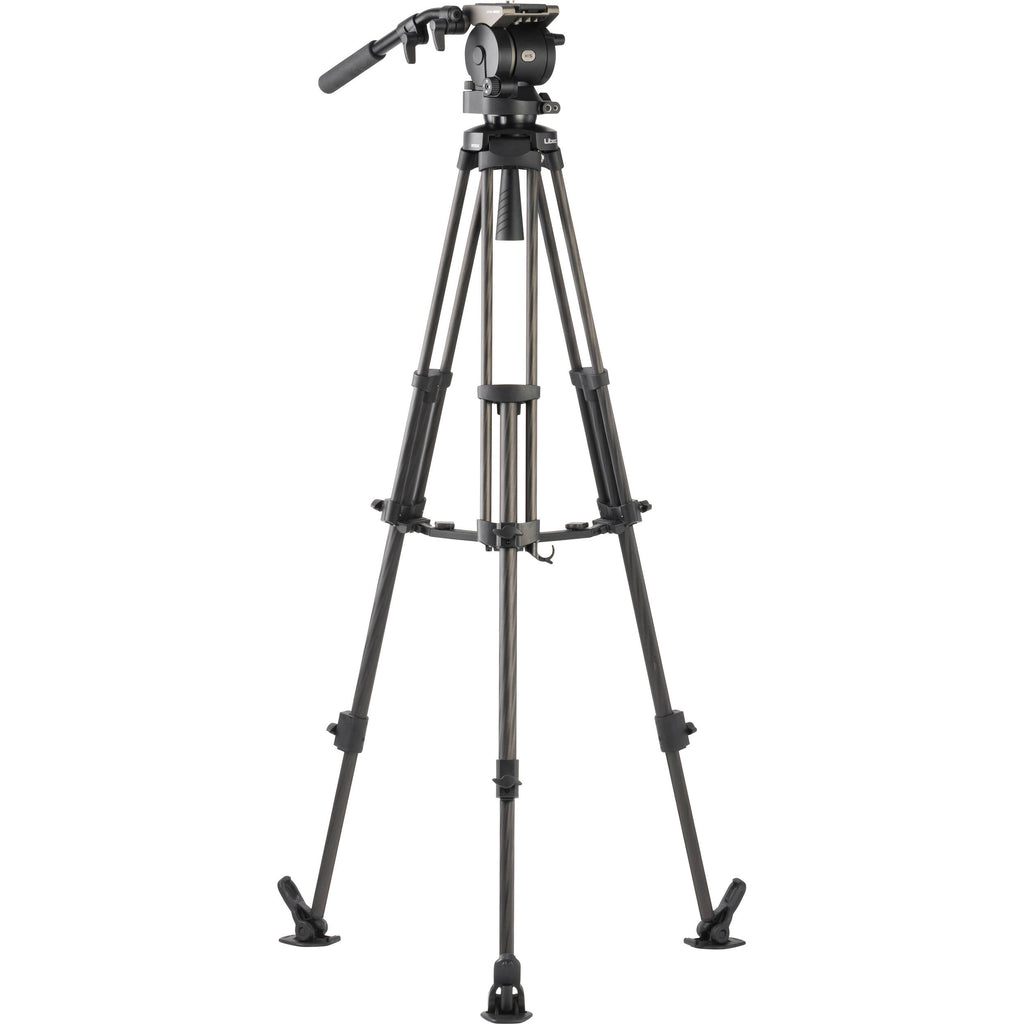

This HS-150MC Tripod System from Libec features 2-stage legs with a 6.6 lb load capacity, a 75mm fluid head, a compatible mid-level spreader, three rubber feet, and a carrying case to bring it to set. Intuitive adjustment of pan, tilt, and counterbalance makes for a customizable experience. Aluminum construction creates a lightweight and durable tripod design.

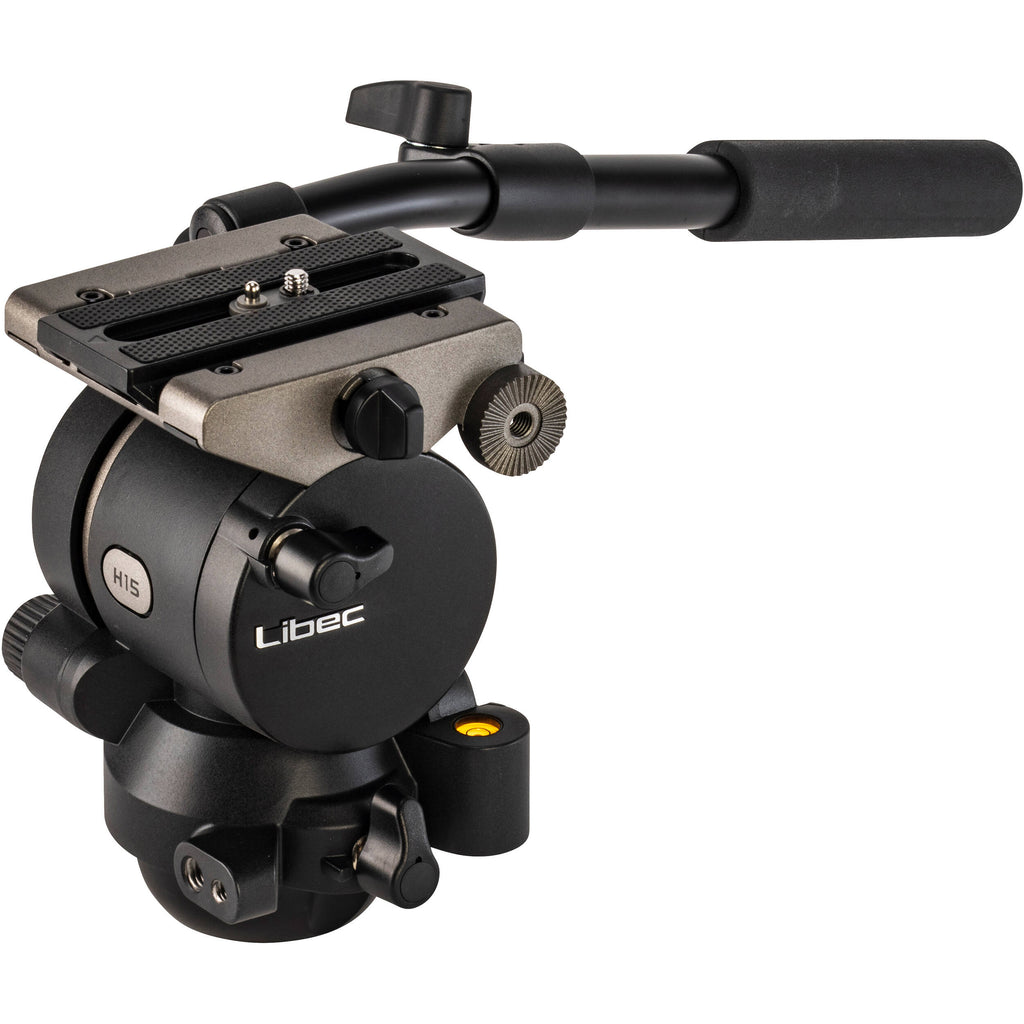

Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload)
Integrate a fluid head into your tripod configuration with various adjustment features using this H15 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H15 head has a load capacity of 6.6 lb and an adjustable counterbalance range of 1.7 to 4.4 lb.
Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H15 is compatible with Manfrotto or Sachtler heads.
Libec RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl
Add a durable, lightweight tripod to your camera rig with this RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl from Libec. The RT20C offers a 75mm bowl fitting for mounting a wide variety of fluid heads. The lightweight carbon fiber legs weigh only 3.5 lb. Secured by twist levers, the 2-stage legs have a height range of 14.6 to 60.6". This tripod does not include rubber feet or a spreader, which can be purchased separately.
Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
The BR-2B Mid-Level Spreader from Libec is designed to offer added stability to RT20C and RT30B tripods. It installs onto the mid-level leg stage and can adjust the length of each arm by sliding them out and tightening them with locking knobs. Best used on uneven surfaces where ground spreaders won't lie flat, the BR-2B also keeps the tripod's legs from twisting.
Libec RT20C and RT30B tripods
Libec Lightweight Rubber Foot for RT20C Tripod (Set of 3)
These Lightweight Rubber Feet for RT20C Tripod from Libec provide improved traction on polished floors and other slick surfaces when using the RT20C carbon fiber tripod. They attach and remove quickly and prevent marring surfaces.
The Libec RC-30 Carrying Case (Black) is a non-padded, vinyl case designed to carry a Libec RT-30 tripod with an RH-30 tripod head attached. It is carried by the handle or the attached, adjustable shoulder strap.
- Non-padded vinyl
- Zipper closure
- Carry handle
- Attached, adjustable shoulder strap
Compatible with Libec RT-30 tripod with an RH-30 tripod head
In the Box
- Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload)
- Spare 1/4"-20 and 3/8"-16 Screws
- Limited 3-Year Manufacturer Warranty
- Libec RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl
- Limited 3-Year Manufacturer Warranty
- Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
- Limited 3-Year Manufacturer Warranty
- Libec Lightweight Rubber Foot for RT20C Tripod (Set of 3)
- Limited 3-Year Manufacturer Warranty
- Libec Carrying Case
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload)
- Libec RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl
- Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
- Libec Lightweight Rubber Foot for RT20C Tripod (Set of 3)
- Libec Carrying Case
Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload) Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate |
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin |
| Balance Plate Sliding Range |
1.2" / 30 mm |
Head
| Base Mount |
75 mm Half Ball
Flat Base |
| Counter Balance |
Continuous (1.8 to 4.4 lb / 0.8 to 2 kg) |
| Center of Gravity |
2.2" / 55 mm |
| Included Pan Handle Length |
10.8" / 275 mm |
| Bubble Level |
1 x Illuminated |
| Accessory Mounting |
1/4"-20 Female Thread
3/8"-16 Female Thread |
Pan & Tilt
| Drag Control |
Tilt: Stepped 3-Step
Pan: Stepped 3-Step |
| Drag Type |
Fluid |
| Vertical Tilt |
+90° to -70° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
6.6 lb / 3 kg |
| Operating Temperature |
-8 to 92°F / -40 to 60°C |
| Weight |
6 lb / 2.7 kg |
Packaging Info
| Package Weight |
8.585 lb |
| Box Dimensions (LxWxH) |
19.8 x 11 x 8.6" |
Libec RT20C 2-Stage Lightweight Carbon Fiber Tripod with 75mm Bowl Specs
Camera Plate
| Camera Mounting Screw |
Not Specified by Manufacturer |
General
| Load Capacity |
Not Specified by Manufacturer |
| Maximum Working Height |
60.6" / 154 cm |
| Minimum Working Height |
14.6" / 37 cm |
| Closed Length |
Not Specified by Manufacturer |
| Materials |
Aluminum |
| Weight |
3.5 lb / 1.6 kg |
Legs
| Leg Lock Type |
Rotating Locking Lever |
| Leg Sections |
3 |
| Spreader |
Mid-Level, Ground (Not Included) |
Packaging Info
| Package Weight |
5.43 lb |
| Box Dimensions (LxWxH) |
31.9 x 8.4 x 7.4" |
Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods Specs
Legs
| Type |
Mid-Level |
| Adjustable |
Yes |
| Weight |
7.1 oz / 200 g |
Packaging Info
| Package Weight |
0.85 lb |
| Box Dimensions (LxWxH) |
13.35 x 5.3 x 4.9" |
Libec Lightweight Rubber Foot for RT20C Tripod (Set of 3) Specs
| Material |
Rubber |
| Dimensions |
ø: 2.7 x L: 3.5" / ø: 68 x L: 88 mm |
Libec Carrying Case Specs
| Carrying/Transport Options |
Connecting Handles, Shoulder Strap |
| Type of Closure |
Zipper |
| Exterior Material |
Vinyl, Nylon |
| Padded |
No |
Packaging Info
| Package Weight |
1.95 lb |
| Box Dimensions (LxWxH) |
21.1 x 15.2 x 2.5" |
