Description
Lian Li EG1200G Overview

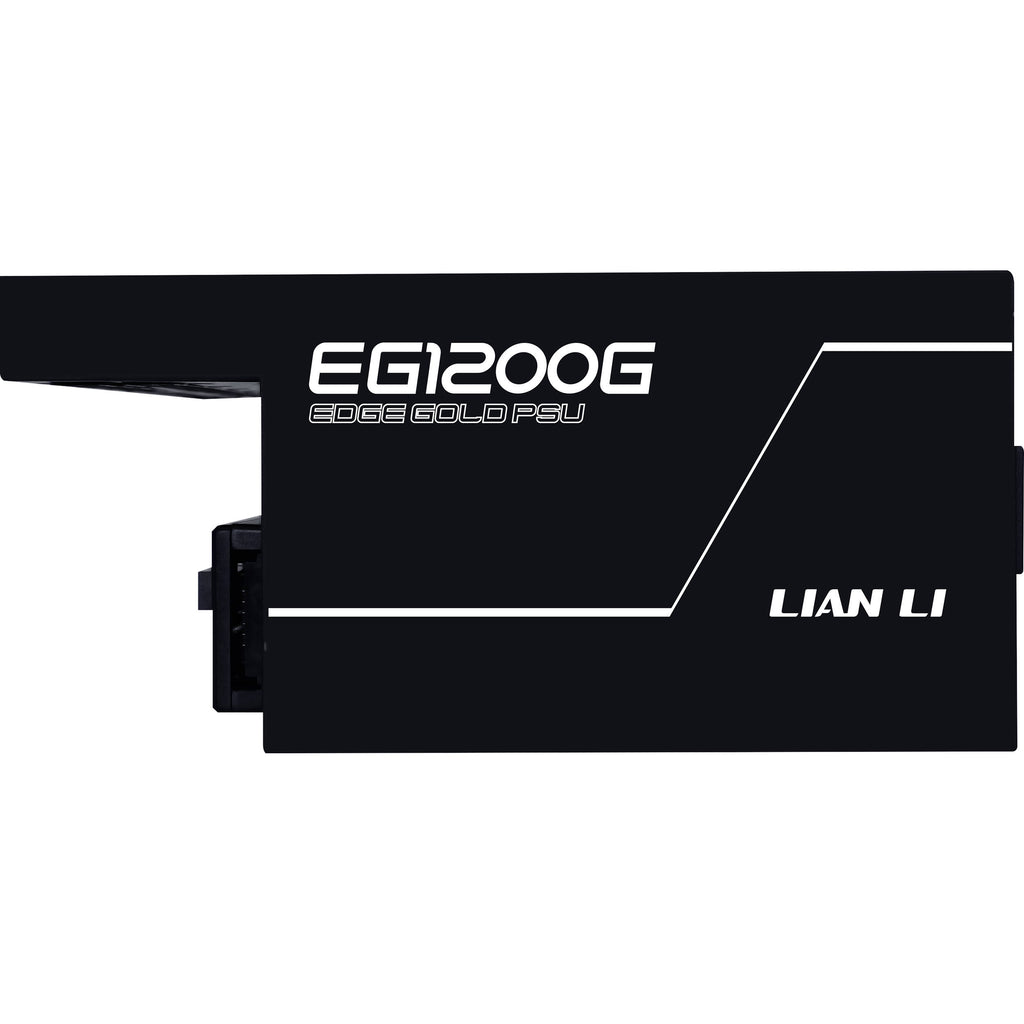

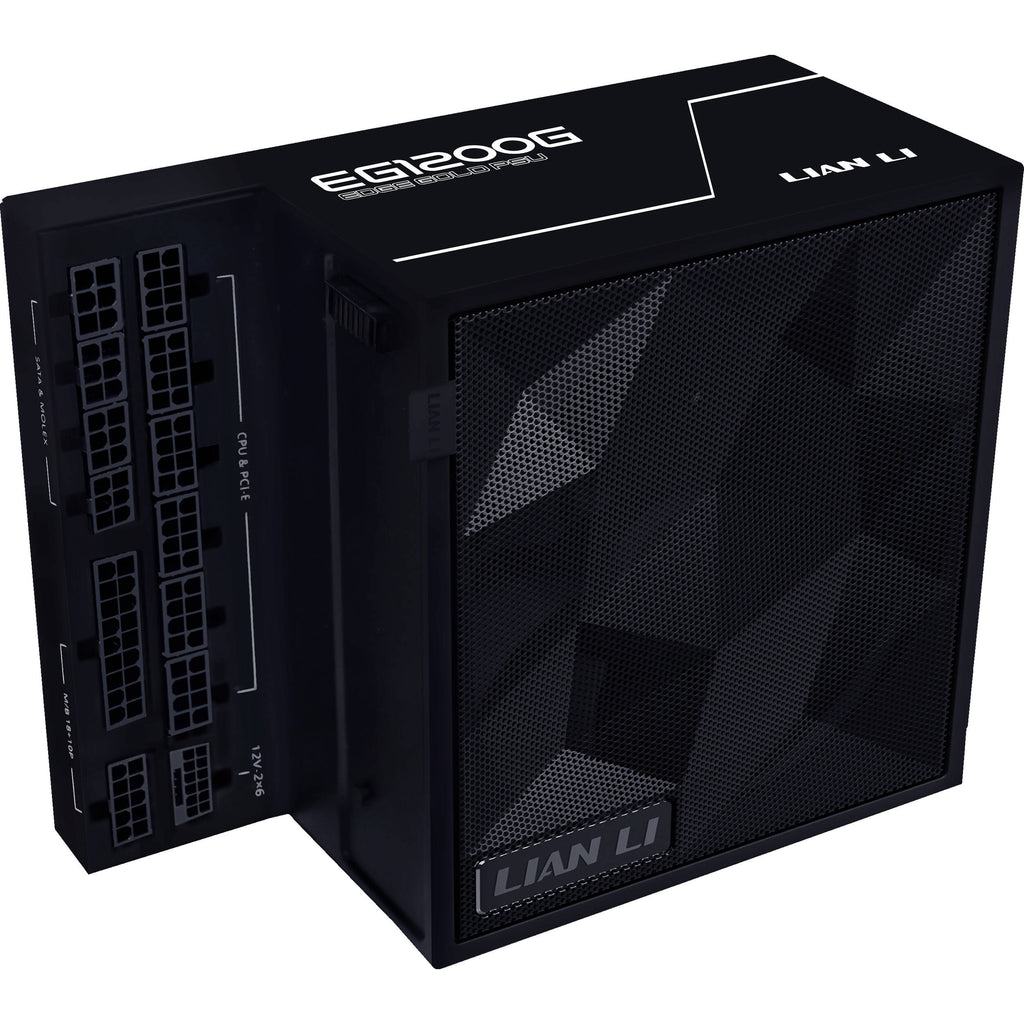

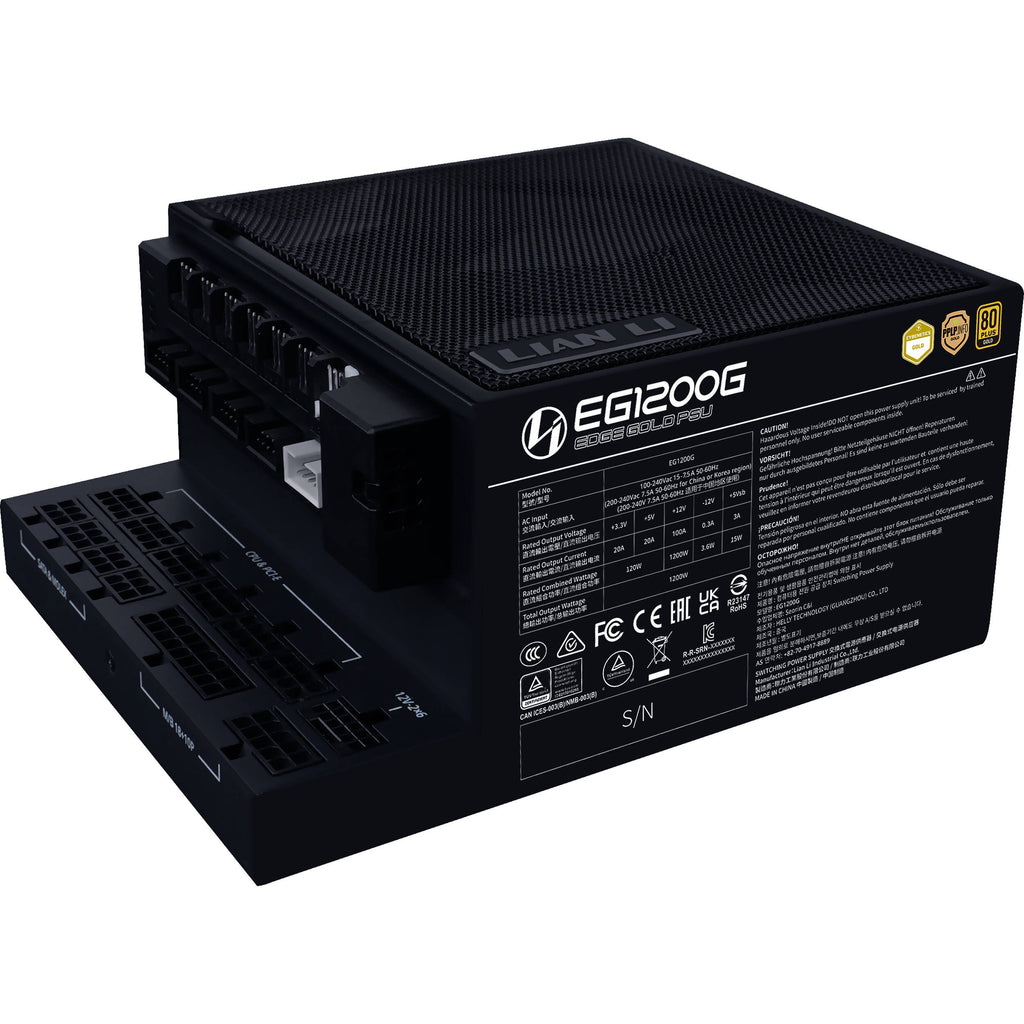

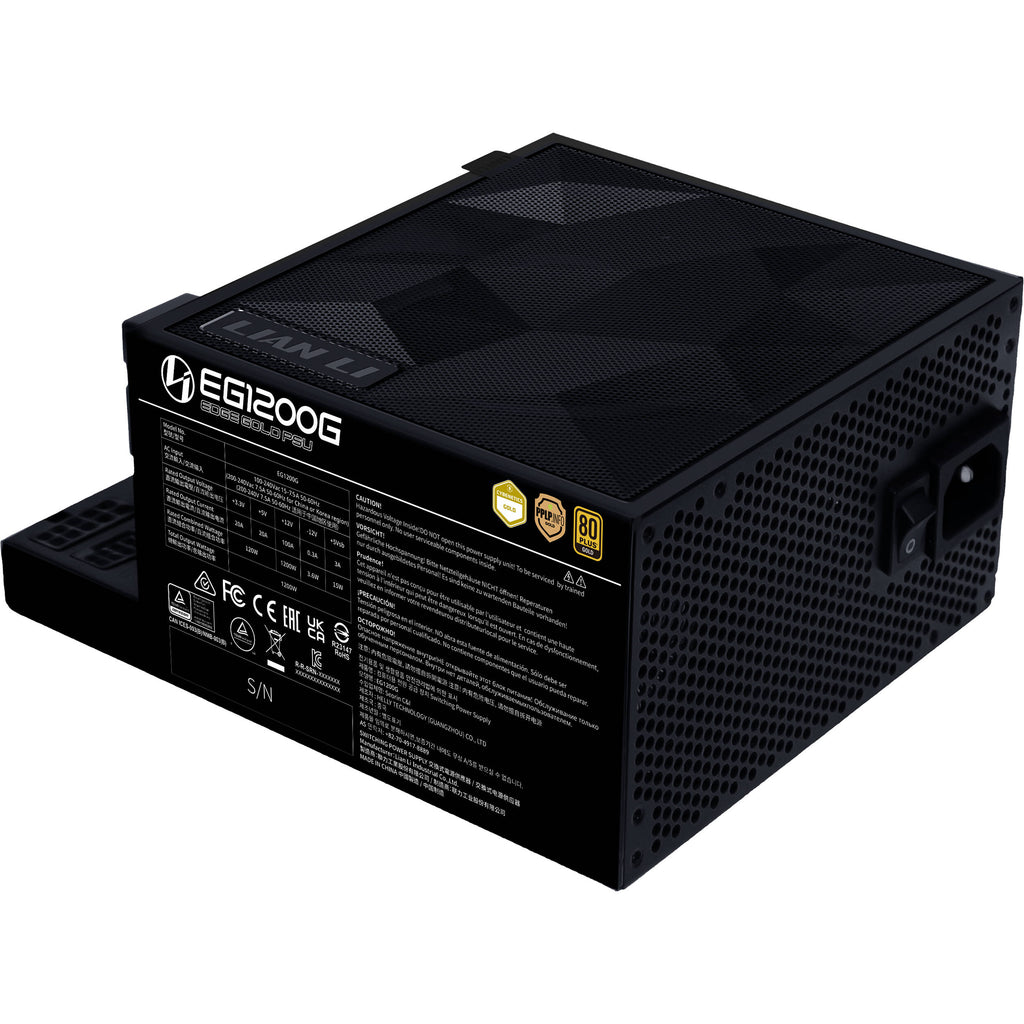

Designed for dual-chamber PC cases, the L-shaped Lian Li EDGE GOLD 1200W 80 PLUS Gold Modular ATX Power Supply provides a unique cabling solution, making it a highly capable PSU for users who prioritize clean aesthetics, convenience, and airflow.

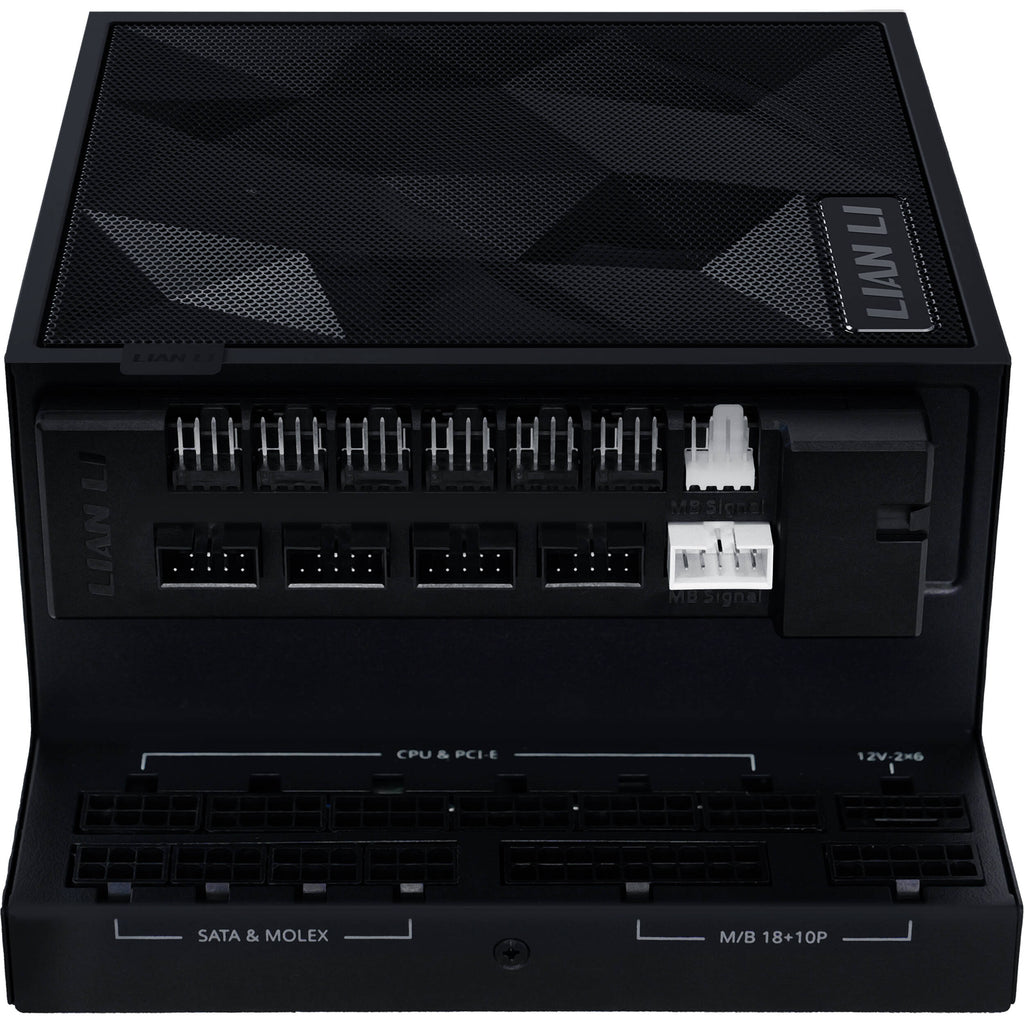

This power supply features a fully modular design, with a USB and fan PWM module that can be attached to the power supply body or connected via a PCIe power interface for independent operation. The module directly provides six extended 4-pin fan connectors, each rated at 2A, to power additional fans and four USB ports supporting up to eight downstream connections, making it ideal for RBG controllers and USB devices. A USB 9-pin cable, a USB 9-pin to USB-A cable, and a 3-pin fan cable are included.
Connectivity
The EDGE GOLD features a single +12V 1200W rail, meeting ATX 3.1 motherboard compliance to efficiently operate your resource-demanding components. It features a multitude of connectors to suit your needs, such as 20+4 pin, 4+4 pin, and 8-pin motherboard connectors alongside six PCIe connectors, 12 SATA connectors, and one peripheral connector. A 16-pin 12VHPWR connector for high-powered NVIDIA graphics cards is included with this power supply.
Longer Cable Reach for Versatile Builds
The included cables are considerably longer compared to other Edge PSU models, offering flexibility for dual-chamber or regular towers, and ensuring optimal cable management for all kinds of builds.
80 PLUS Gold Rating
Achieving the 80 PLUS Gold rating, the EDGE GOLD ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
Cool and Quiet

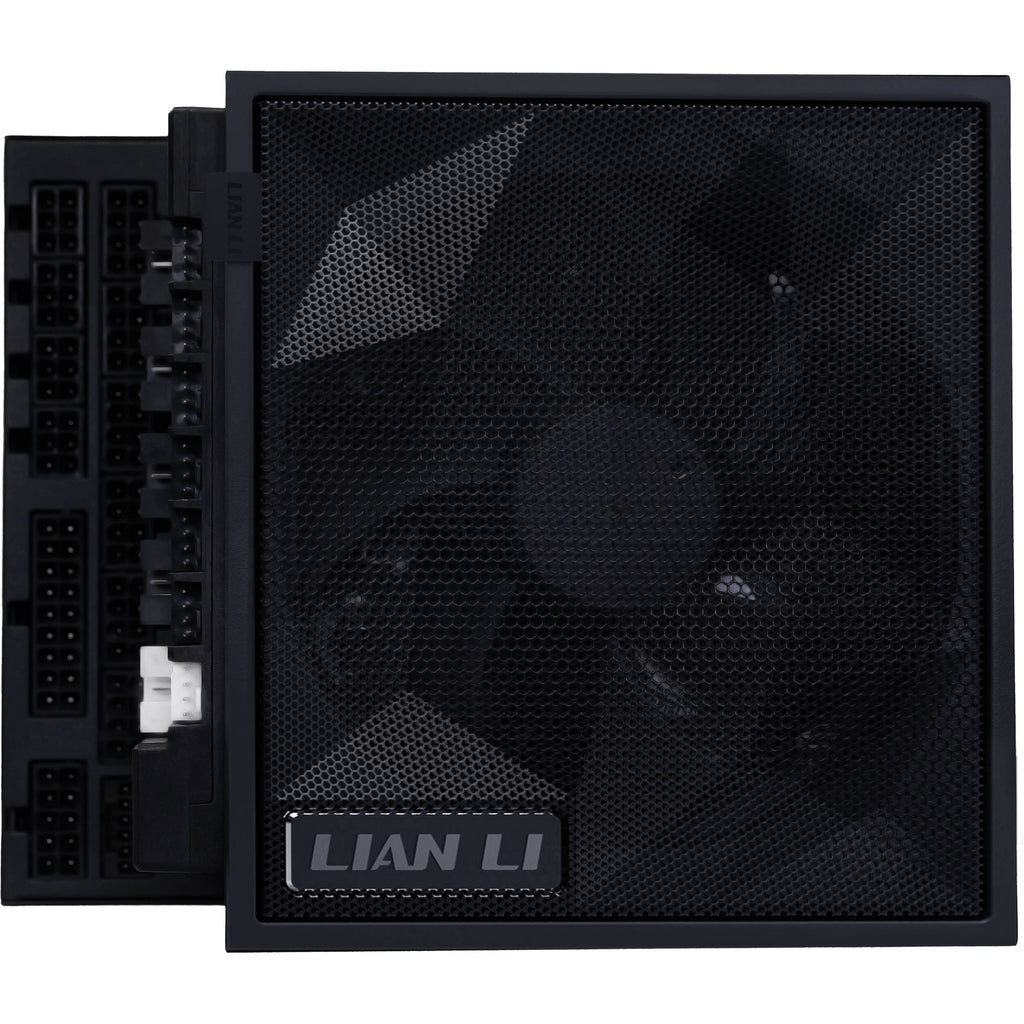

The power supply comes equipped with a 120mm PWM fan under an open-style mesh vent for excellent heat dissipation. Even under heavy load, the fan operates efficiently with minimal noise, as well as offering a fanless mode, where the fans remain at zero rpm during low power loads for quiet operation.
Dual-Color PCIe 5.1 Connector
Lian Li's in-house designed 12V-2x6 connector features copper alloy soldered terminals and a dual-colored shell to ensure secure connections.
Industrial-Grade Capacitors
The EDGE GOLD PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
Sufficient Protection
This PSU features OCP, OVP, SCP, OPP, UVP, OTP, SIP, and NLO protections, as well as an inrush current limiter that ensures the Edge Gold delivers continuously stable and reliable power.
UPC: 840353047853
Items Included
- Lian Li EDGE GOLD 1200W 80 PLUS Gold Modular ATX Power Supply (Black)
- 20+4 Pin Motherboard Cable
- 8-Pin CPU Power Cable
- 4+4 Pin CPU Power Cable
- 3 x 8/6+2 Pin PCIe Power Cable
- 6+2 Pin PCIe Power Cable
- 12 x SATA Cable
- 4x4 Pin Cable
- 2x8 Pin 12VHPWR Cable
- USB 9-Pin Cable
- USB 9-Pin to USB-A Cable
- 3-Pin Fan Cable
- Limited 10-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lian Li EG1200G Specs
Key Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
1x 8-Pin EPS CPU 1x 4+4-Pin EPS CPU 1x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design |
Modular
|
| Total Wattage |
1200 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Gold
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
1x 8-Pin EPS CPU 1x 4+4-Pin EPS CPU 1x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design |
Modular
|
| PCIe Connector Distances |
25.6" / 650 mm
29.5" / 750 mm |
| SATA Connector Distances |
11.8" / 300 mm
12.4" / 315 mm 13" / 330 mm 13.6" / 345 mm 14.8" / 375 mm 16.7" / 425 mm 21.7" / 550 mm 22.6" / 575 mm 27.6" / 700 mm 33.5" / 850 mm |
| Peripheral Connector Distances |
19.7" / 500 mm
|
| ATX Connector Distance |
29.5" / 750 mm
|
| EPS Connector Distances |
24.4" / 620 mm
|
Electrical
| Total Wattage |
1200 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1200 W
|
| Combined Power for +3.3/+5 V |
120 W
|
| Max Power for +5 Vsb |
120 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Gold
|
| Active Power Factor Correction |
Yes
|
Cooling
| Fan Size |
120 mm
|
| Bearing Type |
Fluid Dynamic Bearings (FDB)
|
| Noise Level |
39.3 dBA
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX v3.1
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Dimensions |
7.2 x 5.9 x 3.4" / 182 x 150 x 86 mm
|
Packaging Info
| Package Weight |
8.2 lb
|
| Box Dimensions (LxWxH) |
13.4 x 8.2 x 5.4"
|
