Description
LG CBAF-0151 Overview

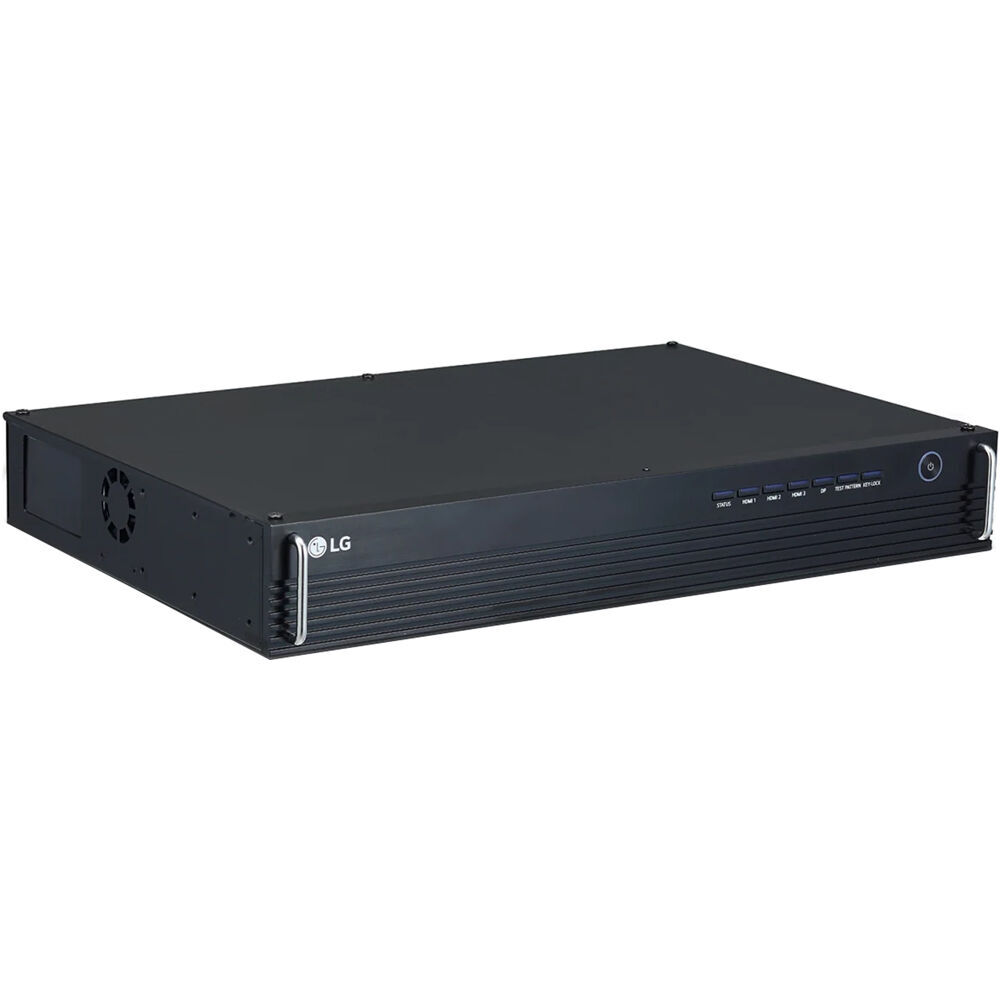

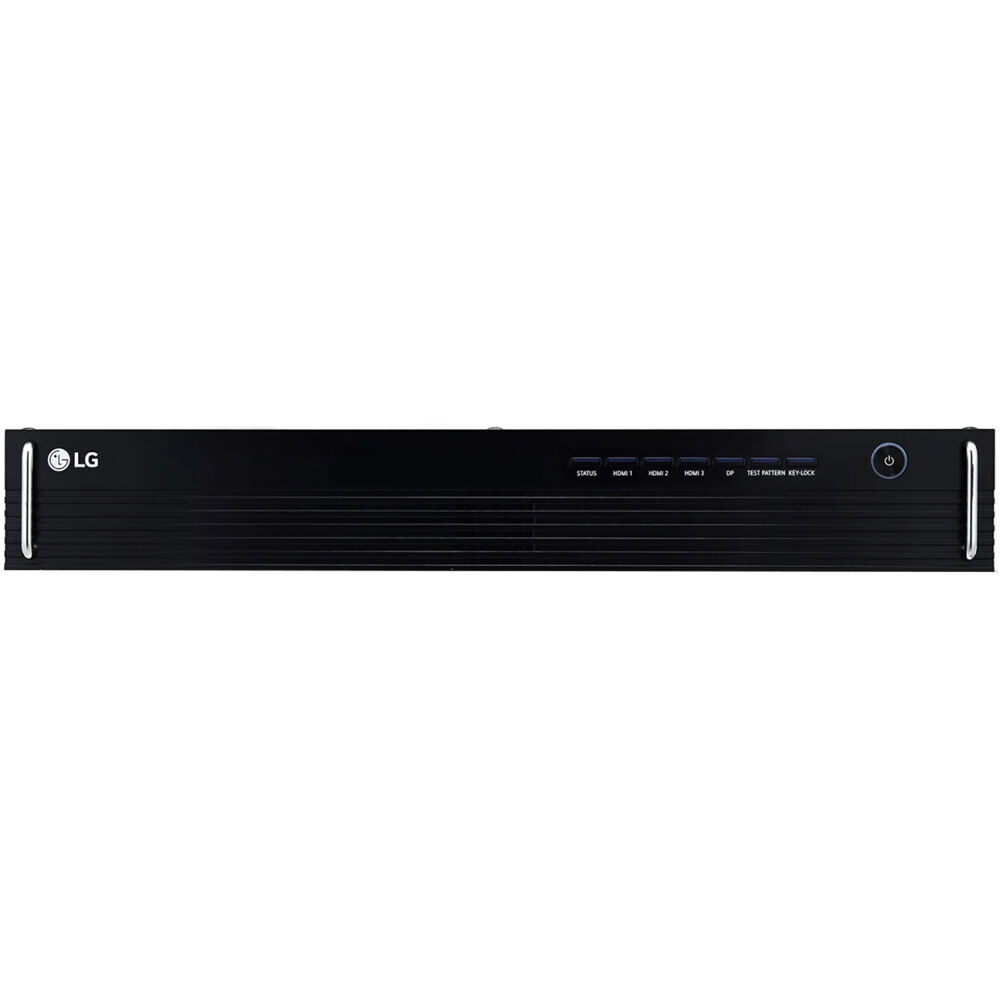

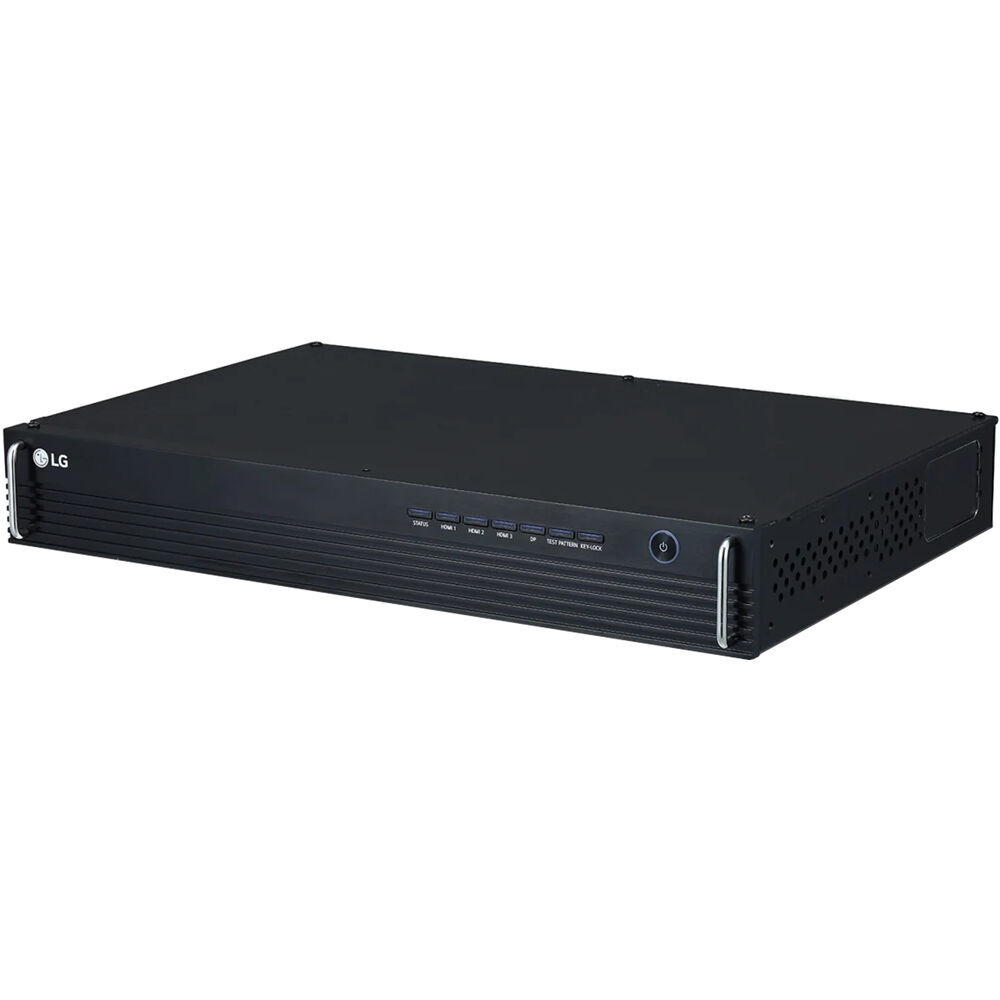

Control the LBAF series LED digital signage display systems with this CBAF-0151 4K System Controller from LG. The controller features an RJ45 control port and connects to a computer using a USB connection for control and configuration. It supports scaling and runs webOS.
You can plug in various video sources up to UHD 4K60 using the HDMI, SDI, IP, or DisplayPort inputs, and it can output to LBAF signage displays and unit controllers using DisplayPort and RJ45 outputs. You can also control the system controller over RS-232 with the included cable, or you can use an optional IR controller.
UPC: 195174067147
In the Box
- LG CBAF-0151 4K System Controller for LBAF Series
- Limited 3-Year Manufacturer Warranty
LG CBAF-0151 Specs
| Video Inputs |
1 x HDMI 2.0 Input
1 x DisplayPort 1.2 4 x BNC 3G-SDI |
| Video Output |
10 x RJ45 LAN Output to LED
|
| Control I/O |
1 x RJ45 Ethernet LAN Input/Output
1 x 2.5 mm RS-232C Input 1 x 2.5 mm RS-232C Output 1 x 2.5 mm IR |
| Other I/O |
1 x USB-A 2.0 Input
1 x RJ45 IR-APL Input 1 x RJ45 IR-APL Output 1 x Optical Audio |
| Maximum Resolution |
3840 x 2160p60
|
| Output Resolution |
8.2 MP
|
| HDCP |
2.2 / 1.3
|
| HDR Support |
HDR10 Pro
|
| Supported Applications |
SuperSign CMS
webOS API LG ConnectedCare LED Assistant Software |
| Dimensions |
17.6 x 12.4 x 2.5" / 446 x 314 x 63 mm
|
| Weight |
12.8 lb / 5.8 kg
|
