| ₹ 707730.0 includes GST and import duties. | |
| B2B customers can avail ₹ 107928.83 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
LG BH5F Overview

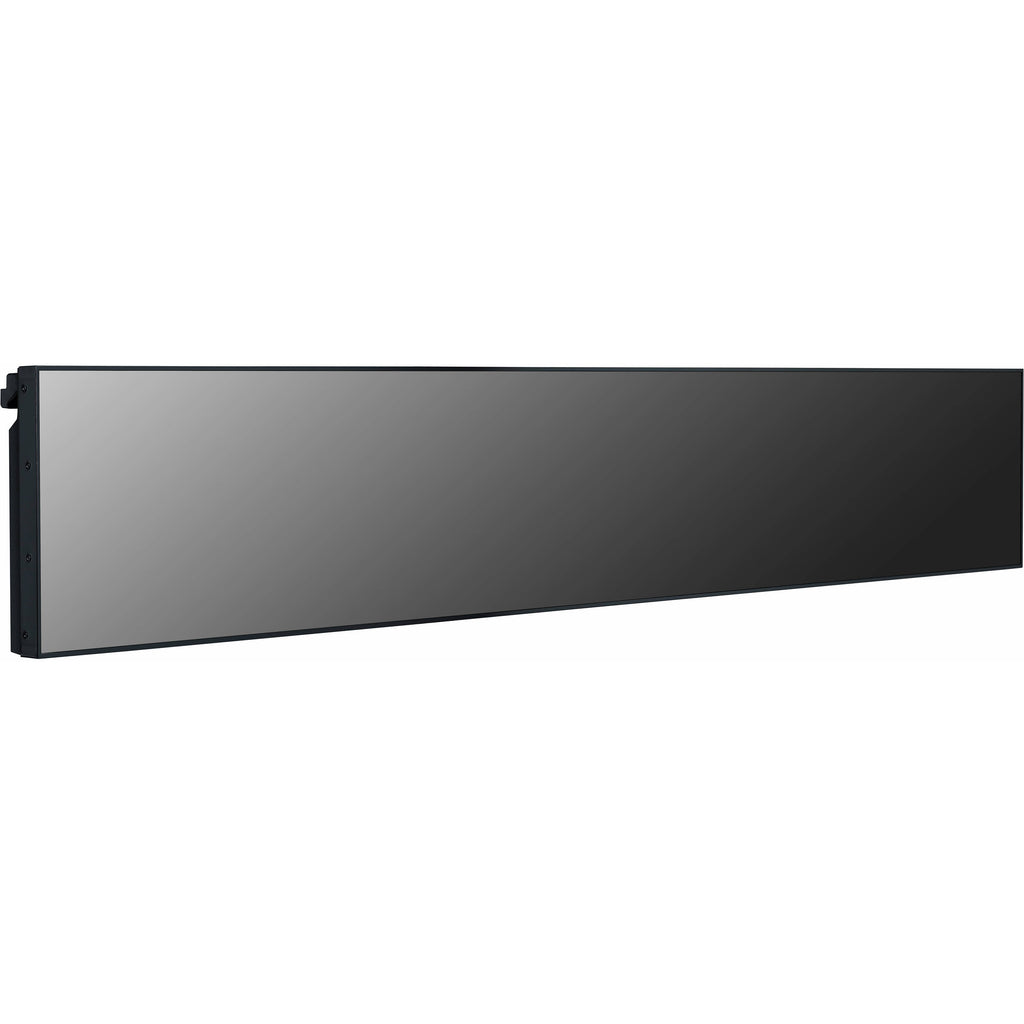

Deliver information in a unique way while bringing unused and leftover space to life with the LG BH5F-M 86" 4K UHD Ultra-Stretch Digital Signage Commercial Monitor. This ultrawide signage monitor uses a 58:9 space-fitting display screen and can be installed without restriction. The UHD resolution delivers clear images with vivid colors. The ultrawide design with features like picture-by-picture and built-in content management, make this an ideal choice to create eye-catching signage in retail, museums, airports, corporate campuses, and more. Also, with an IP5X dust-proof certification, the BH5F-M 86" can be installed with confidence in places like manufacturing and warehouse environments.
58:9 Extended Wide Format
The LG BH5F-M 86" is the most suitable display for delivering new forms of advertising and multiplexed information in an ultra-widescreen format. It can bring unused and leftover space to life by being installed without being orientationally restricted. The 58:9 bar-type screen provides much more flexibility in playing content than the conventional 16:9 display.
Multi-Screen Mode with 4-Part PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View and LAN Daisy Chain Management
The BH5F-M can show a tiled scene by up to 15 × 15 configuration via DisplayPort daisy chain. This will be the best choice if you want to use a large screen or provide visual impact to your customers in a different way. In addition to the DisplayPort daisy chain for video, LAN can be daisy chained via RJ45. By using this daisy-chained network feature, you can execute commands such as controlling, monitoring, and even updating firmware.
IP5X Certified Design
The IP5X Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
Friendly User Experience
The BH5F-M 86" is equipped with LG SuperSign software, a user-friendly UX to simplify approach flows, group similar functions together, and adopt an intuitive GUI for ease of use. When using the display in portrait mode, the on-screen display can also be adjusted accordingly.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with LG's optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Items Included
- LG BH5F-M 86" 4K UHD Ultra-Stretch Digital Signage Commercial Monitor
- AC Power Cord
- Remote Control
- DisplayPort Cable
- RS-232C Cable
- IR/Light Sensor Receiver
- Limited 3-Year Manufacturer Warranty
Additional Resources
LG BH5F Specs
Key Specs
| Display Size |
86"
|
| Native Resolution |
3840 x 600
|
| Maximum Brightness |
500 nits / cd/m2 (Sustained)
|
| Inputs |
2x HDMI 2.0
1x HDMI 1.4 1x DisplayPort 1x DVI-D 1x 1/8" / 3.5 mm |
| Outputs |
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
Wi-Fi 5 (802.11ac)
|
| USB I/O |
2x USB-A 2.0 (Audio/Photo/Video)
|
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) |
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
86"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
58:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 600
|
| Maximum Brightness |
500 nits / cd/m2 (Sustained)
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
1100:1
|
| Dynamic Contrast Ratio |
500,000:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Color Gamut |
72% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
84.6 x 13.3" / 2149.5 x 336.7 mm
|
| Horizontal Frequency |
30 to 136 kHz
|
| Vertical Frequency |
56 to 62 Hz
|
| Pixels Per Inch (ppi) |
45 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Haze Level |
3%
|
Video
| TV Tuner |
No
|
Connectivity

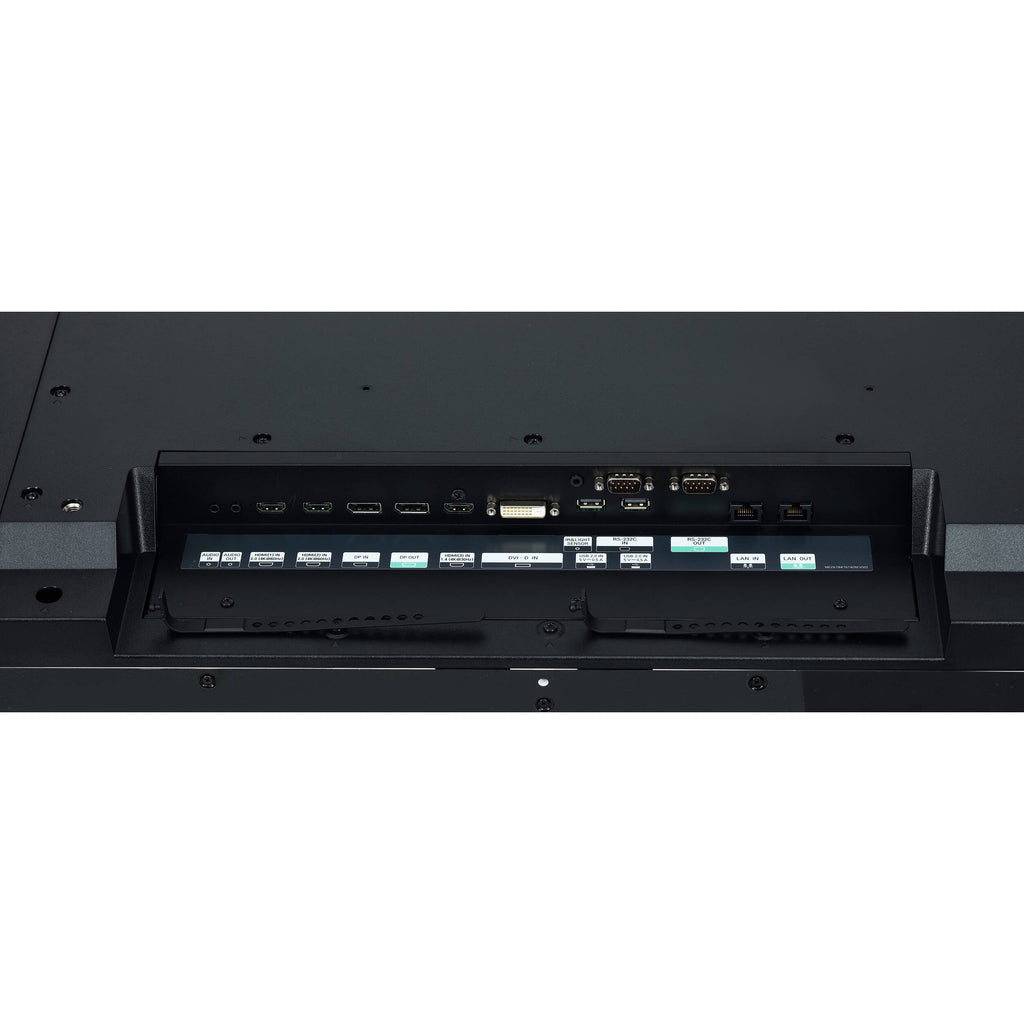

| Inputs |
2x HDMI 2.0
1x HDMI 1.4 1x DisplayPort 1x DVI-D 1x 1/8" / 3.5 mm |
| Outputs |
1x DisplayPort
1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
Wi-Fi 5 (802.11ac)
|
| NFC |
No
|
| USB I/O |
2x USB-A 2.0 (Audio/Photo/Video)
|
| Ethernet I/O |
2x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) |
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
webOS 4.0
|
| OS Compatibility |
Android/iOS
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: LG ThinQ Functionality: Adjust Settings, Remote Control |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Video File Types |
3G2, 3GP, ASF, AVI, H.264/AVC, H.265/HEVC, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPEG4, MPG, MTS, TP, TRP, TS, VOB, VP8, VP9, WMV, Xvid
|
| Supported Audio File Types |
AAC, LPCM, MP1, MP2, MP3, PCM-WAV, WMA
|
| Supported Photo File Types |
BMP, JPE, JPEG, JPG, PNG
|
| Supported Languages |
Arabic
Brazilian Portuguese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Portuguese Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish |
Electrical
| Power Consumption |
Operational: 220.0 W
Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.4 A
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 72°F / 0 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 5 to 85% Humidity
|
| Certifications |
CB, NRTL, FCCClass A, CE, ErP
|
| Mounting-Hole Pattern |
600 x 200 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP5X)
|
| Bezel Thickness |
4.4 mm (Right/Left)
5.9 mm (Bottom/Top) |
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
85 x 13.7 x 3.2" / 2158.3 x 348.5 x 81.7 mm (Panel)
|
| Weight |
45.2 lb / 20.5 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 693575.4 |
| 3-5 | ₹ 686498.1 |
| 5-10 | ₹ 672343.5 |
| 10+ | ₹ 658188.9 |
Bulk discount will be automatically applied during checkout based on quantity.
