Description

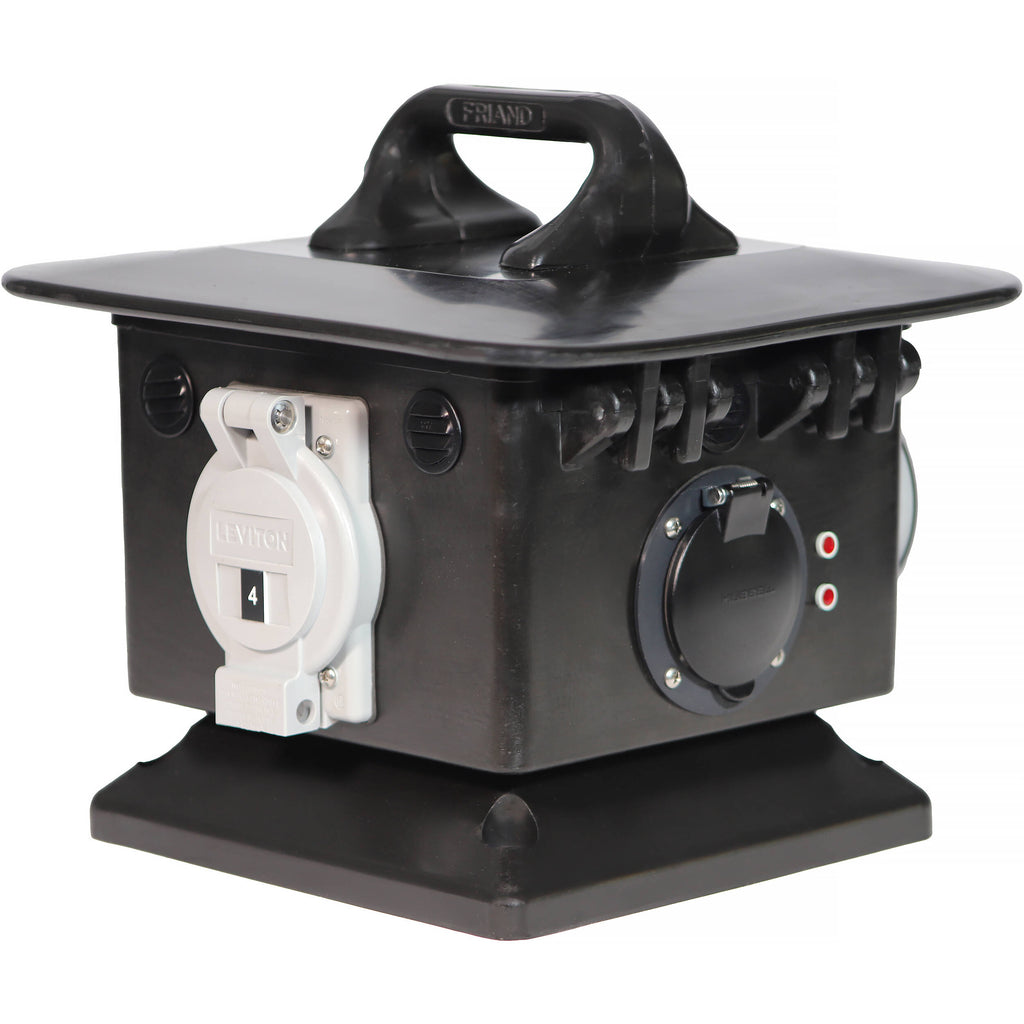

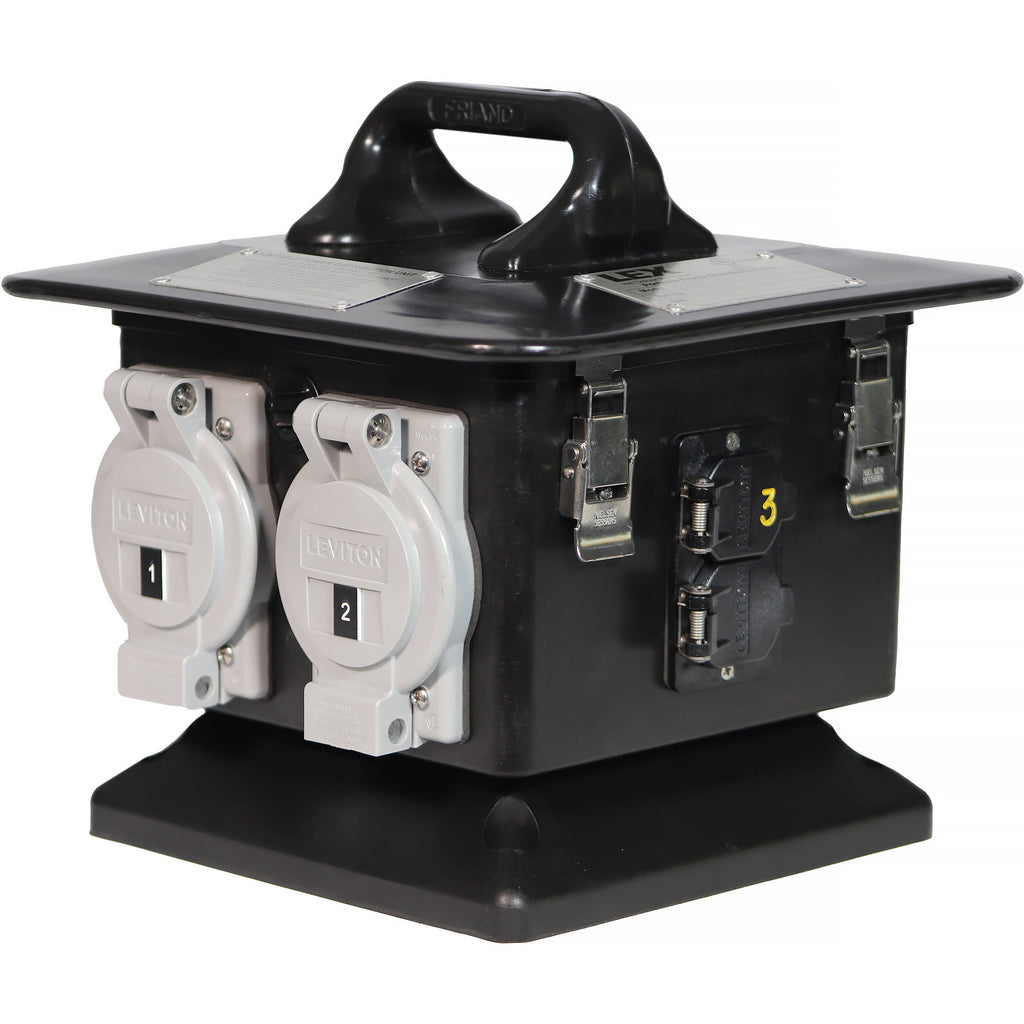

Lex Products Pagoda RV Box Overview
Power an outdoor event with the Weather-Resistant 50A Pagoda RV Box by Lex Products. This distribution box is suitable for powering large, power-hungry structures like a trailer for outdoor fairs and sporting events. A heavy-duty rubber enclosure is fully insulated and resists shock, impacts, corrosion, and weather. The box is compact in size for convenient portability. Protect your breakers with a hinged lid. The raised base elevates the receptacles above ground level for additional safety.
Output Receptacles

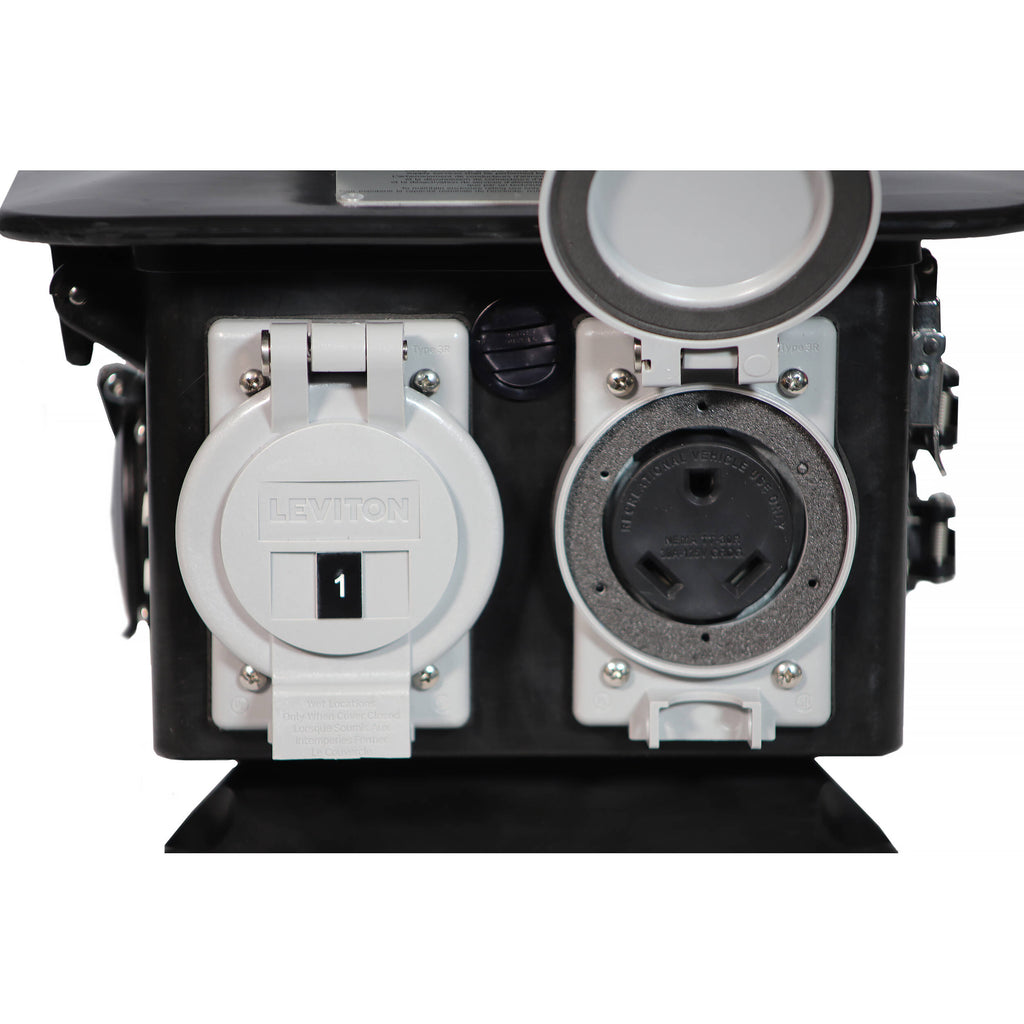

- 1 x NEMA straight blade, 5-20, 20A, single phase (H, N, G), 125VAC, panel mount
- 2 x NEMA straight blade, TT-30, 30A, single phase (H, N, G) 125VAC, panel mount

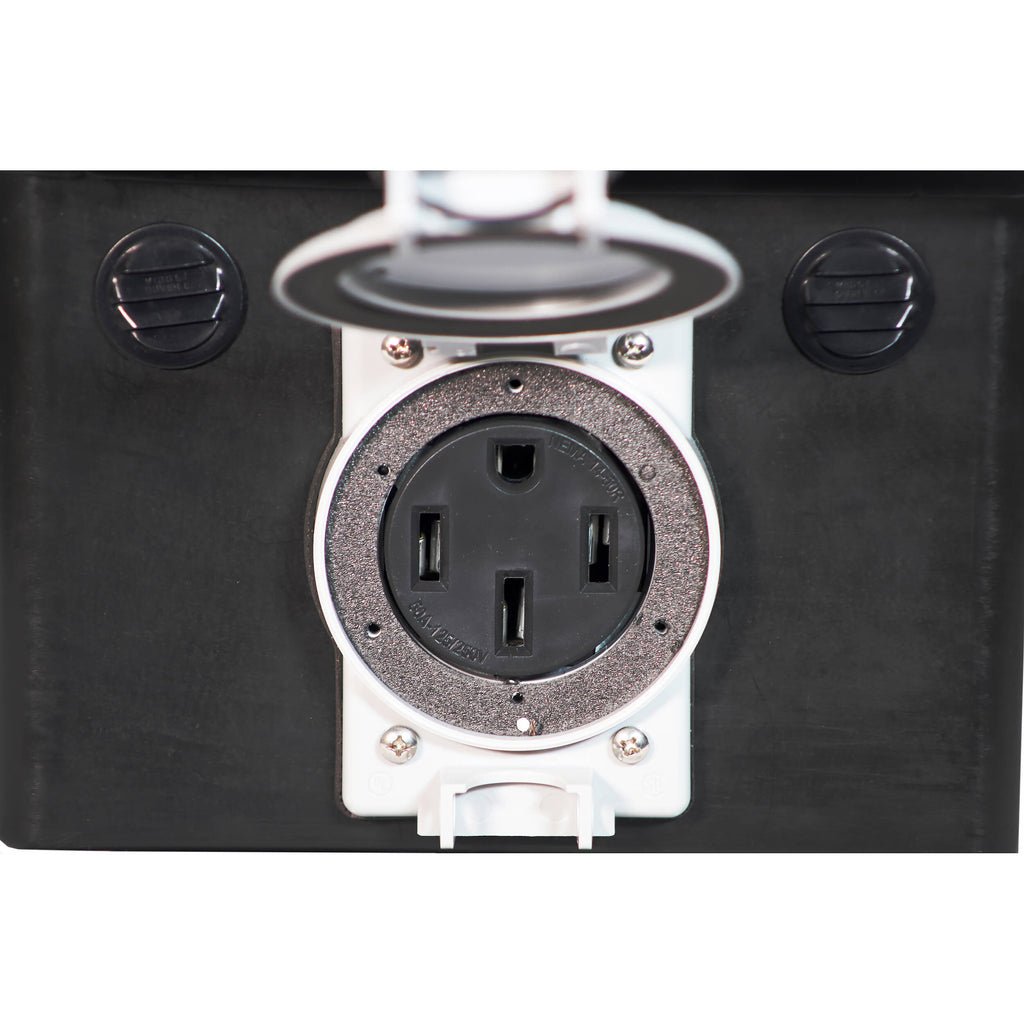

- 1 x NEMA straight blade, 14-50, 50A, single phase (H, H, N, G), 125(250VAC) panel mount
Items Included
- Lex Products Weather-Resistant 50A Pagoda RV Box
Additional Resources
No additional resources available
Lex Products Pagoda RV Box Specs
| Rating |
50 A, 1 Phase, 125/250 VAC
|
| Inputs/Outputs |

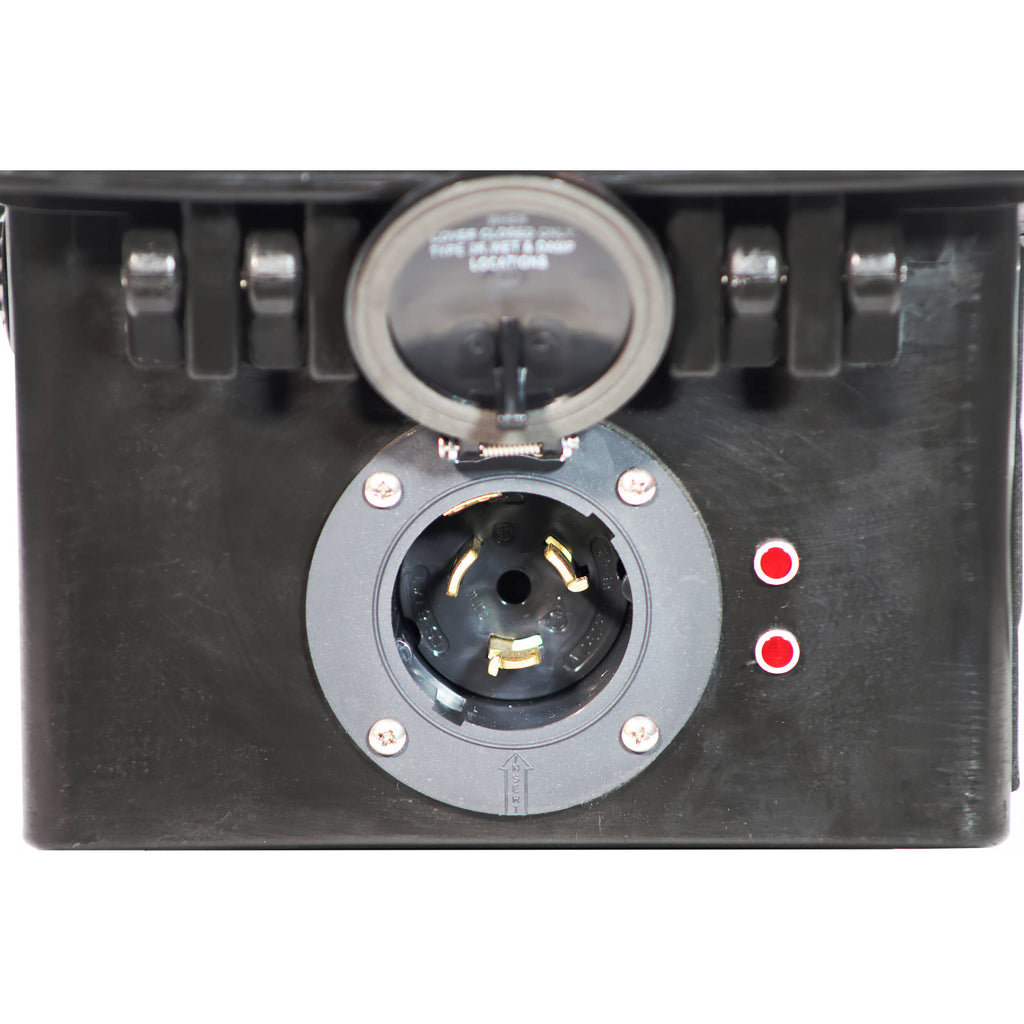

1x California Style AC Power Input (50 A)
1x NEMA 14-50 AC Power Output (50 A) 1x NEMA 5-20 AC Power Output (125 VAC, 60 Hz at 20 A) 2x NEMA TT-30 AC Power Output (125 VAC, 60 Hz at 30 A) |
| Overcurrent Protection |
1x 50 A Circuit Breaker
2x 30 A Circuit Breaker 1x 20 A Circuit Breaker |
| Feed Thru |
No
|
| Environmental Rating |
NEMA Type 3R (Outdoor Use)
|
| Certifications |
cULus
|
| Materials |
Rubber (Housing)
|
| Dimensions |
11.5 x 8.5 x 8.5" / 29.2 x 21.6 x 21.6 cm
|
| Weight |
16 lb / 7.3 kg
|
