Description

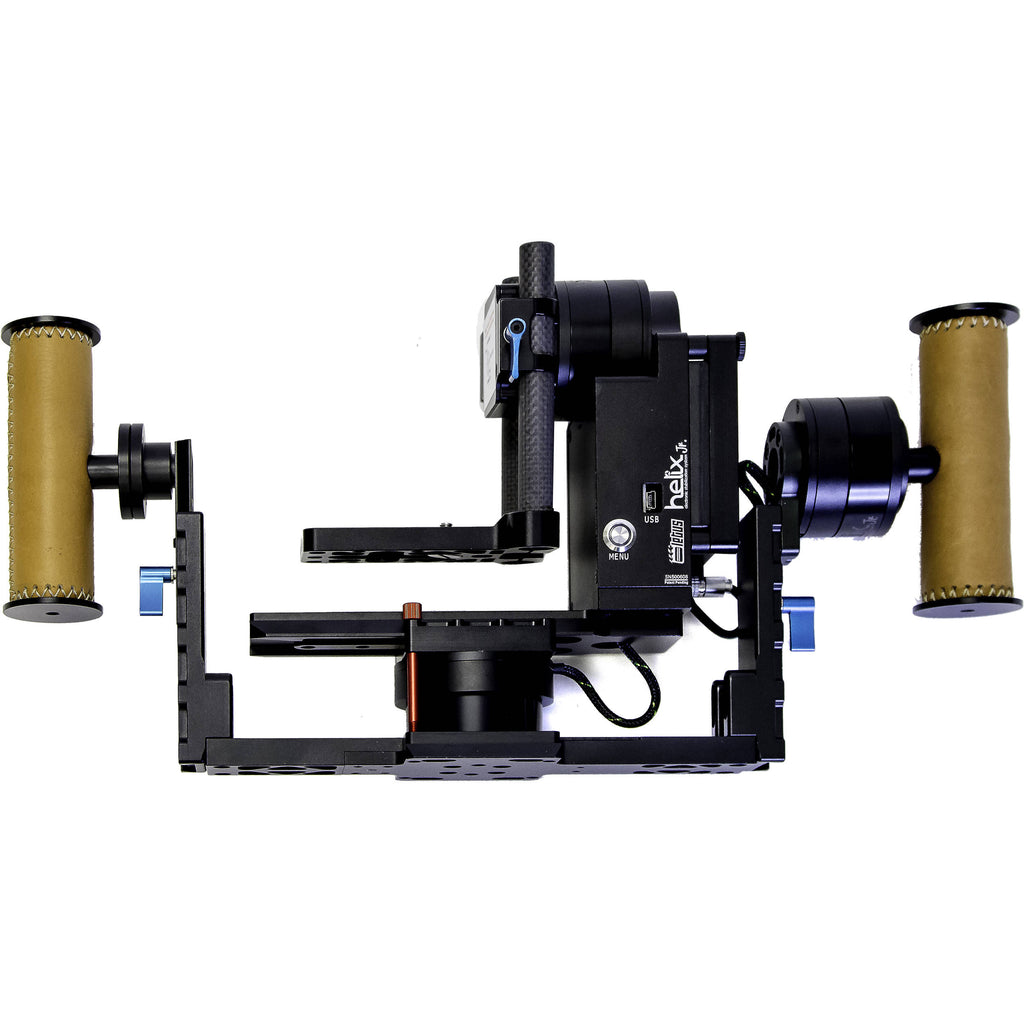

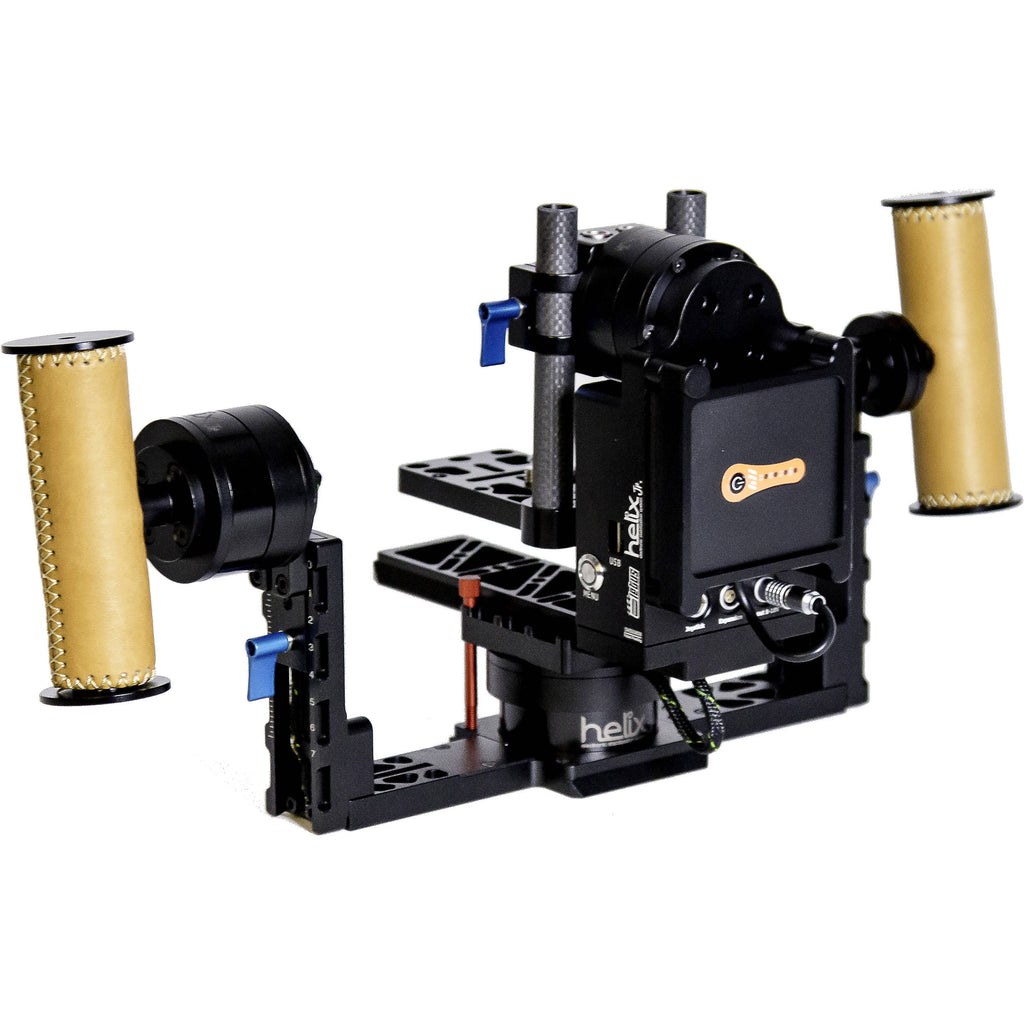

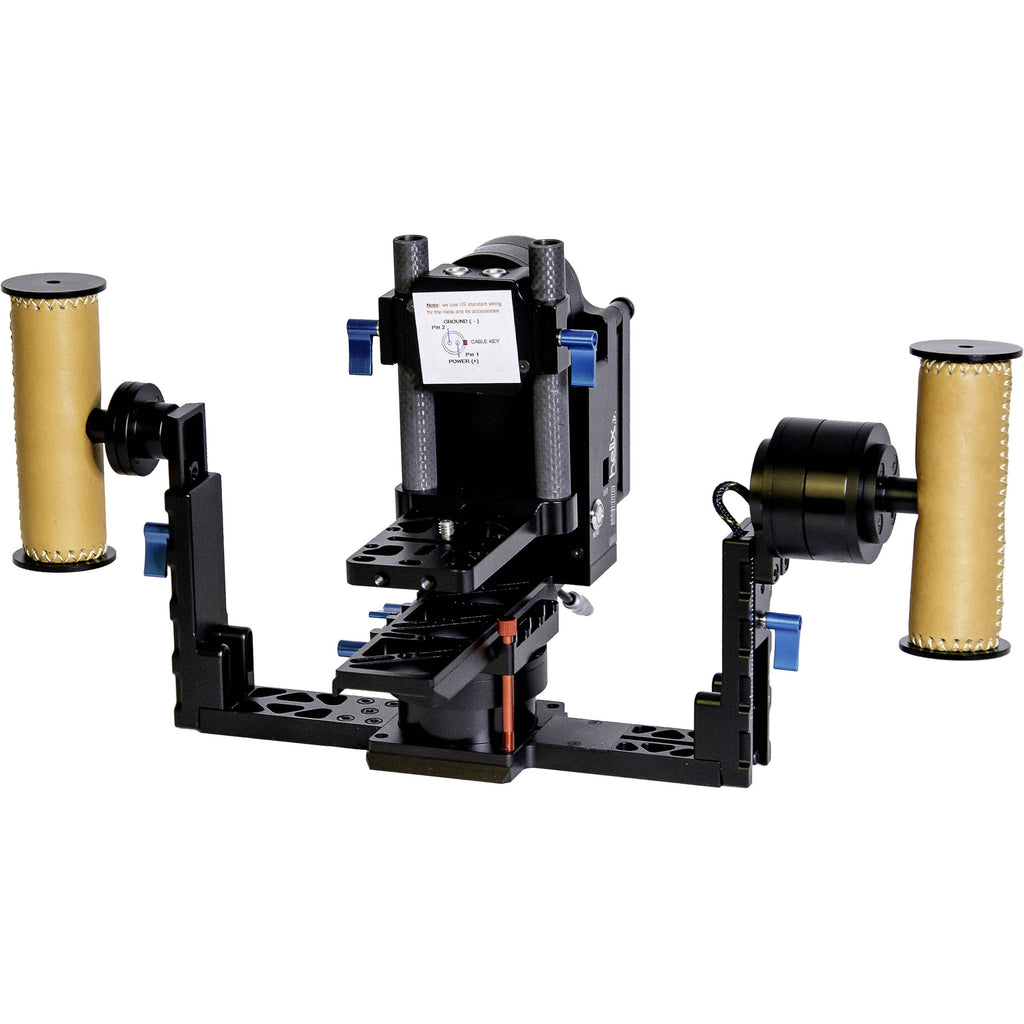

The Letus35 Helix Jr. is a 3-axis motorized gimbal stabilizer designed for small and mid-size cameras, such as DSLRs and mirrorless cameras, and is suitable for all productions with up to 12 lb payloads. This model comes with left and right handgrips for handheld operation. The gimbal also comes with Helix Bluetooth and Wi-Fi modules. The Bluetooth module allows you to wirelessly interact with the Helix Jr. from a Mac/Windows computer or Android app, helping you to customize settings. The Wi-Fi module allows you to utilize the Letus Helix iOS app, which you can download for free from the App Store. You can also change follow speed, eliminate residual vibrations, switch between joystick and RC controls, and change the function of the menu button. The RC module enables you to remotely control the Helix Jr. using a compatible Spektrum controller such as the DX7 (sold separately).
The Helix Jr. balances around the optical center of your camera, providing you with the ability to execute nodal point rolls. It also minimizes the movement of the image sensor, allowing you to capture stabilized shots. By adjusting a single axis forward or backward, you can easily-re-balance the gimbal after a lens swap. Thanks to the flat-bottom design, the Helix Jr. can be set up on the ground or a flat surface between shots. The frame sits under the camera and the handgrips can be attached in line with the camera.
The Helix Jr. runs on three axes via a pan motor, tilt motor, and roll motor. When configured for handheld-mode, it can be used in standard handheld mode or in suitcase mode. Suitcase mode offers 180° rotation of the Helix Jr. and allows you to hold it with a one handgrip. In such a situation, the camera can also be rotated to compensate for the 180° repositioning and the handgrip can be rotated to function as a typical top handle. The Suitcase mode also offers tilt functionality during one-handed operation and also supports hand-offs for second operators.
The Helix Jr. is powered by a 2600mAh JuiceBox Jr. lithium-ion battery and a charger. The onboard battery indicator will keep you informed of remaining battery life.
Note: Helix Jr. is wired according to US standards. Any 3rd-party power accessories must be compatible.
- Key Features
-
- Motorized 3-axis gimbal stabilizer designed for DSLRs and mirrorless cameras
- Compact and lightweight version of the original Helix
- Optically-centered design - balances around the optical center of the camera
- Optical centering minimizes sensor movement and helps with image stabilization
- 12 lb payload
- Quick re-balancing after lens swaps by simple adjustment of a single axis
- Flat-bottom design allows placement on the ground or other flat surface between shots
- The frame and handgrips are positioned leveled with the camera, instead of overhead
- Convertible to suitcase mode for tilt functionality in one-handed operation
- Battery and charger included
- Configuration
-
- Handheld-Mode Model
Standard model with left and right handgrips for handheld operation
Bluetooth Module
Allows wireless settings customization from a computer or Android app
Wi-Fi Module
Allows you to use the Letus Helix iOS app (downloadable for free from the App Store) over Wi-Fi
RC Module
Control the Helix Jr. remotely using a compatible Spektrum controller (sold separately)
- Handheld-Mode Model
- Encoders
-
- Prevent motors from losing their position (skipping steps) when bumped or moved vigorously
- Help in increasing the battery life
- Increases torque that helps you to capture more panning shots
- Helps you to physically adjust the camera's position by hand and have the gimbal maintain this position
- Improves stabilization precision
Letus35 Helix Jr. specs
| Material | Magnesium frame, carbon fiber rods |
| Payload | 12 lb (5.4 kg) |
| Included Battery | Lithium-ion 14.8 V, 2600 mAh Built-in protection circuit Weight: 0.5 lb (227 g) |
| Connections | 2 x 2-pin LEMO (input/output) 1 x 6-pin LEMO port (for optional joysticks) |
| Input Power | 8 to 18 V |
| Mount Type | 1/4"-20 camera screw |
| Dimensions | 16" (40 cm) span handle to handle (handheld mode) |
| Weight | 5.75 lb (2.61 kg), with battery installed (handheld mode) |
| Packaging Info | |
|---|---|
| Package Weight | 10.45 lb |
| Box Dimensions (LxWxH) | 19.0 x 11.3 x 5.0" |
