Description

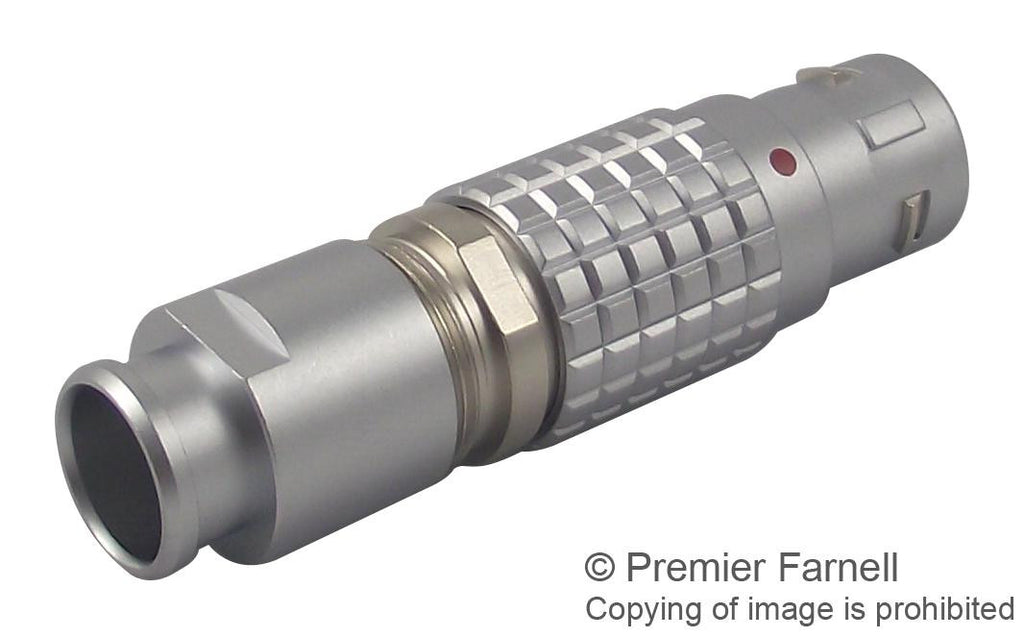

The FGG.2B.303.CLAD92Z is a 3-way Circular Connector, 2B series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with three solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 1B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 17A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 3.5mR Maximum resistance
- 1.6mm (0.063") Contact diameter
- 360° Screening for full EMC shielding
- 3 Low voltage insert configuration
Applications
Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 3Contacts |
| Contact Plating | Gold |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | 2B Series |
| Contact Material | Brass |
| Circular Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | FGG.2B.303.CLAD92Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
