Description

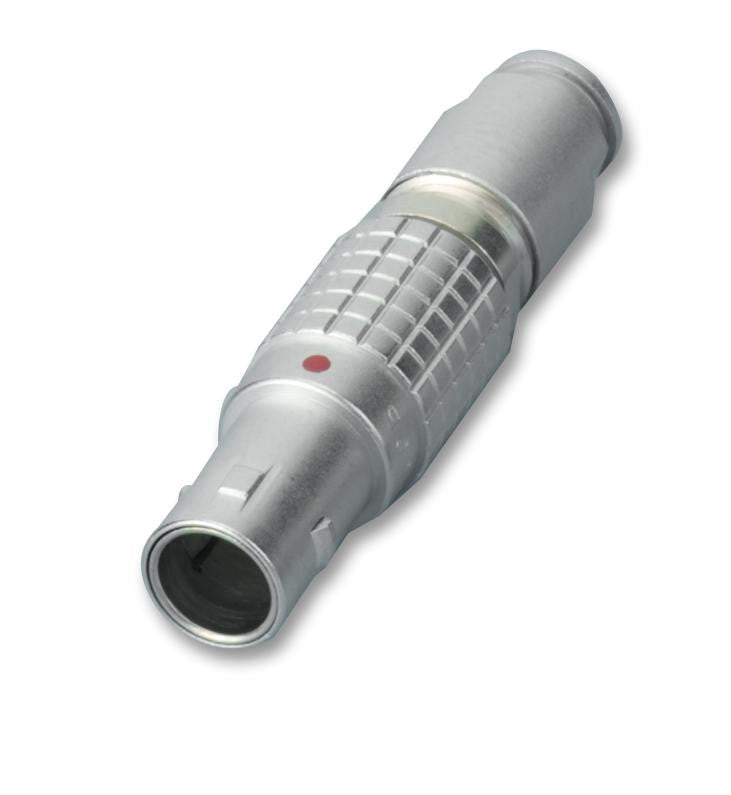

The FGG.1B.310. CLAD62Z from Lemo is a 1B series multipole circular straight plug connector with 10 pin contacts. It has keying system for connector alignment. It also has cable collet and nut for fitting bend relief. This circular connector is specifically designed for indoor applications.
- Rated current of 2.5A
- Chrome plated brass outer shell and collet nut
- Nickel plated brass latch sleeve and mid pieces
- PEEK (polyetheretherketone) insulation
- UL recognised and CE marked
- Cable fixing diameter from 5.3mm to 6.2mm
- IP50 protection index (mated)
- High temperature range from -55�C to 250�C
- Maximum solid and stranded conductor size is 22AWG (0.34mm�)
- Push-pull self latching connection system
Applications
Industrial
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 10Contacts |
| Contact Plating | - |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | 1B Series |
| Contact Material | - |
| Circular Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | FGG.1B.310.CLAD62Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
