Description

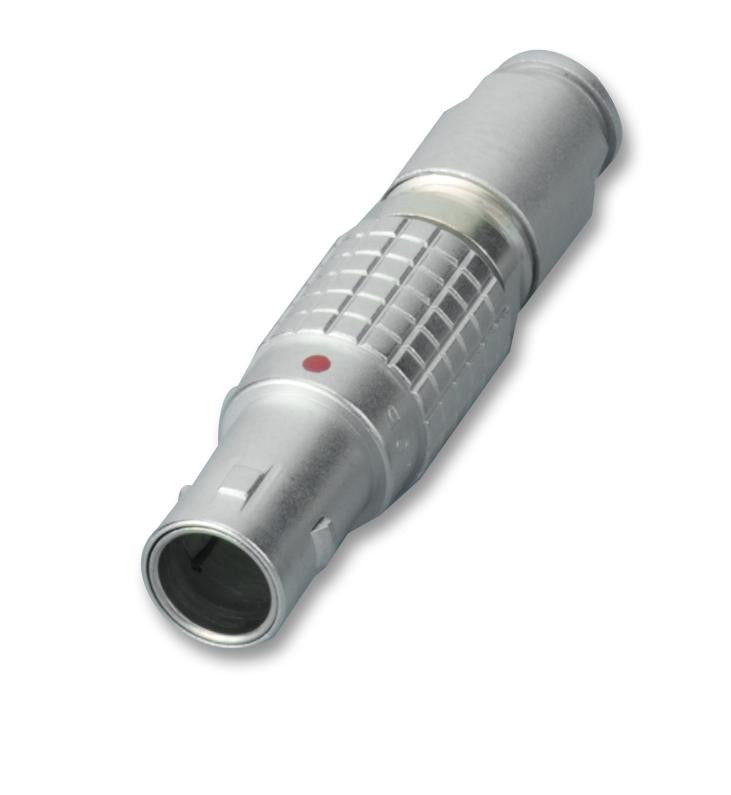

The FGG.1B.307. CLAD62Z from Lemo is a 1B series multipole circular straight plug connector with 7 pin contacts. It has keying system for connector alignment. It also has cable collet and nut for fitting bend relief. This circular connector is specifically designed for indoor applications.
- Rated current of 7A
- Chrome plated brass outer shell and collet nut
- Nickel plated brass latch sleeve and mid pieces
- PEEK (polyetheretherketone) insulation
- UL recognised and CE marked
- Cable fixing diameter from 5.3mm to 6.2mm
- IP50 protection index (mated)
- High temperature range from -55�C to 250�C
- Maximum solid and stranded conductor size is 22AWG (0.34mm�)
- Push-pull self latching connection system
Applications
Industrial
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 7Contacts |
| Contact Plating | - |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | 1B Series |
| Contact Material | - |
| Circular Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | FGG.1B.307.CLAD62Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
