| ₹ 3034.33 includes GST and import duties. | |
| B2B customers can avail ₹ 462.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

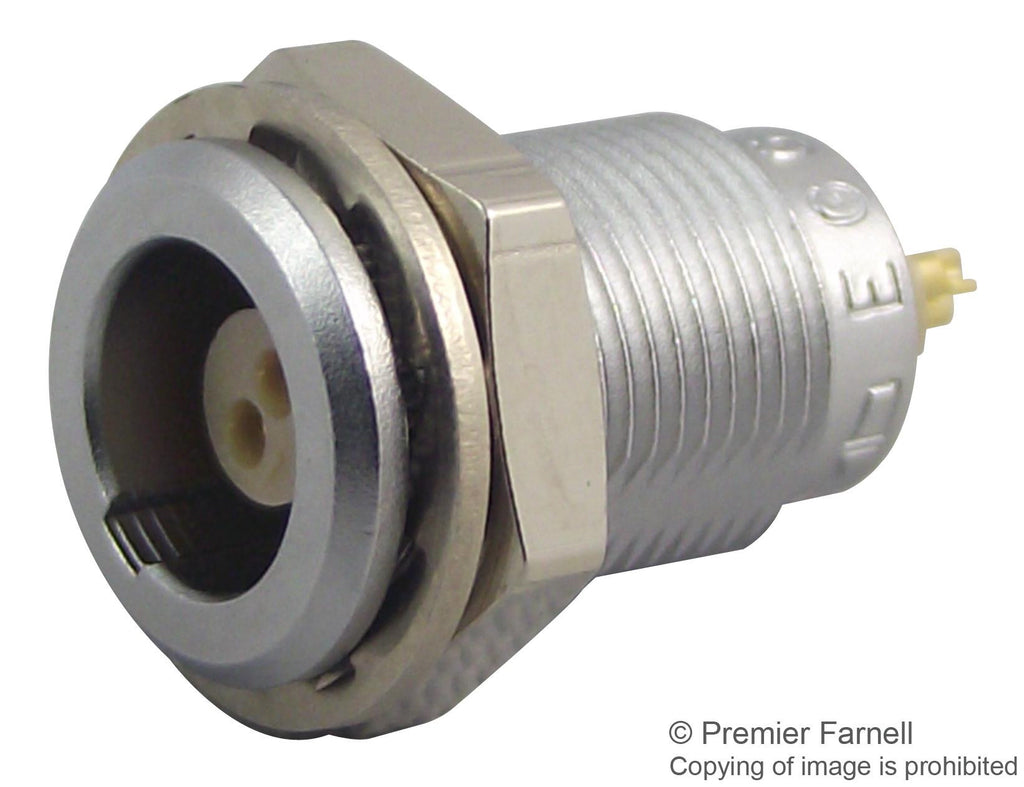

The EGG.00.302.CLL is a 2-way Circular Connector, 00 series, fixed receptacle, nut fixing. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with two solder contacts. Chrome-plated brass shell and collect nut, nickel-plated brass latch sleeve and mid pieces. The modular design of the 00 series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 5A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 8.7mR Maximum resistance
- 0.5mm (0.02") Contact diameter
- 0.5mm (0.02") Contact diameter
- 2 Low voltage insert configuration
Applications
Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 2Contacts |
| Contact Plating | Gold |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Panel Mount Receptacle |
| Product Range | 00 Series |
| Contact Material | Bronze |
| Circular Contact Type | Solder Socket |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | EGG.00.302.CLL |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2973.64 |
| 3-5 | ₹ 2943.3 |
| 5-10 | ₹ 2882.61 |
| 10+ | ₹ 2821.93 |
Bulk discount will be automatically applied during checkout based on quantity.
