| ₹ 19118.63 includes GST and import duties. | |
| B2B customers can avail ₹ 2915.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
The LF 505-S is a Current Transducer for the electronic measurement of DC, AC, pulsed with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). Closed loop (compensated) current transducer using the Hall effect. Isolated plastic case recognized according to UL94V-0. High immunity to external interference.
- Excellent accuracy
- Very good linearity
- Low temperature drift
- Optimized response time
- Wide frequency bandwidth
- No insertion losses
- Current overload capability
Applications
Motor Drive & Control, Power Management, Test & Measurement, Maintenance & Repair, Industrial
Warnings
Risk of electrical shock, when operating the transducer, certain parts of the module can carry hazardous voltage. Ignoring this warning can lead to injury and/or cause serious damage.
Product details
| Sensor Output | Closed Loop |
| Response Time | - |
| Current Measuring Range AC | -1.2kA to 1.2kA |
| Supply Voltage DC Max | - |
| Product Range | LF 305-S |
| Supply Voltage DC Min | - |
| Accuracy % | 0.6% |
| Current Measuring Range DC | -1.2kA to 1.2kA |
Other details
| Brand | LEM |
| Part Number | LF 505-S |
| Quantity | Each |
| Technical Data Sheet EN |  |

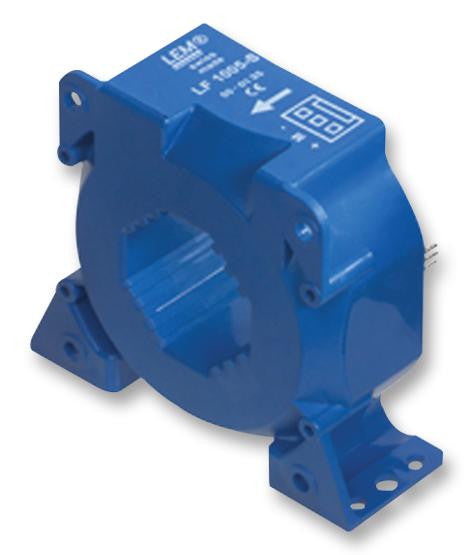

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 18736.26 |
| 3-5 | ₹ 18545.07 |
| 5-10 | ₹ 18162.7 |
| 10+ | ₹ 17780.33 |
Bulk discount will be automatically applied during checkout based on quantity.
