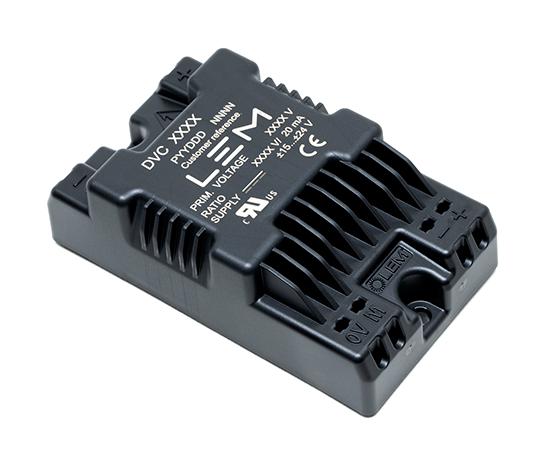

LEM DVC 1000 Voltage Transducer, 30 mA, 15 to 24 V, 1.7 %, 0.2 % Linearity, -40 to 85 °C, 51 mm, DVC Series

DVC 1000 is a voltage transducer designed for the electronic measurement of voltage�DC, AC, pulsed, etc.�with galvanic separation between the primary and secondary circuits. Applications include AC variable speed and servo motor drives, static converters for DC motor drives, battery-supplied applications, uninterruptible power supplies, power supplies for welding applications, single or three-phase inverters, auxiliary converters, and substations. It is suitable for industrial and railway applications, both in fixed installations and onboard systems. Standards are EN 50155: 2021, EN 50121-3-2: 2016, IEC 62497-1: 2010, IEC 61000-6-2: 2016, IEC 61000-6-4: 2016, IEC 61800-3: 2005, IEC 61010-1: 2010, IEC 61800-5-1: 2007, IEC 62109-1: 2010, UL 508: 2018.

• Bipolar and insulated measurement up to 1500V, current output
• Panel and DIN rail mounting, push-in connections
• Built-in device, ingress protection rating IP 20, 5 years warranty
• Low consumption and low losses, compact design
• Very low sensitivity to common mode voltage variations
• Excellent accuracy (offset, sensitivity, linearity), fast delay time
• Low temperature drift, high immunity to external interferences
• Frequency bandwidth is 35KHz (-3dB) typ, 20KHz (-1dB) typ
• Total primary power loss is 0.08W (at UP N) typ
• Ambient operating temperature range from -40 to 85°C
