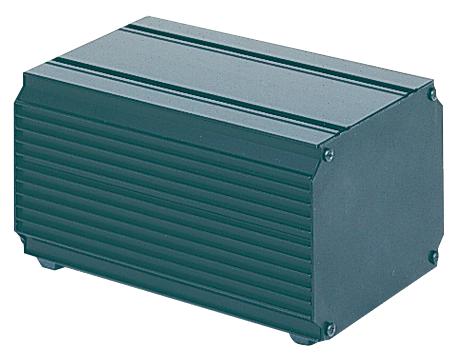

The HSK160 is a grey metal Heat-sink Enclosure made of aluminium. It is a free-standing or 3U rack mount enclosure achieved by combining two interlocking channels with end panels. The Eurocard circuit boards can slide into internal card guides enabling power devices to be attached to the heat-sink section of the vertical wall with an M3 screw and half nut. Two boards can be mounted within the enclosure and a standard spacer can be used to support heavy components.
- No need for drilling
- Low thermal impedance heat-sink
- Suitable as heat sink enclosure or as 3U rack plug in unit
- Simple fitting of power devices
- Enclosure gives RFI protection
- Accommodates Toroidal transformer rated up to 100VA
- Internal and external M4 nut T slots
Applications
Industrial
Product details
| Enclosure Type |
Small |
| Enclosure Material |
Extruded Aluminium |
| External Height - Metric |
83mm |
| External Width - Metric |
111mm |
| External Depth - Metric |
160mm |
| IP Rating |
- |
| Body Colour |
Black |
| NEMA Rating |
- |
| External Height - Imperial |
3.27" |
| External Width - Imperial |
4.37" |
| External Depth - Imperial |
6.3" |
| Product Range |
HSK Series |
Other details
| Brand |
LAWTRONICS |
| Part Number |
HSK160 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
