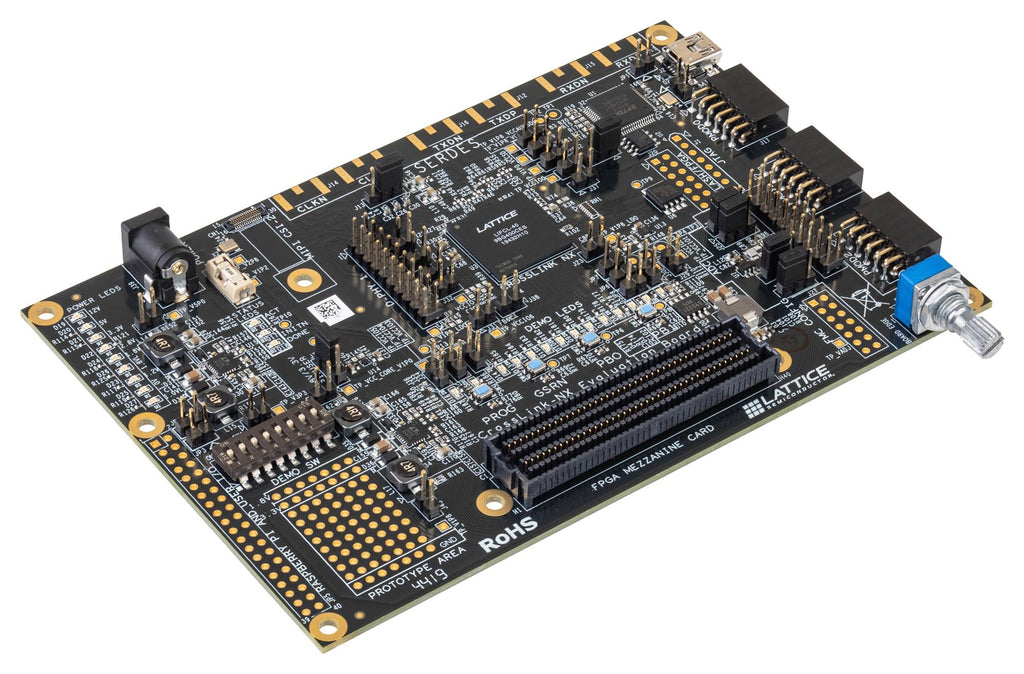

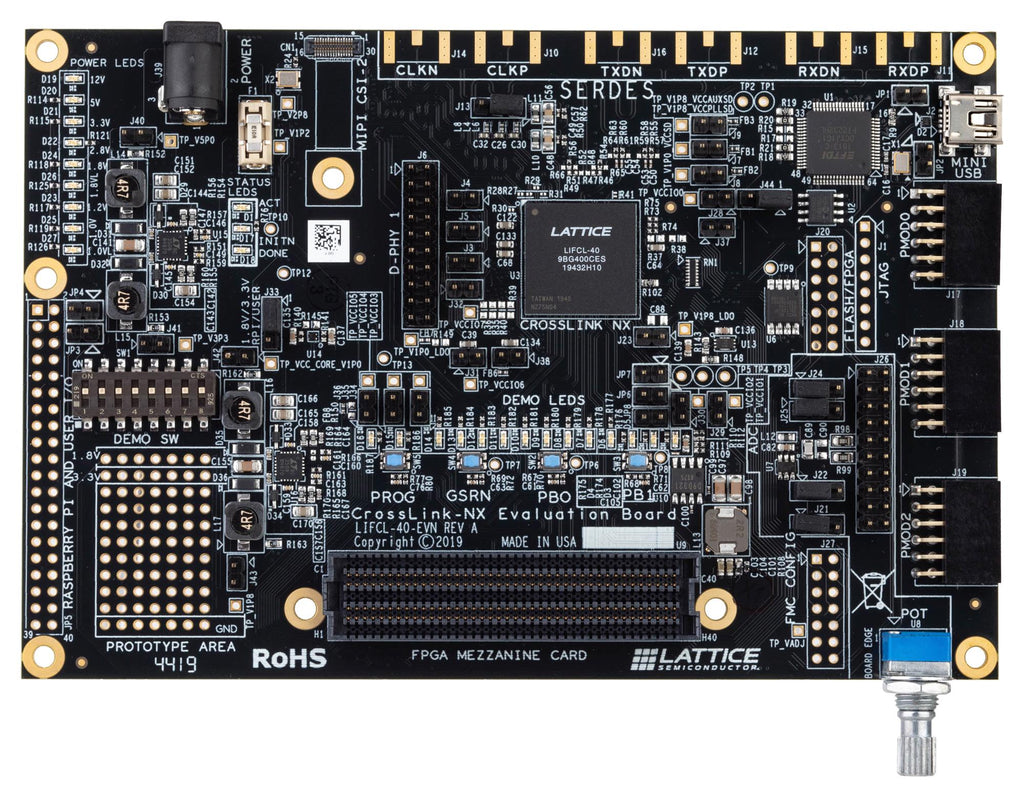

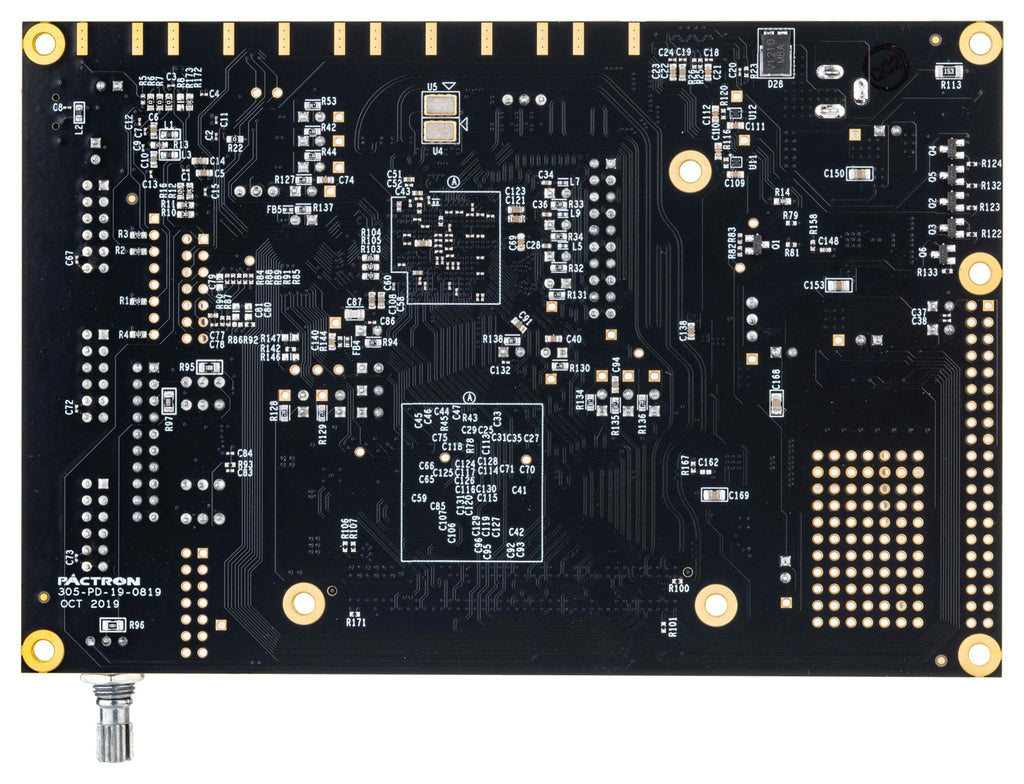

CrossLink�-NX evaluation board allows designers to investigate and experiment with the features of the CrossLink-NX Field Programmable Gate Array (FPGA). The features of the CrossLink-NX evaluation board can assist engineers with the rapid prototyping and testing of their specific designs.
- CrossLink-NX FPGA (LIFCL-40-9BG400C)
- USB-B connection for device programming and Inter-Integrated Circuit (I2C) utility
- On-board boot flash - 128Mbit SPI flash with quad read feature
- 8 input DIP switches, 4 push buttons, 3 status LEDs and 14 LEDs for demo purposes
- Multiple reference clock sources
- Lattice Radiant� software programming support
- Potentiometer for ADC test
Contents
CrossLink-NX evaluation board pre-loaded with demo design, USB-A to USB-B (mini) cable for programming FPGA via a PC, 12V AC/DC power adapter and international plug adapters, Quick start guide, Lattice radiant software download information.
Product details
| Silicon Manufacturer |
Lattice Semiconductor |
| No. of Bits |
- |
| Silicon Family Name |
CrossLink-NX |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
LIFCL-40-9BG400C |
| Kit Contents |
CrossLink-NX Eval Board Pre-loaded w/Demo Design, 12V AC/DC Adapter, USB Cable, Quick Start Guide |
| Product Range |
- |
Other details
| Brand |
LATTICE SEMICONDUCTOR |
| Part Number |
LIFCL-40-EVN |
| Quantity |
Each |
| User Manual EN |
 |
