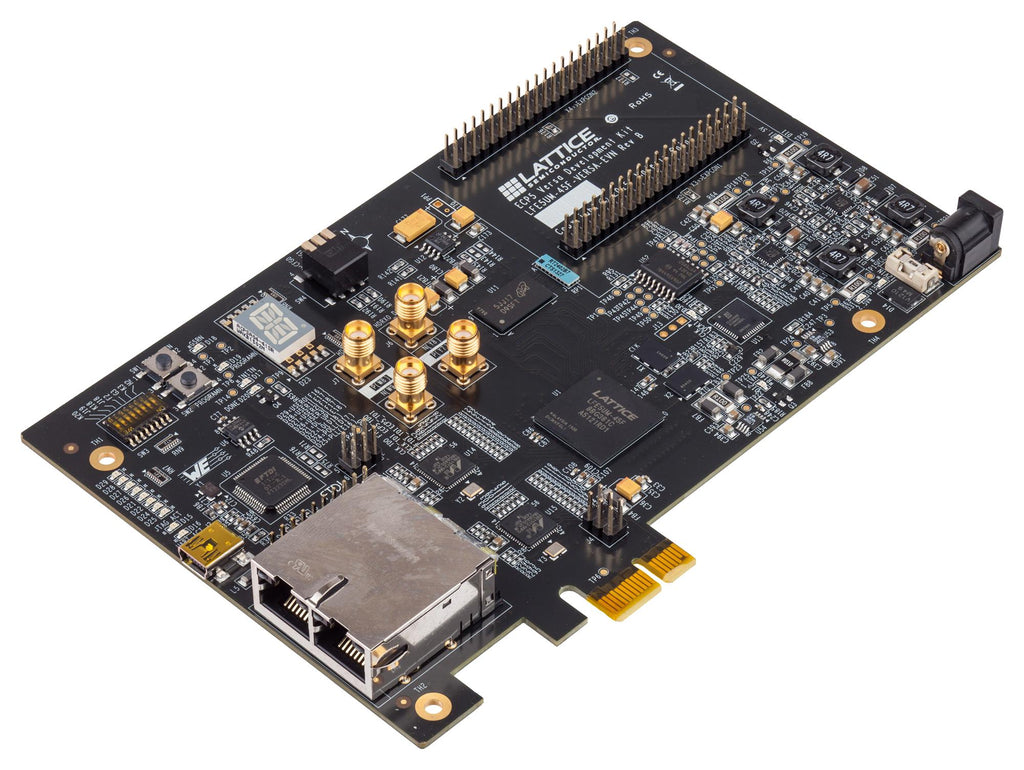

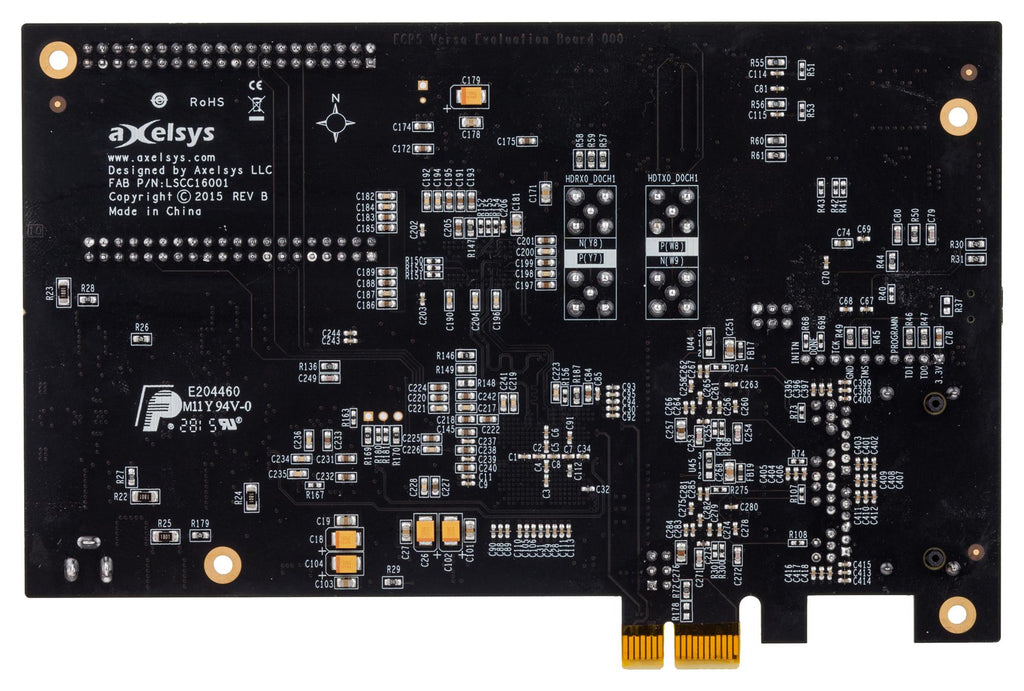

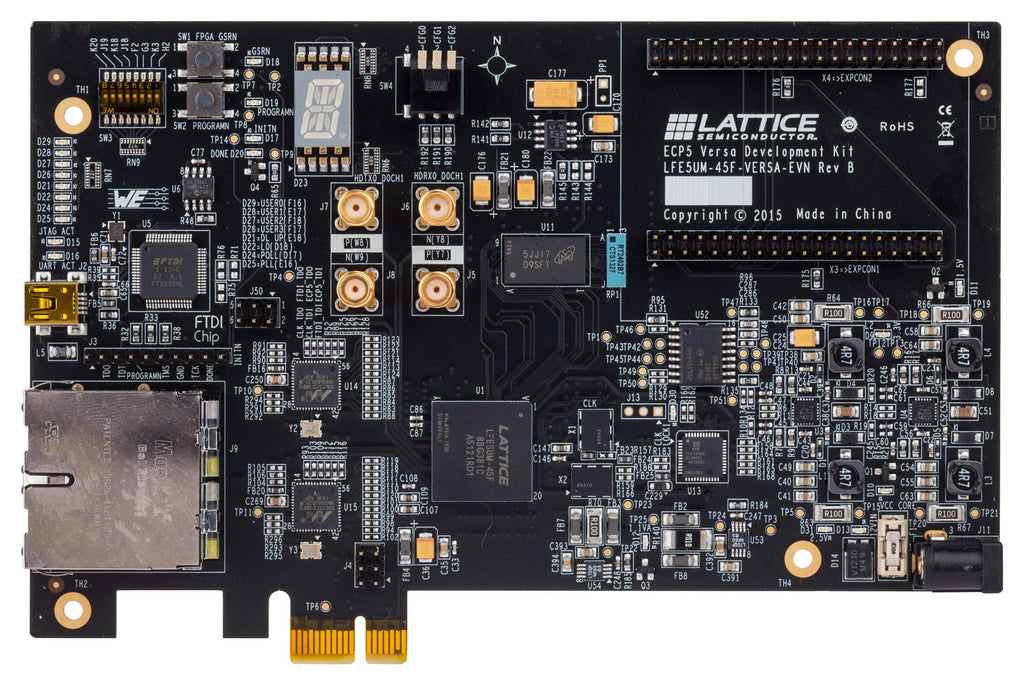

ECP5� versa development board allows designers to investigate and experiment with the features of the ECP5 Field-Programmable Gate Array. The features of the ECP5 Versa Development Board can assist engineers with rapid prototyping and testing of their specific designs. The ECP5 Versa Development Board is part of the ECP5 Versa Development Kit.
- Half-length PCI Express form-factor allows demonstration of PCI Express x1 interconnection
- Electrical testing of one full-duplex SERDES channel via SMA connections
- USB-B connection for UART and device programming
- Two RJ45 interfaces to 10/100/1000 Ethernet to RGMII
- On-board Boot Flash-128M Serial SPI Flash
- DDR3-1866 memory components (64Mb/x16)
- Expansion mezzanine interconnection for prototyping
- 14-segment alpha-numeric display
- Switches, LEDs and displays for demo purposes
- Diamond® programming support, on-board reference clock sources
Contents
ECP5 versa development board, USB-A to USB-B (mini) cable for FPGA programming via a PC, 12V AC/DC power adapter and international plug adapters, Quickstart guide.
Product details
| Silicon Manufacturer |
Lattice Semiconductor |
| No. of Bits |
- |
| Silicon Family Name |
ECP5 |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
LFE5UM-45F-8BG381C |
| Kit Contents |
Development Board LFE5UM-45F-8BG381C, USB-B to USB-A Cable |
| Product Range |
- |
Other details
| Brand |
LATTICE SEMICONDUCTOR |
| Part Number |
LFE5UM-45F-VERSA-EVN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
