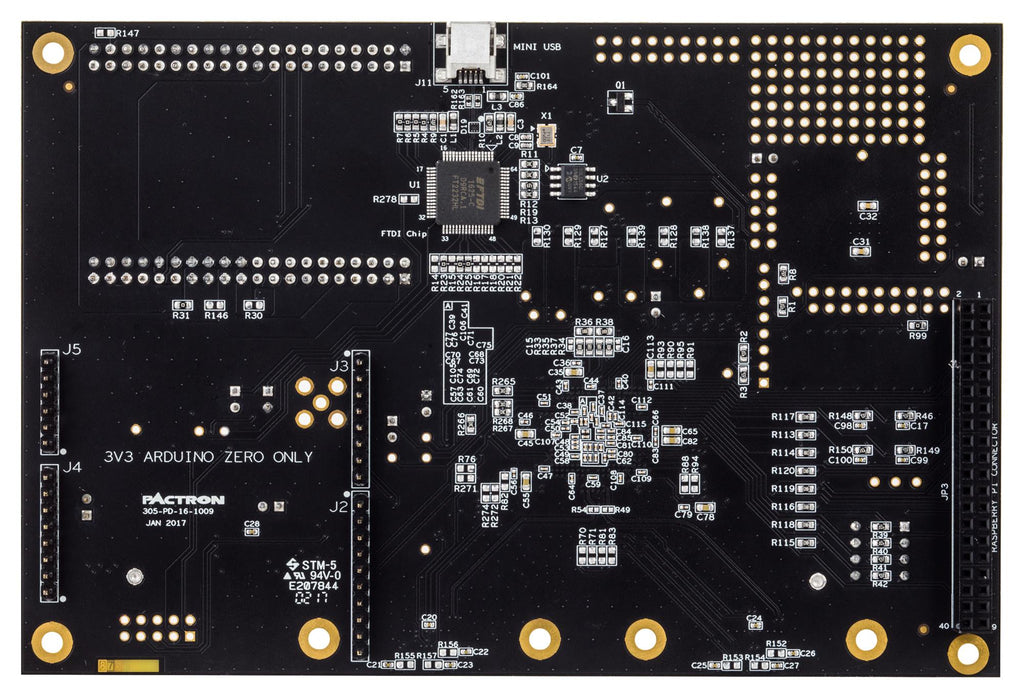

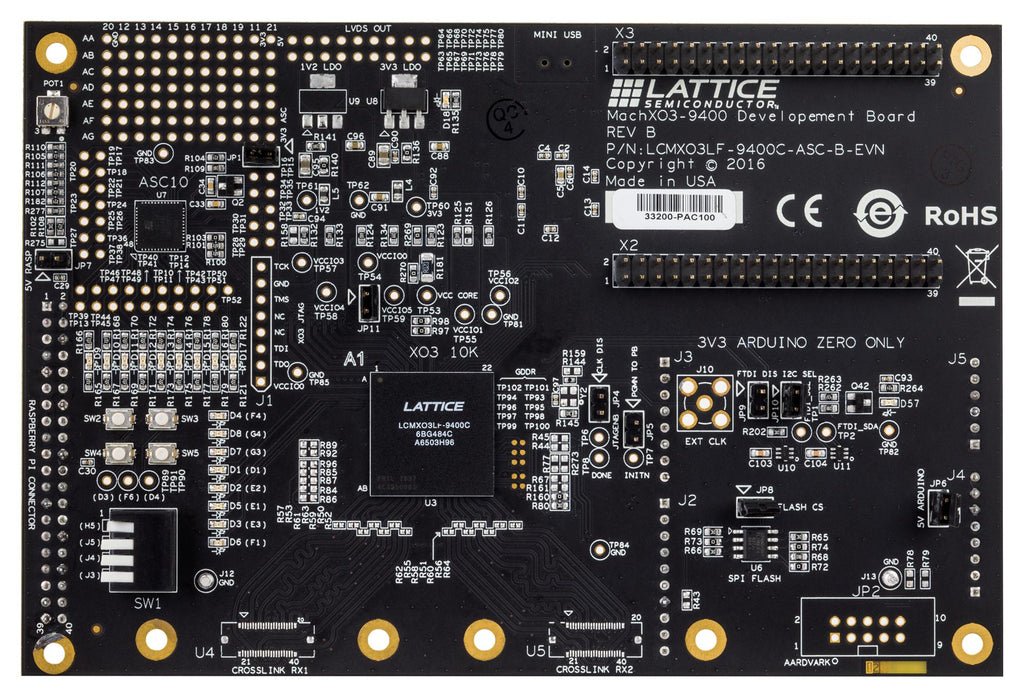

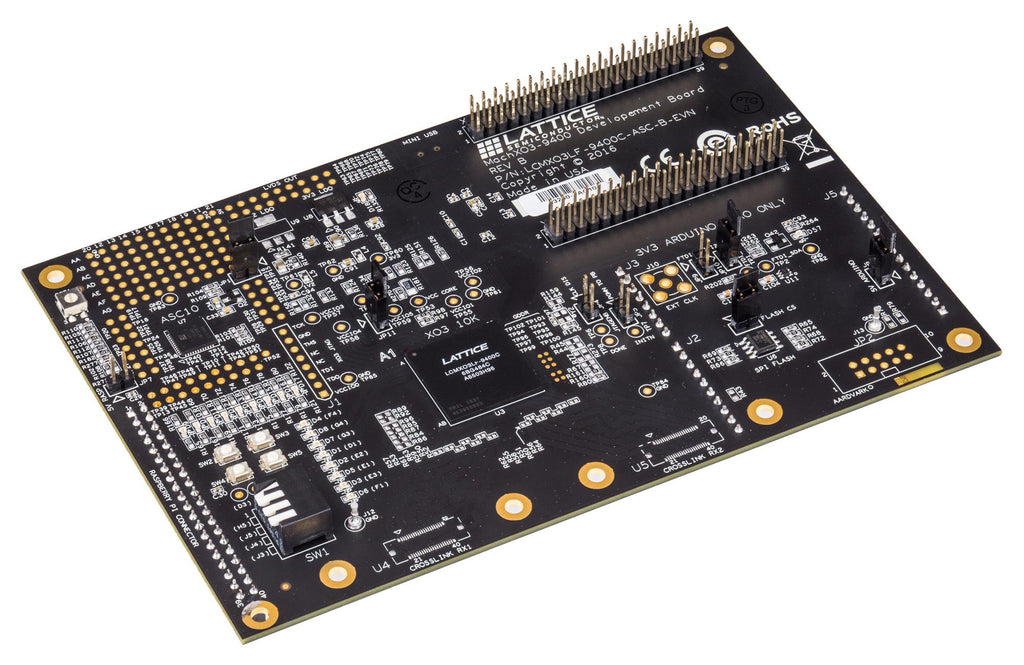

MachXO3-9400� development board allows designers to investigate and experiment with the features of the MachXO3 complex programmable logic device (CPLD) and the L-ASC10 (L-Analog Sense and Control 10 rails) hardware management expander. The features of the MachXO3-9400 Development Board can assist engineers with the rapid prototyping and testing of their specific designs.
- MachXO3LF-9400C-484caBGA and L-ASC10 devices with multiple prototyping and breakout areas
- Arduino and Raspberry Pi Development Board Connector plus IO Expansion Demos for each processor
- LEDs and switches for demos and evaluation
- On-board FTDI device supports JTAG programming and I2C Interfacing over USB cable
- Footprint support for CrossLink I/O Link Connectors and ASC Expansion board connectors
Contents
MachXO3LF-9400 development board, Pre-loaded demo, Mini USB cable, Quickstart guide.
Product details
| Silicon Manufacturer |
Lattice Semiconductor |
| No. of Bits |
- |
| Silicon Family Name |
MachXO3 |
| Core Architecture |
CPLD |
| Core Sub-Architecture |
- |
| Silicon Core Number |
MACHXO3LF-9400C-484CABGA |
| Kit Contents |
MachXO3LF-9400 Development Board, Pre-loaded Demo, Mini USB Cable, QuickStart Guide |
| Product Range |
- |
Other details
| Brand |
LATTICE SEMICONDUCTOR |
| Part Number |
LCMXO3LF-9400C-ASC-B-EVN |
| Quantity |
Each |
| User Manual EN |
 |
