LATTICE SEMICONDUCTOR LCMXO3L-6900C-S-EVN Starter Kit, MACHXO3L, FPGA

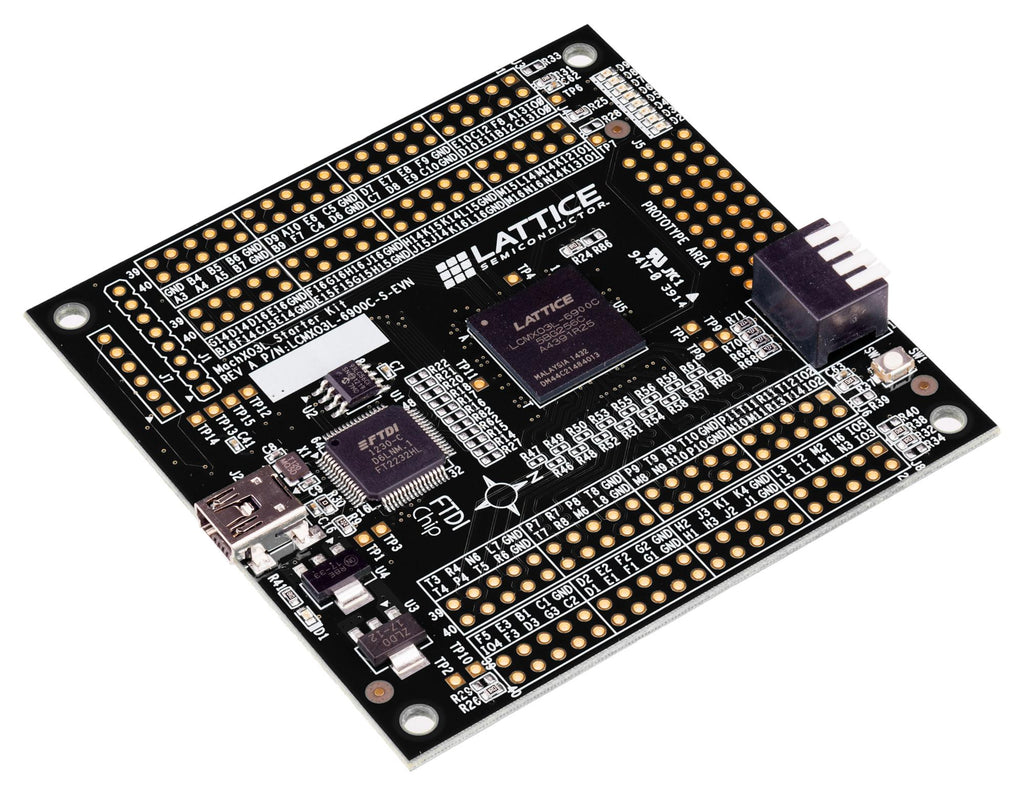

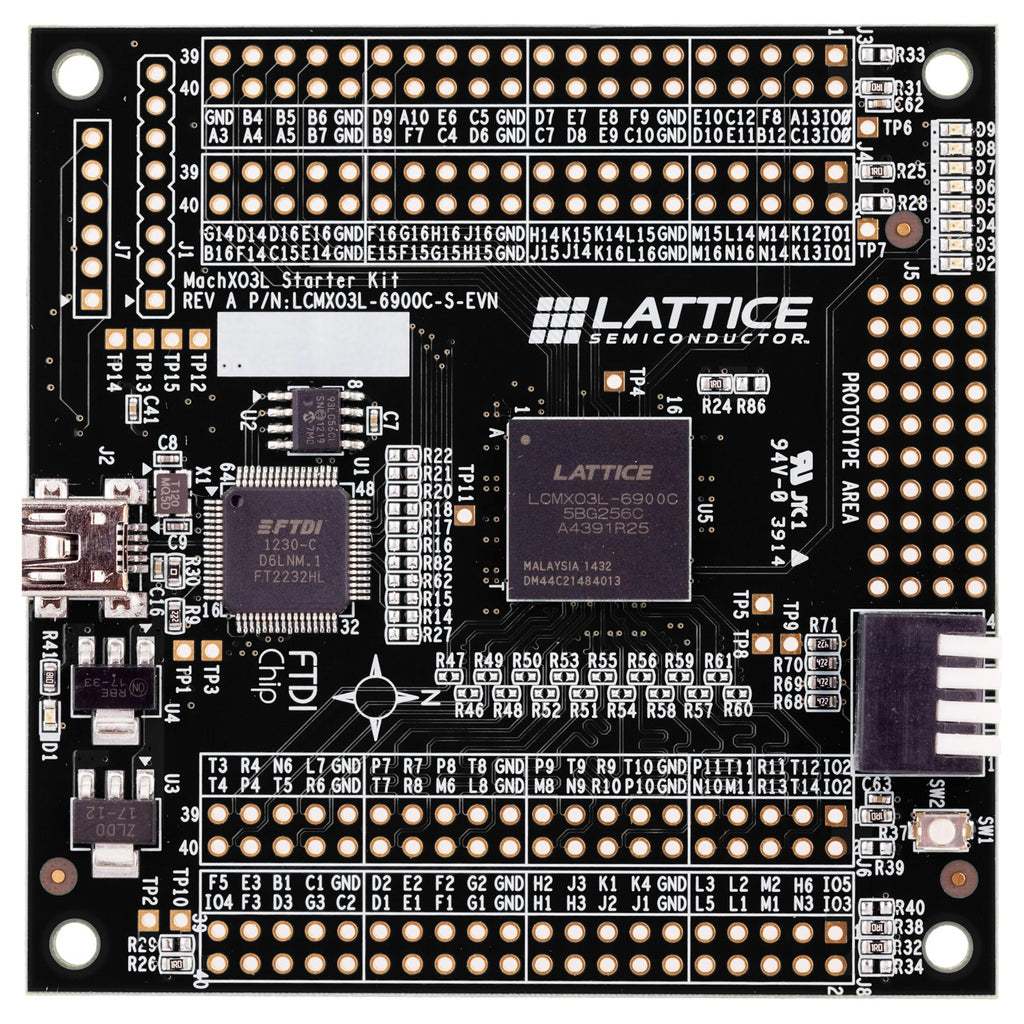

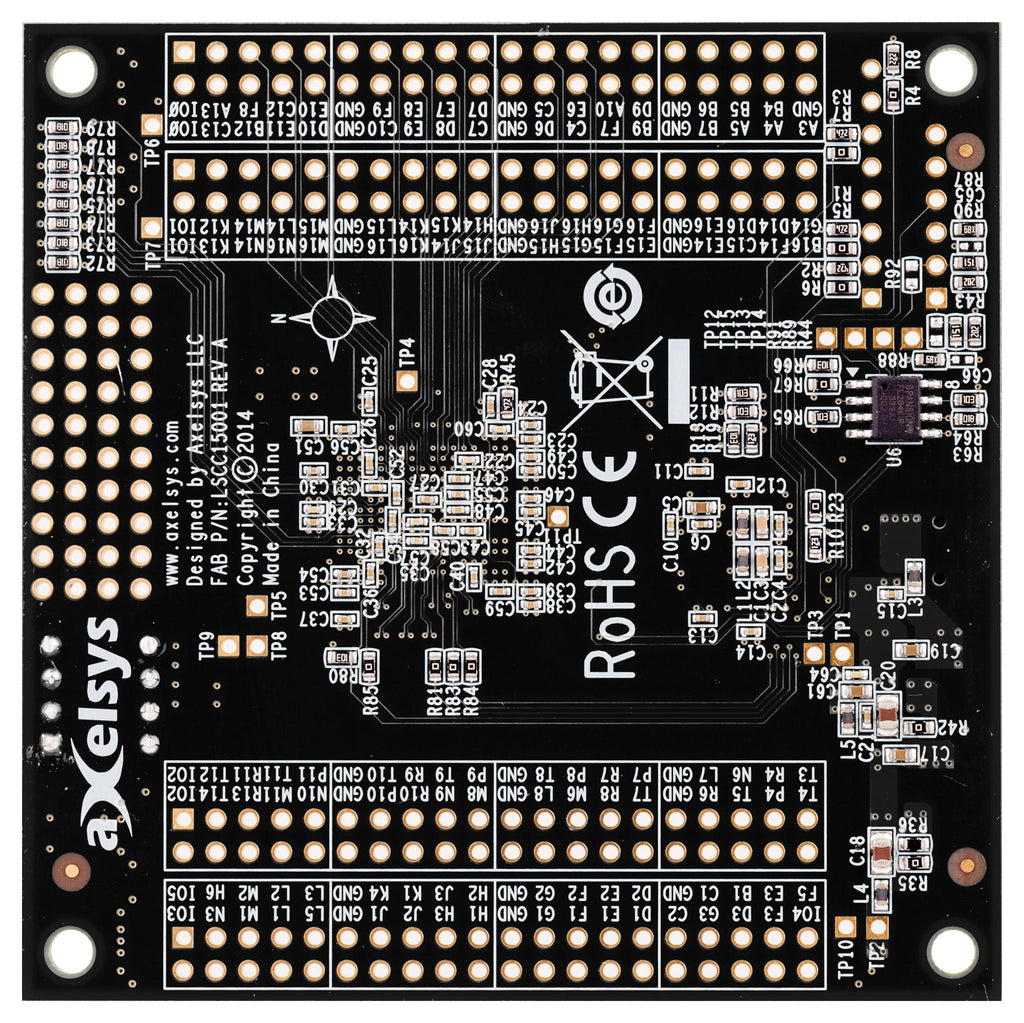

MachXO3L starter kit is a basic breakout board to allow simple evaluation and development of MachXO3L based designs. It has the LCMXO3L-6900C-5BG256C device on it. It is significantly smaller in size and lower cost than the MachXO3L DSI (LCXO3L-DSI-EVN) or SMA (LCXO3L-SMA-EVN) breakout boards while offering common basic functionalities - a good way to start the evaluation of MachXO3L. A SPI Flash is available on this Starter Kit board for evaluating external boot or dual-boot functional capabilities. The MachXO3L DSI breakout board is recommended for MIPI DSI and CSI2 I/O evaluation and the MachXO3L SMA breakout board is recommended for high-speed differential I/O evaluation. This Starter Kit board is a 3 x 3 inch form factor, and features a USB mini-B connector for power and programming, an LED array, and prototype area. It comes with a pre-loaded demonstration, a counter design that highlights use of the embedded MachXO3L oscillator and programmable I/Os configured for LED drive.

• MachXO3 FPGA - LCMXO3L-6900C-5BG256C
• USB Mini-B connector (program/power)
• Pre-programmed example design (available on latticesemi.com)
• Eight LEDs
• 4-position DIP switch
• 40-hole prototyping area
• Four 2 x 20 expansion header landing for general I/O, JTAG and external power
• 1 x 8 expansion header landing for JTAG, 1 x 6 expansion header landing for SPI/ I2C
• SPI Flash for external boot or dual boot
• 3.3V and 1.2V supply rails

Contents

MachXO3L breakout board, Pre-loaded demo, Mini USB cable, Quickstart guide.
