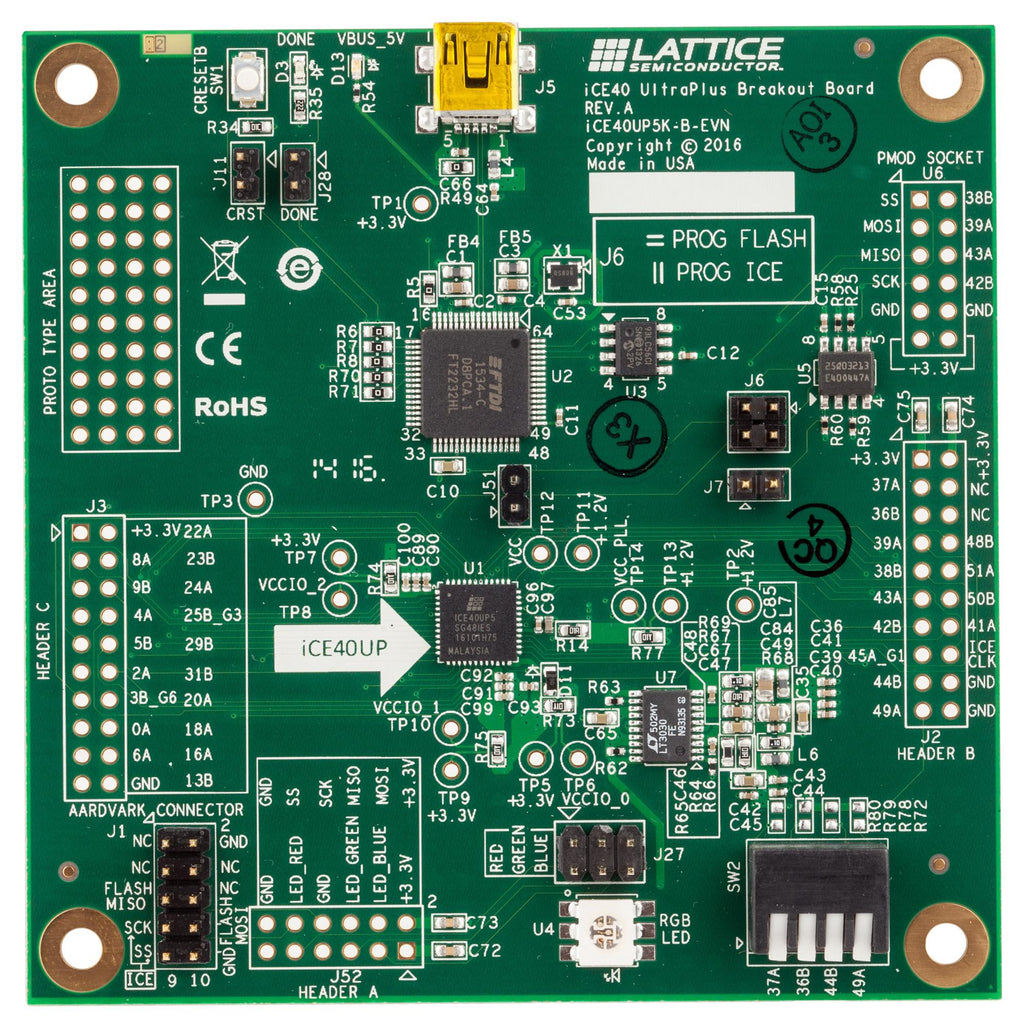

iCE40 UltraPlus breakout board enables designers to evaluate key connectivity features of the iCE40 UltraPlus FPGA. The breakout board brings out all I/Os and allows the FPGA to be programmed over a USB connector. Rapid prototyping of user functions provides access to all I/Os allows users to quickly implement solutions and confirm the design works as expected.
- iCE40 UltraPlus (iCE40UP5K) device in a 48-pin QFN package
- High-current LED output
- iCE40UP5K application based current measurements
- Standard USB cable for device programming
- Pre-loaded RGB LED Demo
- Software run GUI
- USB connector cable
Contents
iCE40 UltraPlus breakout board, USB-A to USB-B (mini) cable for FPGA programming via a PC.
Product details
| Silicon Manufacturer |
Lattice Semiconductor |
| No. of Bits |
- |
| Silicon Family Name |
iCE40 UltraPlus |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
iCE40UP5K-SG48 |
| Kit Contents |
iCE40 UltraPlus Breakout Board, USB-A to USB-B (Mini) Cable for FPGA Programming Via a PC |
| Product Range |
- |
Other details
| Brand |
LATTICE SEMICONDUCTOR |
| Part Number |
ICE40UP5K-B-EVN |
| Quantity |
Each |
| User Manual EN |
 |
