4-channel mixing speech synthesis LSI with a serial flash memory interface for sound data. It is equipped with an I2C interface. It adopts a HQ-ADPCM*1, 16bit D/A converter, and low-pass filter for high sound quality, and incorporates a 1.0W mono speaker amplifier for driving speakers directly. It is also equipped with a function to detect failure. The functions necessary for sound output are integrated into a single chip, so that sound functions can be realized simply by adding this LSI.
- 128Mbit serial flash memory
- Maximum sound production time of 5240s at fs=8.0KHz/2620s at fs =16.0KHz/1310s at fs =32.0KHz
- Edit ROM function, playback function
- Low-pass filter, 16bit D/A converter
- Power supply voltage range from 2.7V to 5.5V
- Master clock frequency of 4.096MHz, 4.000MHz
- Clock back-up function
- Failure detection function, playback sound
- I2C interface
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
LAPIS SEMICONDUCTOR |
| Part Number |
ML22660TBZ0BX |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

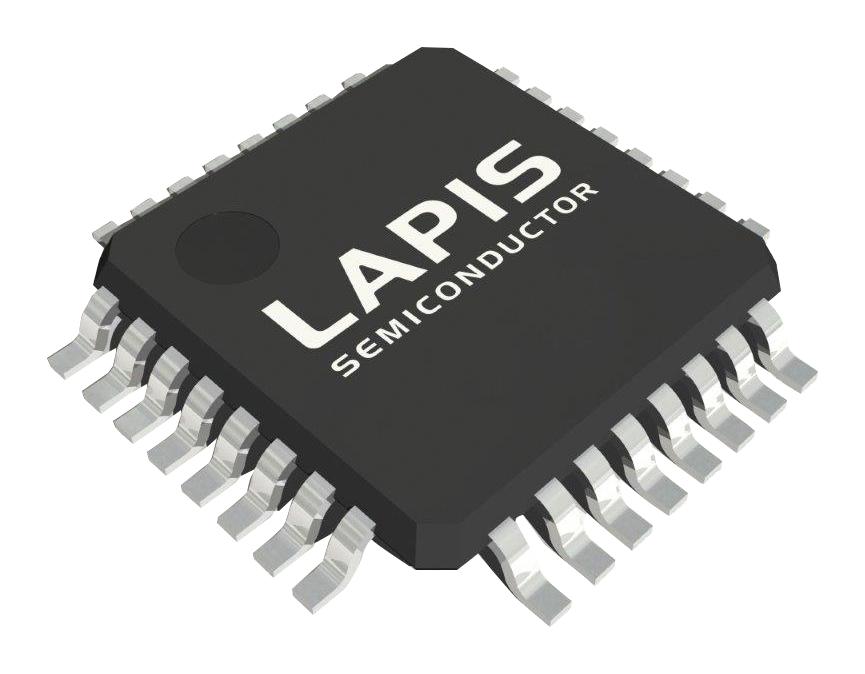

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
