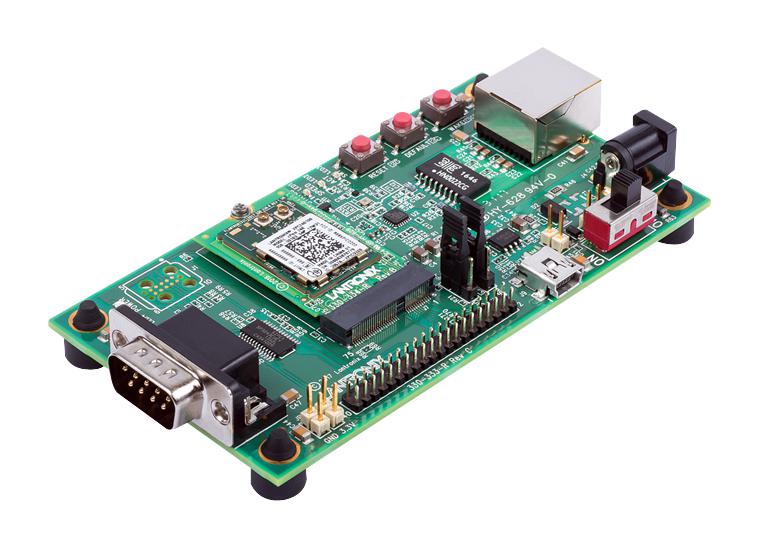

Lantronix XPC270300EK Evaluation Board Xpico 270 Communication & Networking Server

XPC270300EK is a xPico 270 embedded Gateway evaluation kit. xPico 270 series is a highly integrated dual-band (2.4GHz and 5GHz) industrial Wi-Fi with 802.11ac, Ethernet and dual-mode Bluetooth (Bluetooth Classic v2.1+EDR and Bluetooth Low Energy v4.2) gateway. Featuring advanced enterprise security, intelligent networking, production ready software, and pre-integration with the ConsoleFlow� platform, xPico 270 line of embedded IoT gateways enables OEMs to go to market faster with their industrial IoT solutions.

• Serial(x1), SPI(x1), USB(device/host), SDIO, I2C, GPIO, Ethernet MAC(RMII), USB, serial interfaces
• Simultaneous AP and client (STA), AP only, client (STA) only modes
• TruPort serial, USB, web providing industry's most compatible device data access technology
• TruPort security adding security and data-at-rest and data-in motion encryption, authentication
• Direct mobile to device service interface via SoftAP or Wi-Fi Direct® technologyWPA/WPA2
• SSL/TLS 1.2 with X.509 certificate management
• Embedded Ethernet to Wi-Fi STA bridge
• Dimension is 22mm x 35.5mm x 2.73mm (edge card)
• Global certification (FCC, IC, ETSI, Japan, AU/NZS, China)
• Industrial-grade design for operation in extreme environments (-40â�°C to +85â�°C)

Contents

xPico 270 evaluation board, U.FL to RP-SMA adapter, Cables and antennas, 5V power supply with regional adapters, Firmware & license agreement.

Other details

Brand	LANTRONIX
Part Number	XPC270300EK
Quantity	Each
Technical Data Sheet EN
