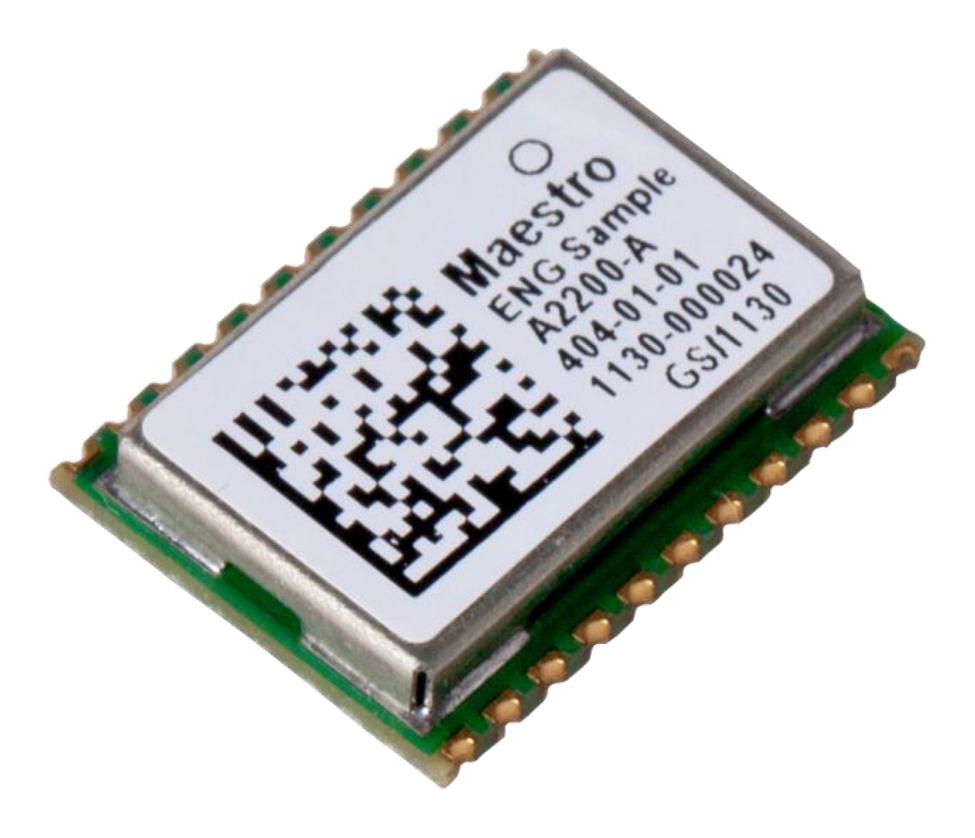

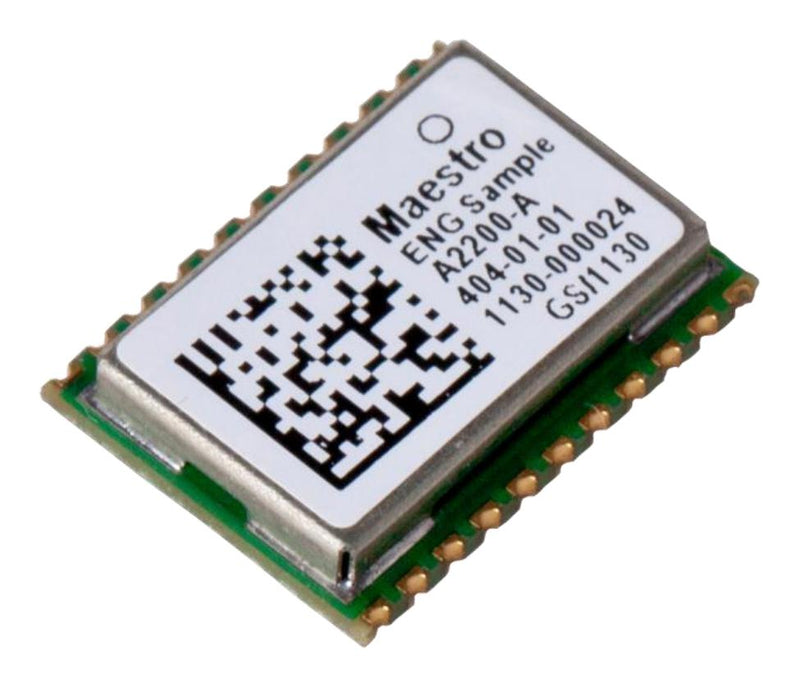

2200 GPS modules enable fastest acquisition and tracking with SiRFstarIV technology. This small form-factor module fully addresses the demand for lowest power consumption with, SiRFaware technology. The removal of jammers does not only facilitate designs of new products, but guarantees operation even in hostile environments. High sensitivity during acquisition or while tracking allows for use in many different environments and under toughest operating conditions.
- High-sensitive navigation engine with tracking down to -163dBm
- 48 track verification channels
- SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Requires only 50 - 500µA to maintain hot start capability
- Removes in-band jammers up to 80dB/Hz
- Tracks up to eight CW (continuous wave) jammers
- Direct passive antenna support
- Switched antenna voltage for active antenna support
- Small form factor of 10.2 mm x 14 mm (0.40" x 0.55")
- Supported temperature range from -40°C to +85°C
Other details
| Brand |
LANTRONIX |
| Part Number |
A2200A |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
