Description
LanParte SCR-02 Overview
- 1Description
- 2LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle
- 3LanParte Mini Matte Box with Single 4 x 5.65" Filter Slot & Lens Adapter Rings
- 4LanParte Follow Focus V2 with Hard Stops for 15mm Rods
- 5LanParte VBP-01 V-Mount Battery Pinch
- 6LanParte 15mm Aluminum Rod (Pair, 11.8")

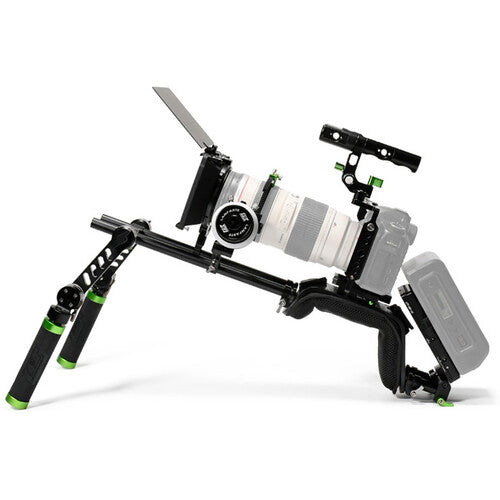

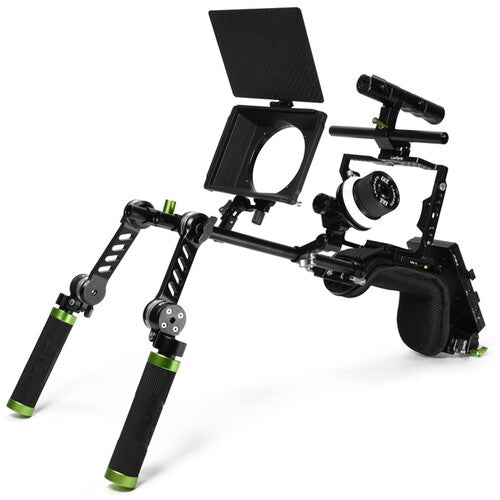

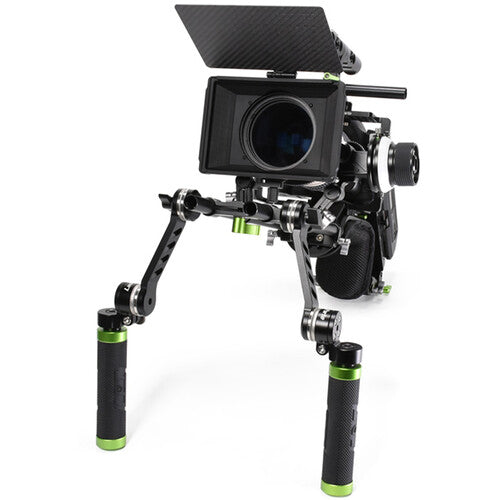

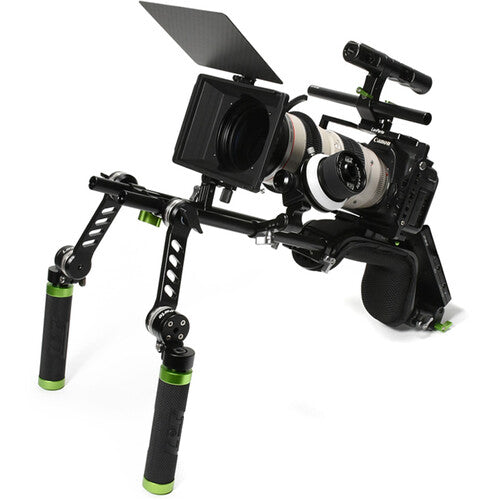

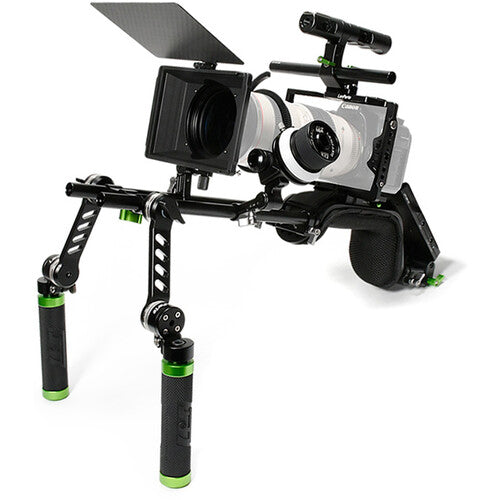

Add a shoulder-mount solution to your DSLR, mirrorless, or compact camera with this Universal Shoulder Rig from LanParte. The rig includes a universal camera cage, top handle, shoulder mount with pad, V-mount battery plate, follow focus, matte box, carbon fiber top flag, lens adapter rings, 15mm rods, adjustable dual handgrips, and a durable carry case.
Your camera mounts onto the camera cage and provides a variety of mounting points and protection while keeping the ports, battery door, and display on your camera open. The top handle mounts on top of the cage and provides a single, 7.9" horizontal 15mm rod for additional mounting options. The cage mounts onto the shoulder support that features a soft shoulder pad. This assembly mounts onto the central 11.8" 15mm rods, as do the shoulder mount, follow focus, matte box, and dual handgrips.
The battery mount attaches to the back of the shoulder pad and allows you to power your gear using a separately available V-mount battery and its power outputs while also acting as a counterweight on the back of the rig. The follow focus features hard A/B stops and includes a flexible lens gear for accurate focus pulls. The matte box includes four lens adapters for a variety of lens sizes, and it includes a carbon fiber top flag to control the light coming into your lens. The dual handgrips adjust using rosette joints and feature "dogbone"-style extensions to ensure the proper arm position. The included hard-shell carry case stores and protects your entire kit.
LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle
The LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle integrates a Manfrotto 501-compatible baseplate system within the cage, making it easy to slide your camera in and out for lightweight, stripped-down operation. The aluminum cage provides a protective exoskeleton for your camera, protecting it from the rigors of production. The included top handle provides an ergonomic grip for low-angle shots or carrying the camera. The handle attaches to a removable NATO rail that you can mount on the top and the sides of the cage. Together, the cage and top handle feature numerous accessory mounting points that allow you to attach optional accessories, such as monitors, mics, articulating arms, and lights, to your rig without stressing your camera's delicate chassis.
Mount your camera on the baseplate and slide that into the cage. An adjustable tension lever lock secures the plate into the cage, keeping your camera secure and protected. While protecting your camera, the cage allows access to all the functions, as well as the card slots and battery compartment. The 1/4"-20 threaded holes along the sides and top of the cage provide ample mounting opportunities for optional articulating arms of other accessory instruments. The 3/8"-16 threaded mounting holes with anti-twist divots are located, one each, on the top of the cage and the side. A single built-in cold shoe on top allows additional accessory mounting.
Cage
Integrated Baseplate
Key Features
- Ergonomic design
- 1/4"-20 and 3/8"-16" mounting threads all around for accessories
- The two 3/8"-16 threaded holes are accompanied by anti-twist divots
- Provides access to all ports, slots, and controls of the camera
- Raised front panel keeps the camera square in the cage and prevents twisting
Top Handle
Mounting
Accessory Mounting
Cold Shoes and Rod Mount
LanParte Mini Matte Box with Single 4 x 5.65" Filter Slot & Lens Adapter Rings
Add a compact matte box to your DSLR or mirrorless camera rig with this lightweight, portable Mini Matte Box with Single 4 x 5.65" Filter Slot from LanParte. This matte box features a carbon fiber top flag and aluminum frame construction that makes it lightweight and durable, and it features a nonreflective shade design.
Designed to work with a variety of lenses, the matte box includes four adapter rings for 67, 72, 77, and 82mm lens sizes. You can also add a single 4 x 5.65" filter to the front, and the lens adapter rings also allow an additional screw-on filter to be added. The included removable top flag can be angled up to 180° and locked to block stray light from flaring your lens.
The matte box also includes a single 15mm rod clamp and a 3.9" rod for mounting on a variety of rigs, and a rod support attachment allows you to mount the matte box onto a cage or rig using screws. The adjustable clamp allows you to swing the matte box away from the rig for lens changes. On top of the matte box are 1/4"-20 and 3/8"-16 mounting threads, as well as two shoe mounts for additional accessories.
LanParte Follow Focus V2 with Hard Stops for 15mm Rods
The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
Key Features
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included
LanParte VBP-01 V-Mount Battery Pinch
Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.
LanParte 15mm Aluminum Rod (Pair, 11.8")
Mount accessories to your rig with this pair of 11.8" 15mm Aluminum Rods from Lanparte. This rod set is extendable via integrated 12mm threading on the rod ends, allowing for separately available extension screws to be used to mount more threaded rods.
In the Box
- LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle
- Baseplate
- 4 x NATO Rail
- Allen Key
- Flat Screwdriver
- 15mm Rod (8")
- Limited 1-Year Warranty
- LanParte Mini Matte Box with Single 4 x 5.65" Filter Slot & Lens Adapter Rings
- 67mm Lens Adapter Ring
- 72mm Lens Adapter Ring
- 77mm Lens Adapter Ring
- 82mm Lens Adapter Ring
- Carbon Fiber Top Flag
- Single Rod Clamp
- 15mm Rod (3.9")
- 15mm Rod Support Attachment for Cage
- 2 x Allen Wrench
- Limited 1-Year Warranty
- LanParte Follow Focus V2 with Hard Stops for 15mm Rods
- Magnetic Marking Disc
- 0.8 Pitch Drive Gear
- LanParte Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
- Limited 1-Year Warranty
- LanParte VBP-01 V-Mount Battery Pinch
- 3 x LanParte Yellow-Tip Camera DC Power Spring Cable for Battery Pinch (5.5/2.1mm)
- LanParte Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm)
- AC Power Adapter
- Limited 1-Year Warranty
- LanParte Single Button Quick-Adjustable Rosette Handgrip
- LanParte 15mm Aluminum Rod (Pair, 11.8")
- Limited 1-Year Warranty
- Shoulder Support with Pad
- Hard-Shell Carry Case
- Description
- LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle
- LanParte Mini Matte Box with Single 4 x 5.65" Filter Slot & Lens Adapter Rings
- LanParte Follow Focus V2 with Hard Stops for 15mm Rods
- LanParte VBP-01 V-Mount Battery Pinch
- LanParte 15mm Aluminum Rod (Pair, 11.8")
LanParte Universal Camera Cage with 501-Compatible QR Plate and Top Handle Specs
| Support Type | Cage |
| Grip Type | Topside Handgrip |
| Camera Compatibility | Universal |
| Rod Standard | 15 mm Single Rod |
| Included Rods | 1 x 7.9" / 20 cm 15 mm Aluminum Rod |
| Battery Plate Type | None |
| Accessory Mounting | Cage, Sides: 12 x 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread Cage, Top: 29 x 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread Top Handle, Sides: 4 x ARRI Anti-Twist 3/8"-16 Thread Top Handle, Top: 3 x ARRI Anti-Twist 3/8"-16 Thread Top Handle, Front: 1 x ARRI Anti-Twist 3/8"-16 Thread Baseplate, Front: 2 x M4 Thread |
