LAKE PEOPLE G103-P MKII Overview

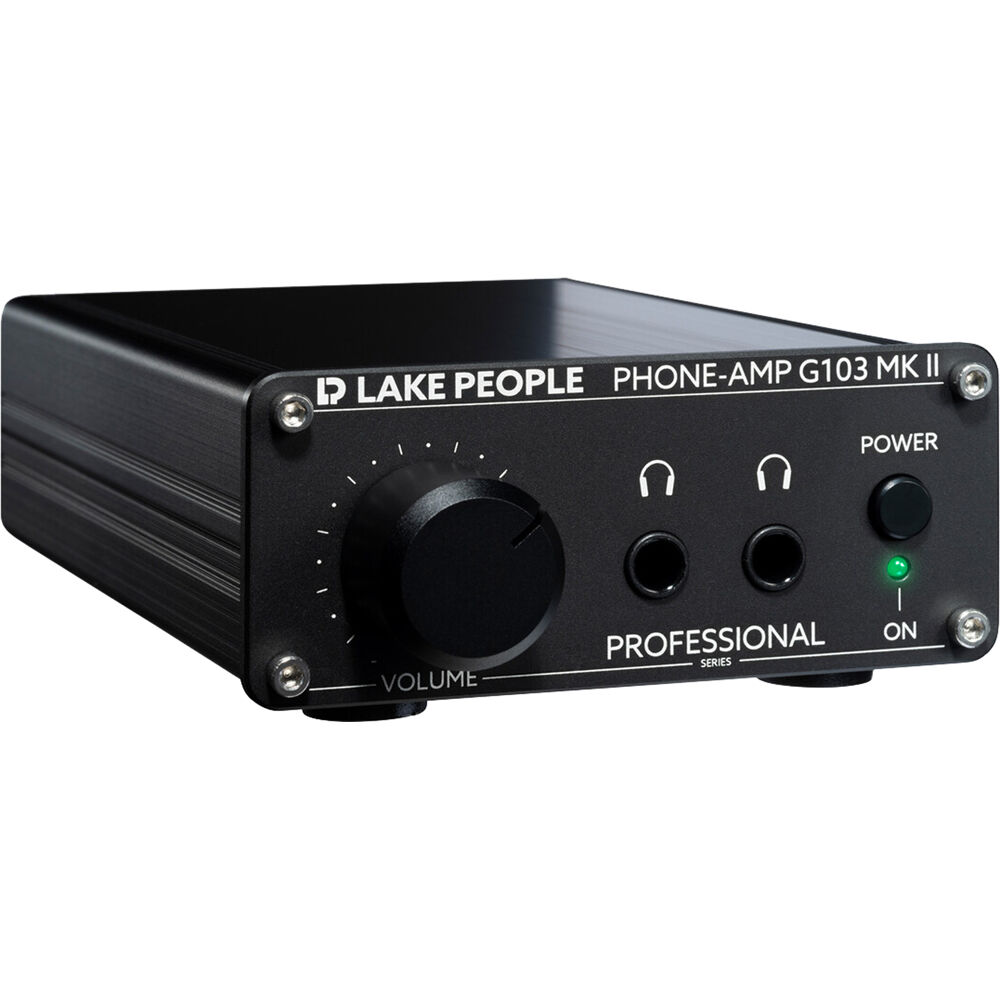

Built for studio recording or live use, the G103-P MKII Headphone Amplifier from LAKE PEOPLE is a 2-channel stereo amp designed to deliver powerful and reliable sound in any environment. This compact, yet durable anodized aluminum device uses numerous internal jumpers to match to your headphone's specific characteristics, with support for a wide range of headphones ranging from eight to 600 ohms load impedance.

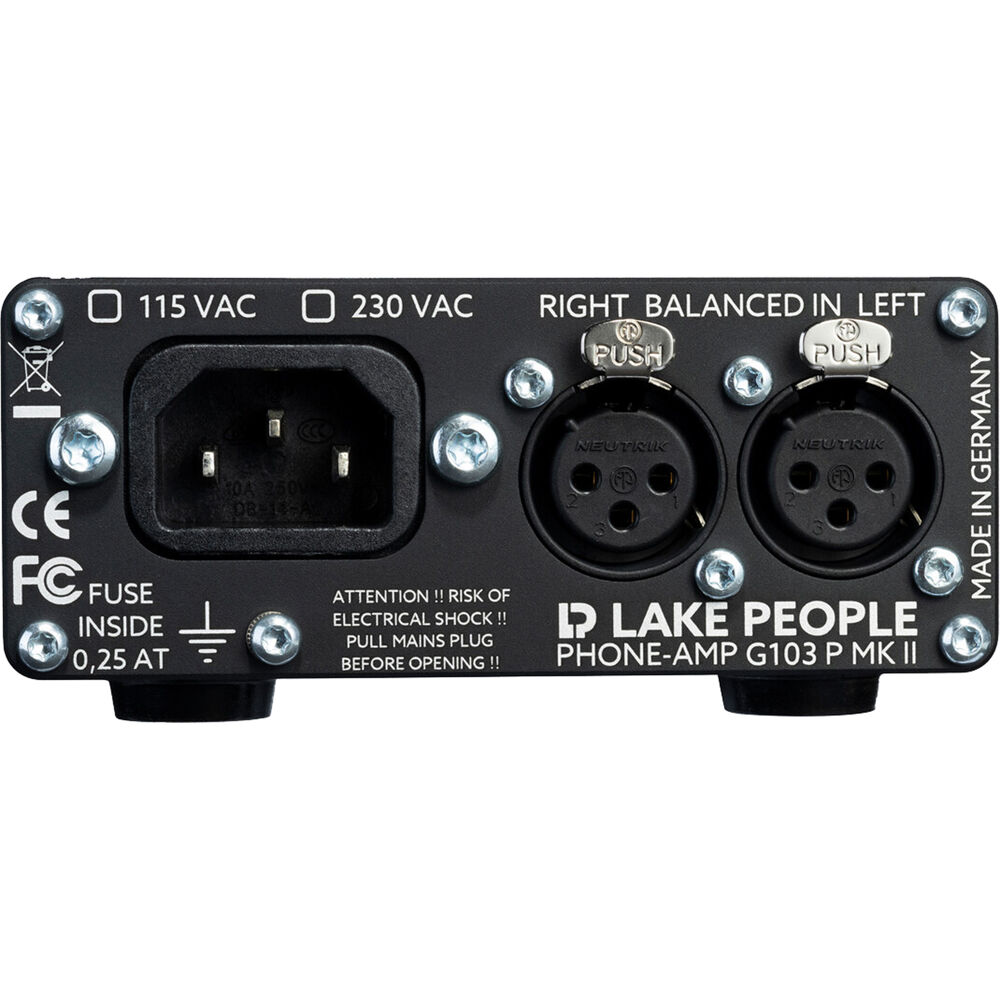

The G103-P MKII features internal circuitry designed to provide optimal audio quality including a circuit layout for minimal internal noise and THD, special filters for preventing high or low frequency overload, and a built-in mains transformer that delivers ultralow noise and dependable internal supply voltages of ±25V, greatly reducing the chance of long-term short-circuits. The amp sports two Balanced XLR inputs for one stereo pair, and two unbalanced, 1/4" output jacks for two channels of stereo headphone amplification.
In the Box
- LAKE PEOPLE G103-P MKII 2-Channel Headphone Amp
- Power Cord
- Limited 2-Year Manufacturer Warranty
LAKE PEOPLE G103-P MKII Specs
| Form Factor |
Tabletop |
| Number of Headphone Channels |
2-Channel |
| Recommended Headphone Impedance |
8 to 600 Ohms |
| Headphone Output Power |
Not Specified by Manufacturer |
| EQ |
None |
| Display |
None |
Connectivity
| Analog Audio I/O |
2 x 1/4" TRS Unbalanced Stereo Headphone Output (Front Panel)
2 x XLR 3-Pin Unbalanced Mono Line Input (1 Stereo Pair, Rear Panel) |
| Digital Audio I/O |
None |
| Network I/O |
None |
| USB |
None |
Performance
| Frequency Response |
10 Hz to 250 kHz -3 dB |
| SNR |
< -102 dBu |
| Crosstalk |
-90 dB (At 1 kHz)
-70 dB (At 15 kHz) |
Power
| Power Requirements |
AC Input |
| AC Input Power |
User Selectable:
115 to 250 VAC, 50 / 60 Hz (T .5 A) |
| Ground Lift |
No |
| AC/DC Power Adapter |
None |
Physical
| Dimensions |
6.3 x 4.1 x 1.7" / 16 x 10.5 x 4.2 cm |
Packaging Info
| Package Weight |
2.37 lb |
| Box Dimensions (LxWxH) |
10 x 9 x 3.4" |
