| ₹ 199190.0 includes GST and import duties. | |
| B2B customers can avail ₹ 30376.48 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

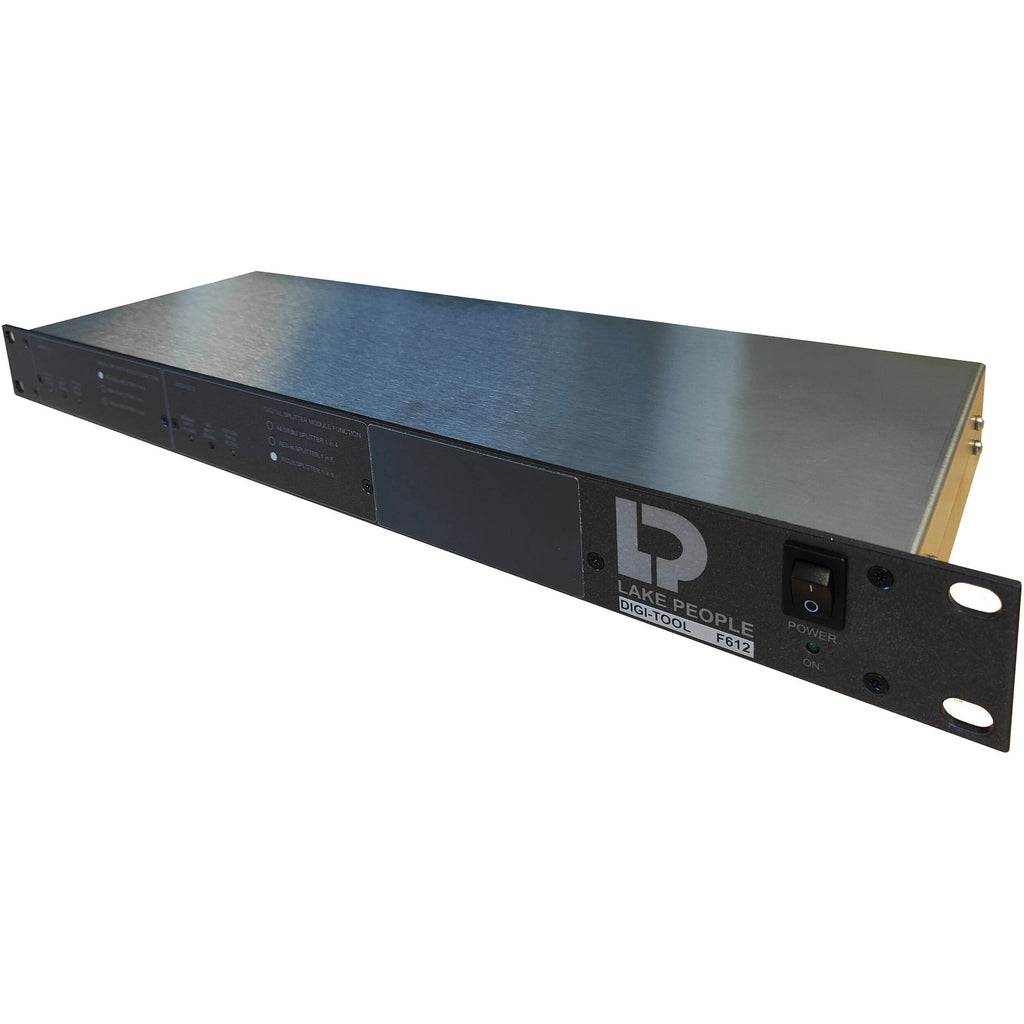

LAKE PEOPLE F612 Overview

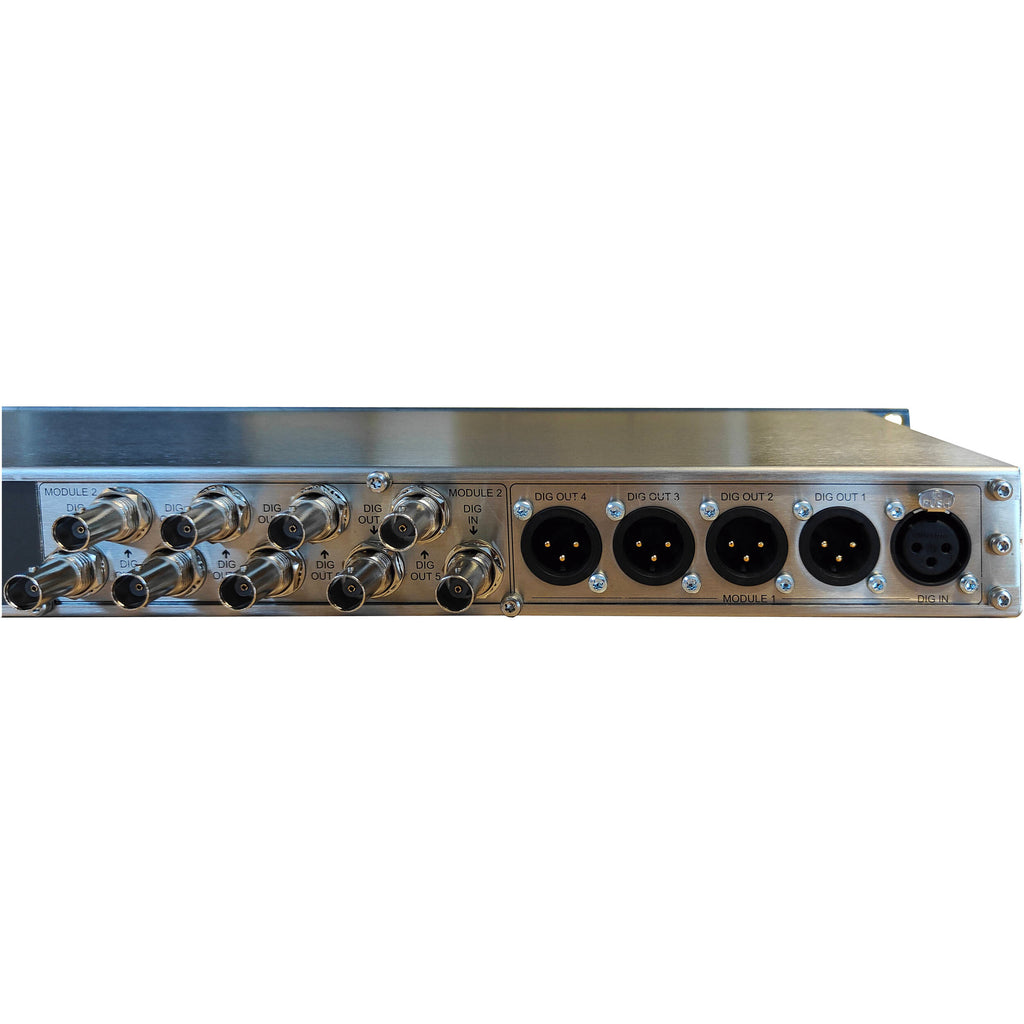

Ideal for use in modern recording and broadcast studios, the DIGI-TOOL F612 from Lake People is a distribution amplifier and digital splitter designed to deliver up to four expanded AES/EBU XLR outputs for one input at sample rates as high as 24-bit / 192 kHz. The F612 features two separate modules, one with a single XLR AES/EBU input and four XLR outputs, and another with one BNC wordclock or AES-iD sync input and eight BNC outputs.

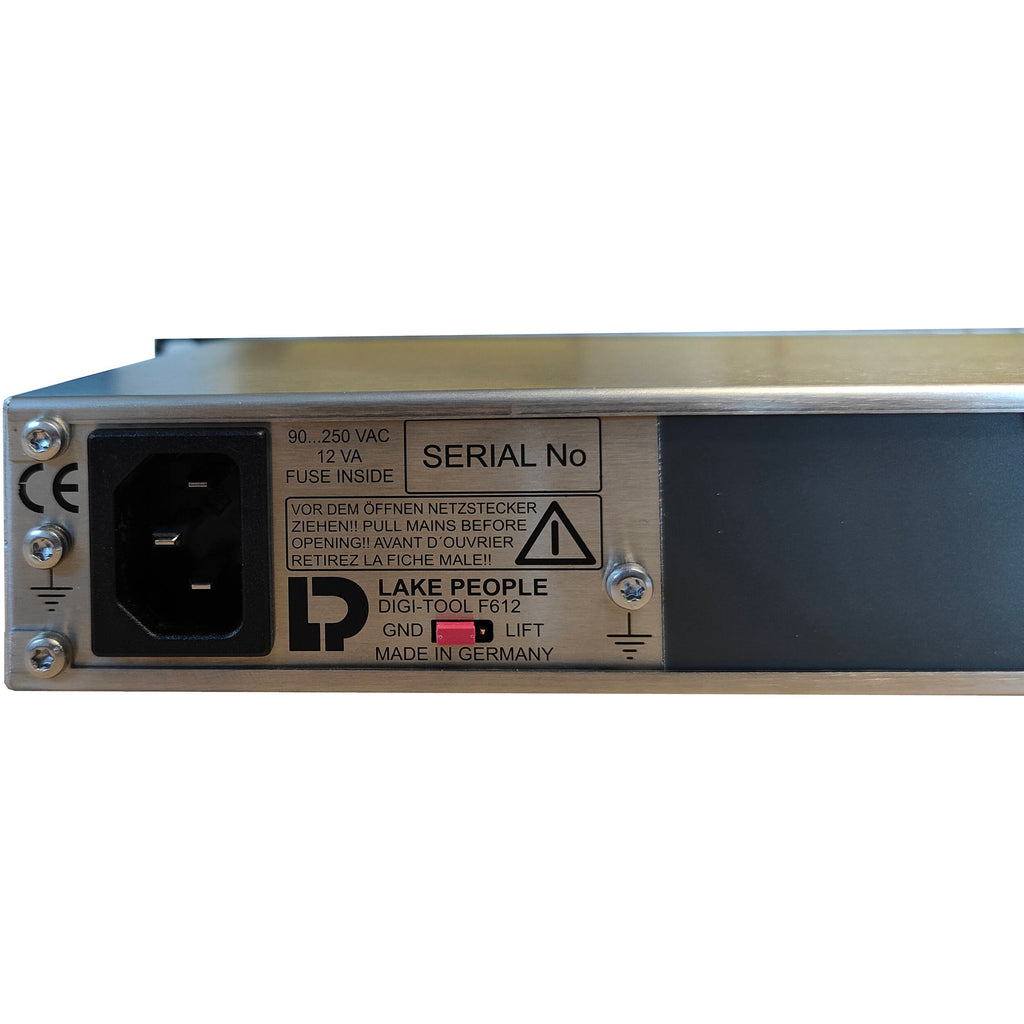

The unit features high output voltages for maintaining signal strength over very long distances, and a high input sensitivity helps to regenerate weak input signals. The F612 also sports failsafe operation thanks to its switchable multimode power supply, which automatically detects power input and switches to the appropriate voltage between 90 and 260 VAC.
To address this issue, the F611 sports AGC amplifiers to produce 4 Vpp output signals, more than enough to cover extremely long cable runs while maintaining optimal signal integrity. All I/O is balanced and both the inputs and outputs feature transformers for ensuring ideal signal strength, even allowing the unit to recover (regenerate) lost signal strength when receiving weak input signals.
- Jumpers for switching the output impedance from 75 to 50 ohms to drive improper wordclock inputs
- Jumpers to switch to AES-iD operation
- Jumpers that switch to Superclock 256 Fs
- Unbalanced BNC sockets with high input sensitivity and output voltages

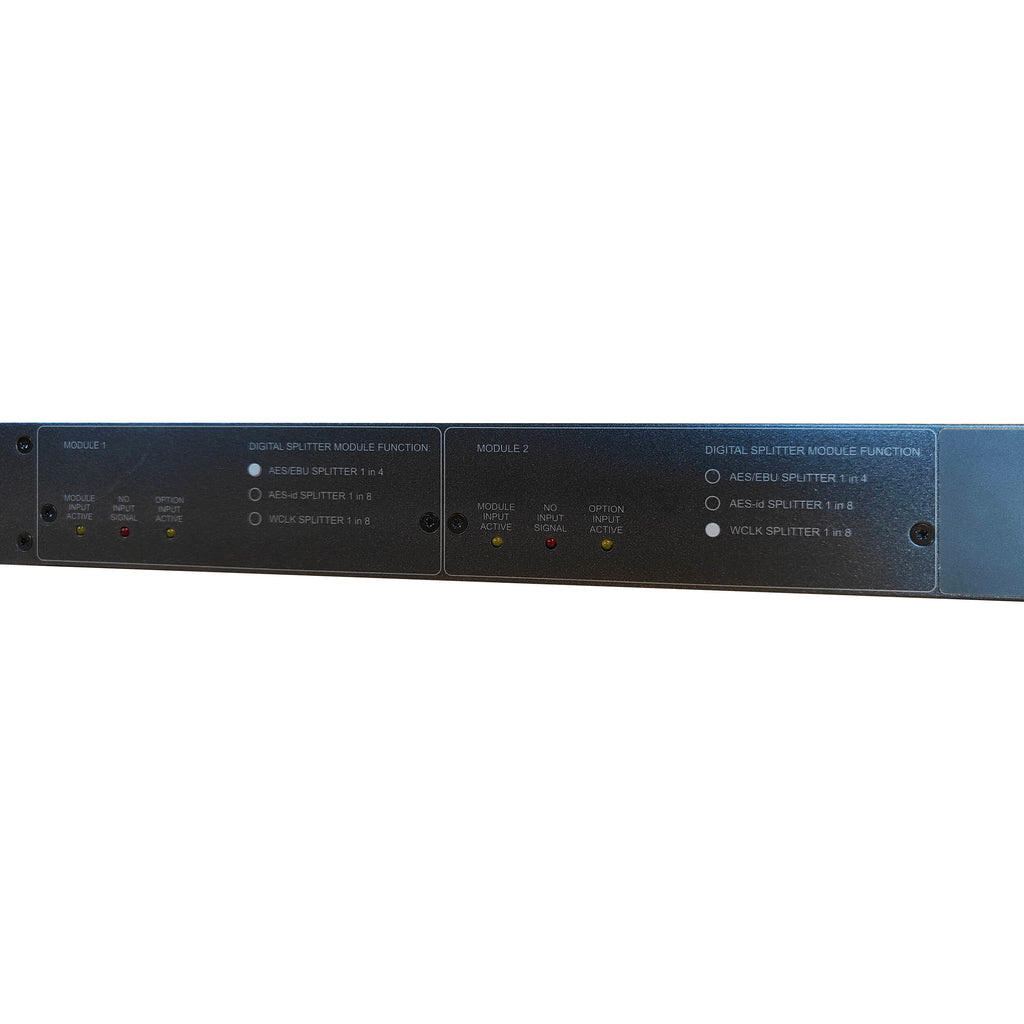

- Clear LEDs for indicating if a module is active or no input signal is detected
In the Box
- LAKE PEOPLE DIGI-TOOL F612 Digital Audio and Wordclock/AES-iD Splitter
- Power Cord
- Limited 2-Year Manufacturer Warranty
LAKE PEOPLE F612 Specs
| Audio I/O |
1 x XLR 3-Pin AES3 Input (Module 1)
4 x XLR 3-Pin AES3 Output (Module 1) 1 x BNC Coaxial S/PDIF Input (Wordclock and AES-iD, Module 2) 8 x BNC 7-Pin S/PDIF Output (Wordclock and AES-iD, Module 2) |
| Power Source |
AC Input (Built-In)
|
| AC Input Power |
90 to 260 VAC, 50 / 60 Hz
|
| Certifications |
CE
*as per Manufacturer |
| Mounting |
Front: 4 x Standard Rackmount Hole
|
| Color |
Dark Gray
|
| Material of Construction |
Stainless Steel
|
| Dimensions |
19 x 6.5 x 1.7" / 48.3 x 16.6 x 4.4 cm
|
| Weight |
Not Specified by Manufacturer
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 195206.2 |
| 3-5 | ₹ 193214.3 |
| 5-10 | ₹ 189230.5 |
| 10+ | ₹ 185246.7 |
Bulk discount will be automatically applied during checkout based on quantity.
