Description

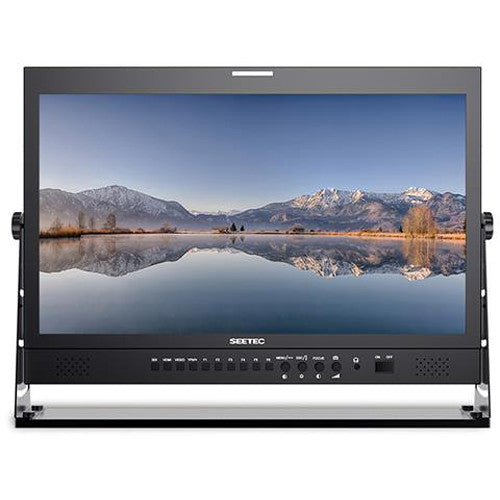

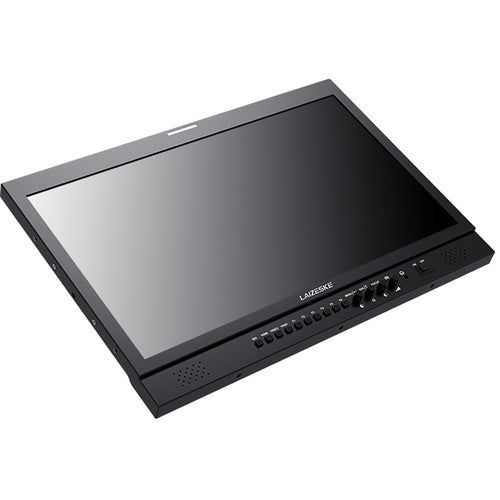

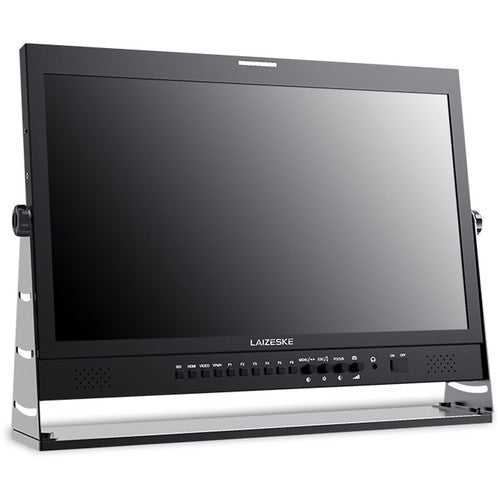

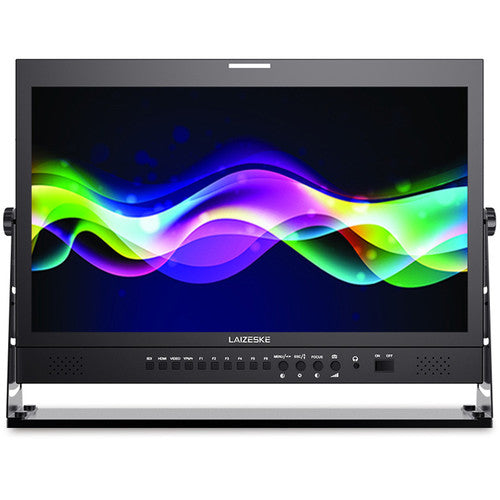

The 21.5" Full HD Broadcast Studio Monitor from Laizeske supports 4K HDMI input/loop-through out and is suitable for broadcast control rooms, transfer facilities, and production houses. It uses Rec.709 HD color standard and color calibration technology. The monitor features four rotary encoder switches for immediate access to menu, saturation, brightness, contrast, focus, and camera mode. You can use a push-button for peaking, pixel-to-pixel, camera mode, center marker, screen marker, and other functions.

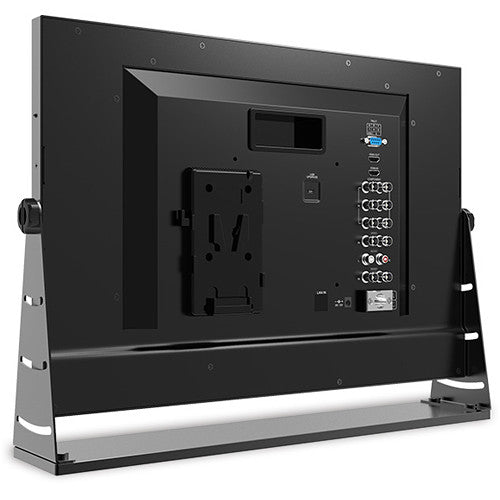

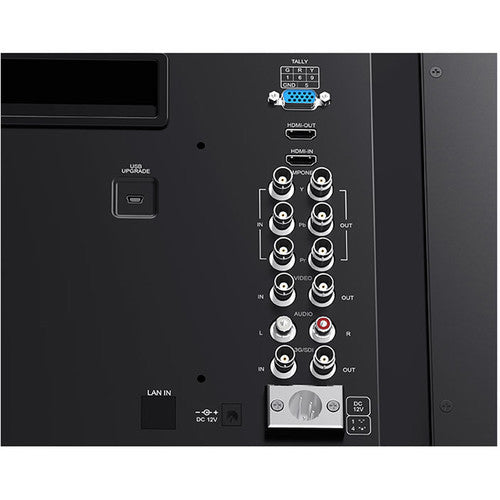

The monitor comes with HDMI, 3G-SDI, BNC video, 2RCA audio, RS-485, and DVI inputs. It also features HDMI, 3G-SDI, BNC video, and RS-485 loop-through outputs. This monitor supports UMD and Text-Tally display of TSL 3.1/4.0 protocol with 0-126 TSL address selection (maximum 16 letters displayed). It can be powered by the included power adapter, and includes a V-mount plate for battery support (batteries sold separately).
- Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a color highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the Check Field mode using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment
- Pixel-to-Pixel
- Enable the filmmaker to check the image without scaling from the 1:1 signal source

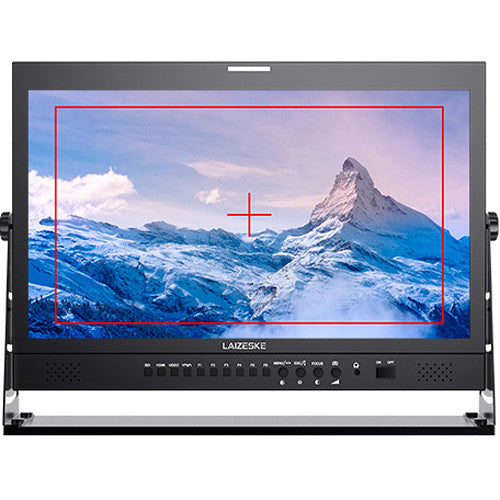

- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1)
- Image Flip
- Allows you to flip the image vertically, horizontally, or vertically and horizontally together
- Other Features
-
- Full HD 1920 x 1080, colorful display

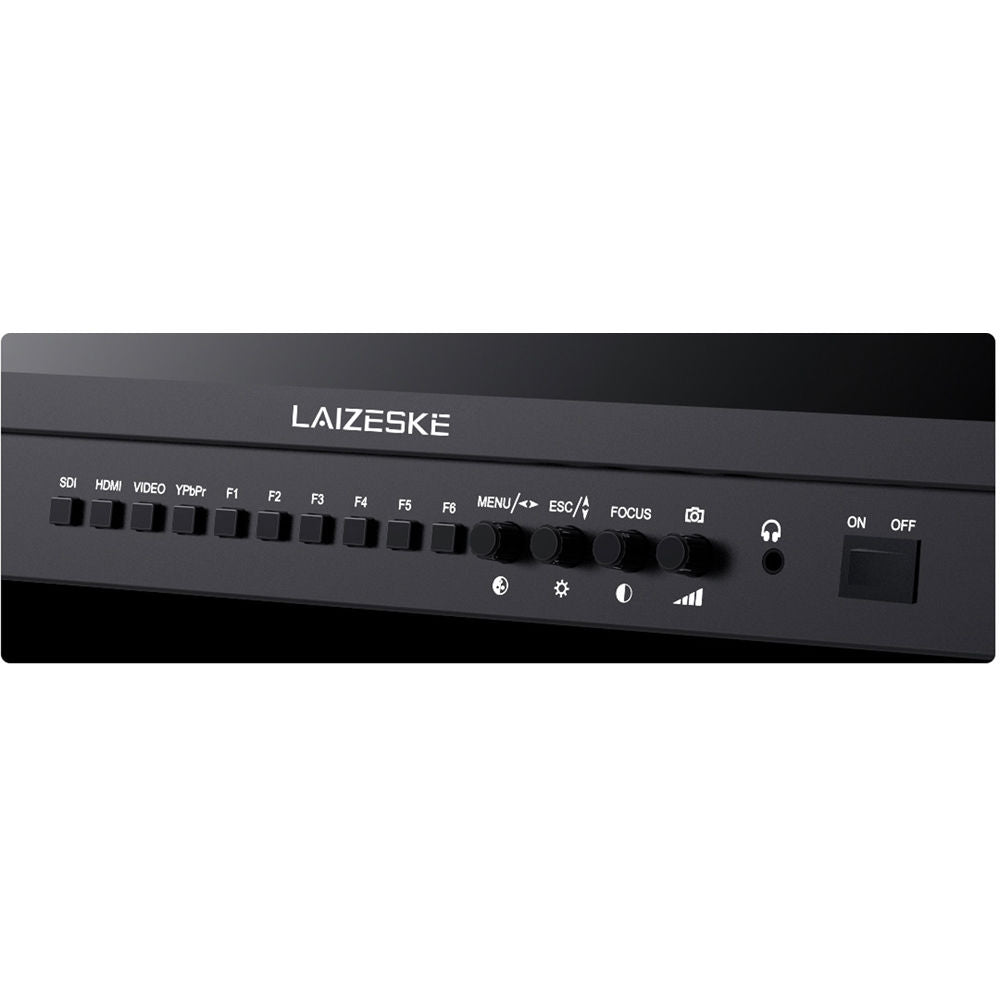

- Four assignable shortcut keys (F1, F2, F3, and F4) for fast access to functions
- UMD and text-tally display (TSL 3.1/4.0 protocol)
- UMD inputs via RS-485 port and outputs via RS-485 port
- Camera mode
- Monitoring via a front panel 3.5mm stereo headphone jack and a built-in speaker
- Built-in LED tally indicators (red, green, yellow)
- Zoom-all (Up/Down and Left/Right zoom)
- Image freeze
- Full-metal shell to prevent heat dissipation
- Custom color temperature
- Machined aluminum design
- 16.7 million color images
- 178° viewing angle
Laizeske DRF215 specs
| Screen Size | 21.5" / 54.6 cm |
| Screen Type | IPS |
| Color Depth | 16.7 million |
| Resolution | 1920 x 1080 |
| Dot Pitch | 248.25 x 248.25 um |
| Aspect Ratio | 16:9 |
| Brightness | 250 cd/m 2 |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing angle (L/R/T/B) | 89°/89° (U/D) 89°/89° (L/R) |
| Input | 1 x BNC (3G-SDI) 1 x HDMI 1 x BNC 2 x RCA audio (L/R) 1 x DVI-I 1 x RS-485 |
| Output | 1 x BNC (3G-SDI) 1 x HDMI 1 x BNC 1 x RS-485 |
| Audio Output | Stereo headphone, speaker |
| HDMI Format Support | 4096 x 2160p 24 3840 x 2160p 30/29.97/25/24/23.98 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576p/480p 576i/480i |
| SDI Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576i 480i |
| Input Voltage | 9 to 24 VDC |
| Power Consumption | ?18 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | Without Stand Feet: 20.2 x 14 x 1.4" / 51.2 x 35.6 x 3.6 cm |
| Weight | 9.7 lb / 4.4 kg |
