Description

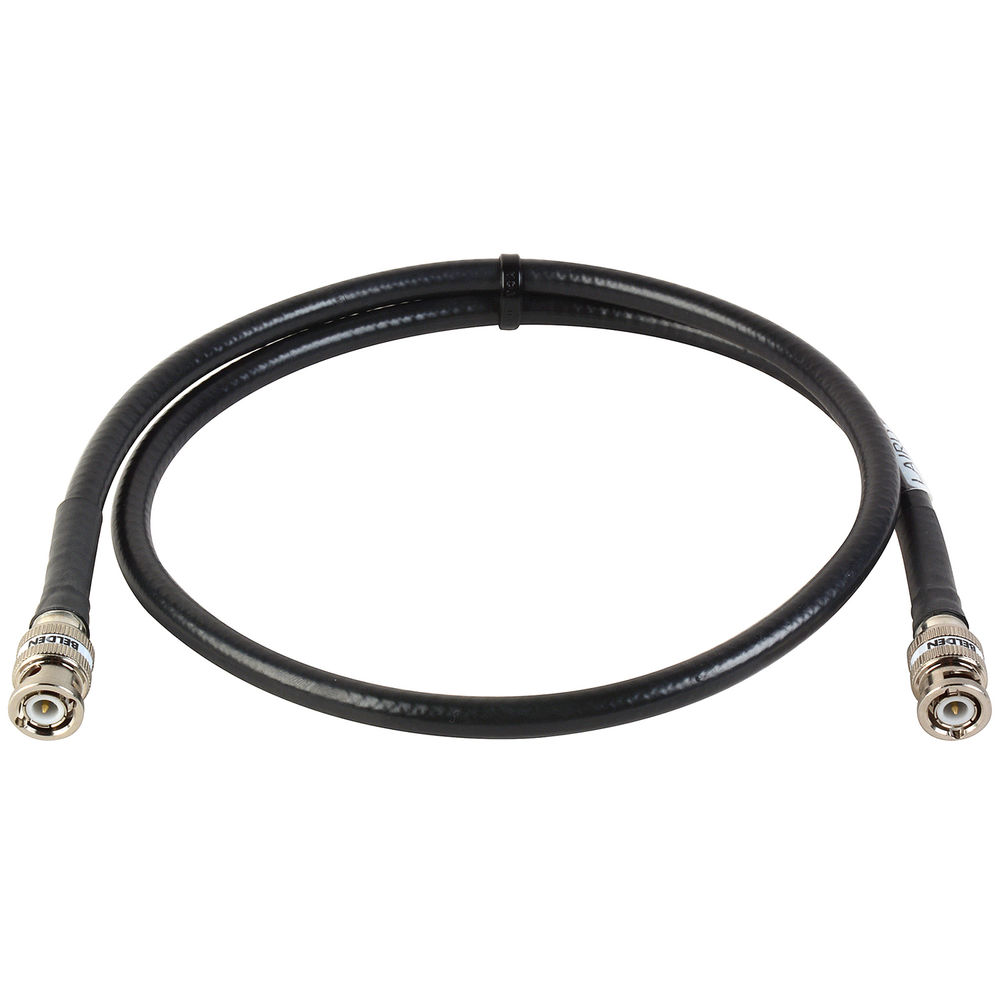

Laird Digital Cinema 4794R-B-B Overview
Transmit up to UHD 4K 12G-SDI video signals with the 50' 4794R-B-B 12G-SDI/4K-UHD Single-Channel BNC Cable from Laird Digital Cinema. This SMPTE ST-2082-1 compliant cable features a 16-AWG Belden 4794R cable and Amphenol connectors with foamed PE insulation for optimal attenuation.
UHD 4K/12G-SDI Transmission
- Supports up to 12G-SDI 4K video
- Belden 4794R BNC cables with Amphenol connectors
SMPTE Compliance
- SMPTE ST 259/292/424/425
- SMPTE ST 2081-1/2082-1
16 AWG Cable
Low-loss 16 AWG cable with PVC jacket, gas-injected foamed HD polyethylene (FHDPE) insulation, silver-plated copper conductor, and tinned-copper braided shield
In the Box
- Laird Digital Cinema 4794R-B-B 12G-SDI/4K-UHD Single-Channel BNC Cable (50')
- Limited 1-Year Manufacturer Warranty
Laird Digital Cinema 4794R-B-B Specs
General
| Connector 1 | 1 x BNC |
| Connector 2 | 1 x BNC |
| Cable Length | 50' / 15.2 m |
| Signal Type | 12G-SDI |
| SMPTE Standards | SMPTE 259M/292M/424M-B/425M/2081-1/2082-1 |
| Conductor Material | Silver-Plated Copper |
| Insulation Type | Foam High Density Polyethylene (FHDPE) |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Outer Diameter | 0.32" / 8.13 mm |
| Shielding | Tinned Copper Braid |
| Wire Gauge | 16 AWG |
| Weight | 14.28 oz / 404.79 g |
Electrical
| Maximum Signal Loss | 0.26 dB at 1 MHz over 100' / 30.5 m 19.45 dB at 12000 MHz over 100' / 30.5 m |
| Capacitance | 16.0 pF/ft |
Environmental
| Certifications | CEC, NEC, RoHS *as per Manufacturer |
| Operating Temperature | -4 to 167°F / -20 to 75°C |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 31389.4 |
| 3-5 | ₹ 31069.1 |
| 5-10 | ₹ 30428.5 |
| 10+ | ₹ 29787.9 |
Bulk discount will be automatically applied during checkout based on quantity.
