Description

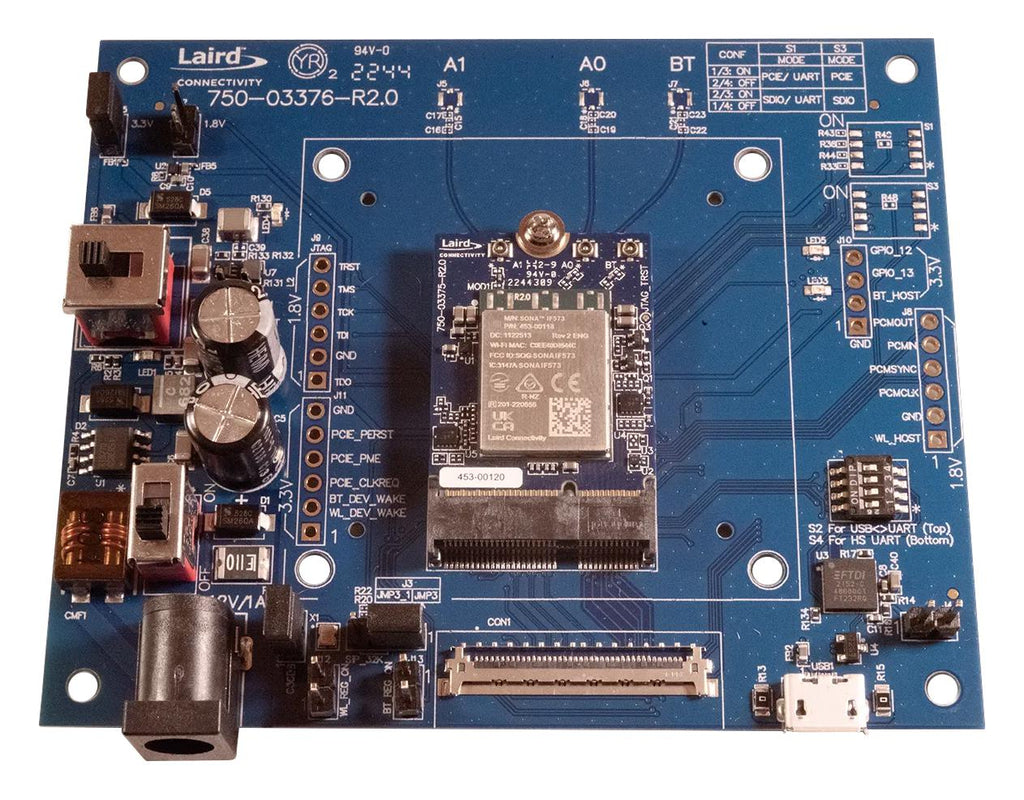

453-00120-K1 is a Sona IF573 series embedded module development kit. The Sona IF573 series wireless module is designed based on the Infineon AIROC CYW55573MIWBGT Wi-Fi 6E chipset (dualcore 2x2 MIMO). It is optimized for high speed, reliability, and low-power embedded applications. It is integrated with tri-band WLAN (2.4/5/6 GHz) and Bluetooth 5.4. The integration of all WLAN and Bluetooth functionality in a single package supports low cost and simple implementation along with flexibility for platform-specific customization. This device is pre-calibrated and integrates the complete transmit/receive RF paths including bandpass filter, diplexer, switches, reference crystal oscillator, and power management units (PMU). The device has a dedicated Bluetooth port for best Wi-Fi + Bluetooth coexistence performance. The device�s low power consumption, radio architecture and power management unit (PMU) proprietary power save technologies allow for extended battery life.
- M.2 2230 E-Key form factor
- PCIe/UART hosted system architecture
- Dimension is 30mm Length, 22mm width and 3.1mm thickness
Product details
Other details
| Brand | LAIRD CONNECTIVITY |
| Part Number | 453-00120-K1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16506.0 |
| 3-5 | ₹ 16337.57 |
| 5-10 | ₹ 16000.72 |
| 10+ | ₹ 15663.86 |
Bulk discount will be automatically applied during checkout based on quantity.
