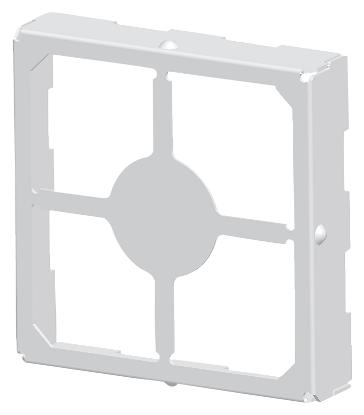

The BMI-S-206-F is a two-piece standard surface-mount Shield Frame offers user the flexibility to inspect or repair shielded components without risking board damage by removing the entire shield or incurring tooling costs. Covers snap on and off with ease, which makes repair of the component under the shield quicker and easier and reduces board re-work. Two-piece shields are available unassembled and are designed to survive drop, shock and no-rattle tests. It is suitable for 121/169/225 BGA, 32/44/52 68 PLCC, 48/100 VQFP, 44/48/64/80/100 QFP applications.
- Reduces board damage from inspection and repairs
- 56mm Carrier tape width
- 40mm Carrier tape pitch
Applications
Industrial
Product details
| Shielding Type |
EMI Shielding |
| Product Range |
- |
| Gasket Material |
- |
| Length |
36.83mm |
| Width |
33.68mm |
| Depth |
5.08mm |
| Attenuation |
- |
Other details
| Brand |
LAIRD |
| Part Number |
BMI-S-206-F |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
