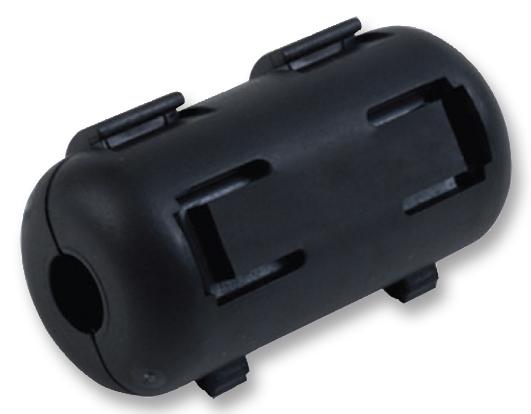

The 28A2005-0A2 is a broadband Split/Snap-on Core provides excellent common and differential mode EMI suppression on round cable assemblies. The lightweight inexpensive plastic snap-on cases provide secure closure of the split cores onto the cable. The in-circuit impedance may be substantially increased by passing 2 turns of the wire conductor through the ferrite core assembly. It is suitable for fixing EMI issues without board level design changes, cable and wiring harnesses, energy and utilities.
Applications
Security, Consumer Electronics, Automotive, Computers & Computer Peripherals, Medical, Industrial, Communications & Networking, Logistics
Product details
| Outer Diameter |
13mm |
| Length |
25.5mm |
| Inner Diameter |
5mm |
| Frequency Min |
- |
| Frequency Max |
- |
| Impedance @ 100MHz |
190ohm |
| Product Range |
- |
Other details
| Brand |
LAIRD |
| Part Number |
28A2005-0A2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
