- PTFE insulated cable for extending platinum resistance thermometers
- High temperature to 260°C, wrapped PTFE tape construction
- Insulation rating -75°C to 260°C, can be used to extend 2, 3 or 4 wire RTD configurations
- Commonly used for Pt100R thermometers
- Also suitable with other types such as Pt130, Pt500 and Pt1000R

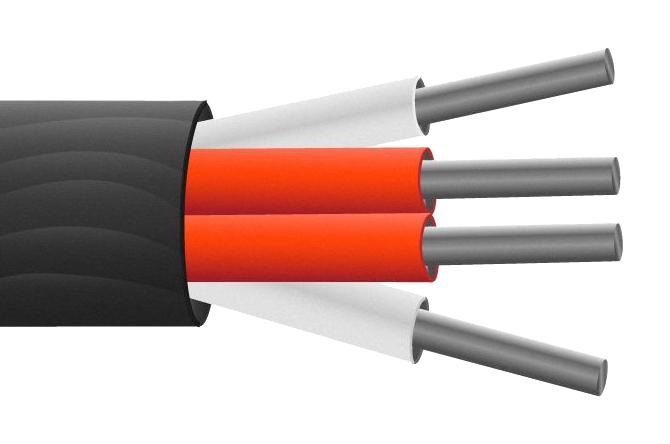

- 4 core PTFE insulated 7/0.2mm silver plated copper conductors, twisted cores
- Mylar tape, silver plated copper braided screen with PTFE insulated outer jacket
- Cores colour coded 2 x red / 2 x white to IEC-751 + black outer jacket
- Good mechanical strength and flexibility, resistant to oils, acids, other adverse fluids, steam, gas
- 25m reel length
Product details
| Cable Shielding |
Screened |
| No. of Cores |
4Core |
| Wire Gauge |
- |
| Conductor Area CSA |
0.219mm² |
| Reel Length (Imperial) |
82ft |
| Reel Length (Metric) |
25m |
| Jacket Colour |
Black |
| No. of Max Strands x Strand Size |
7 x 0.2mm |
| Conductor Material |
Silver Plated Copper |
| Jacket Material |
PTFE |
| External Diameter |
3.5mm |
| Voltage Rating |
- |
| Product Range |
- |
Other details
| Brand |
LABFACILITY |
| Part Number |
WC-014-D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
