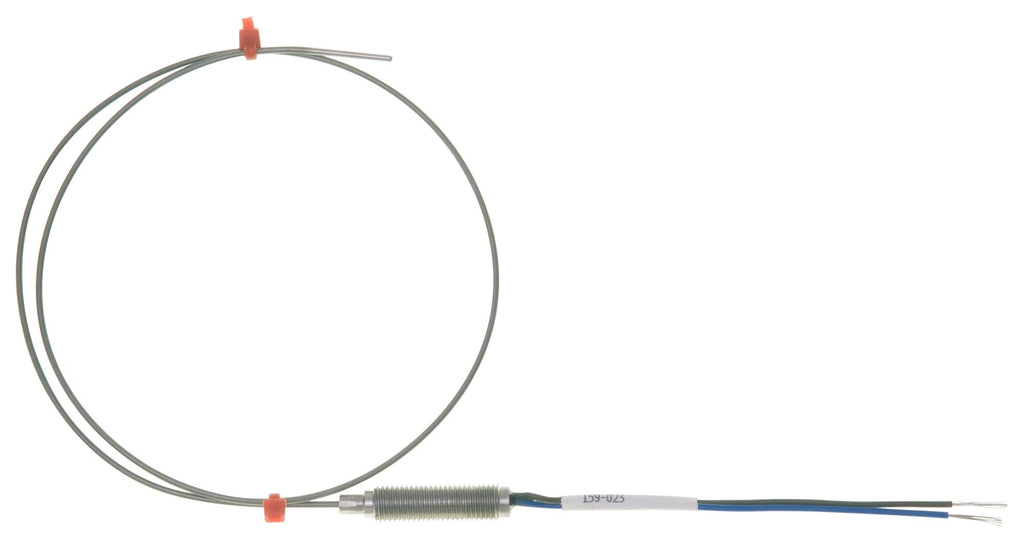

MD-ISK-S15-500-P5-B is a mineral insulated thermocouple (BS colours). Flexible mineral insulated probe with 310 stainless steel with M8 x 1.0mm fine pitch threaded pot seal & tails. 310 stainless steel provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick & cement kilns, glass industry, heat treatment & annealing furnaces, power stations, flues, heat exchangers etc. Termination is 7/0.2mm PVC insulated tails x 100mm long, colour coded in accordance with former British standard BS1843-1952 (pos+brown/neg-blue).
- Mineral insulated type K thermocouple with threaded pot and tails, 310 stainless steel sheath
- Highly flexible, sheath can be bent/formed to suit many applications and process
- Insulated hot junction
- M8 x 1.0mm fine pitch threaded pot seal
- Conforms to IEC 584-1&2
- Sensor type is type K (nickel chromium/nickel aluminium) to IEC 584-1&2
- Single element, junction insulated from sheath (offers protection against electrical noise)
- Probe temperature range from -40°C to +1100°C, pot seal rating is 105°C maximum
- 1.5mm probe diameter, 500mm probe length
Other details
| Brand |
LABFACILITY |
| Part Number |
MD-ISK-S15-500-P5-B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
