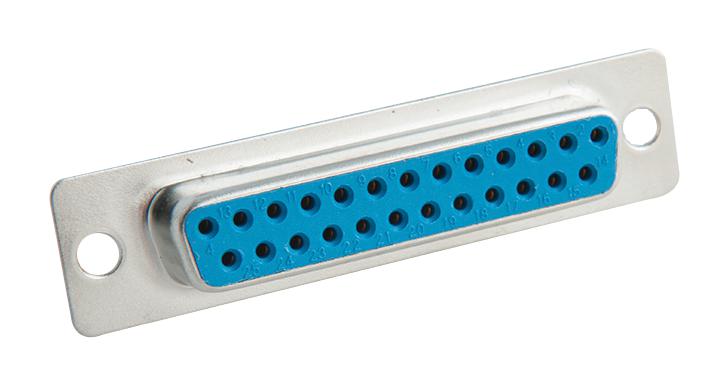

SD25S is a DB25 female solder cup D-Sub connector. Many "do it yourself" users prefer solder style D-sub connectors over crimp style. This DB25 connector conforms to commercial industry standards and will mate with any opposite gender DB25 contact. Contact plating is gold flash, connector insulator is UL94V-0 rated. Applications include serial data transmissions, data networks, instrument control and device management.
- Industry standard commercial DB25 female solder style connector
- UL94V-0 rated connector insulator satisfies flammability requirements
- Maximum wire size is 20AWG
- Gold flash plating insures repeated mating cycles
Other details
| Brand |
L-COM |
| Part Number |
SD25S |
| Quantity |
Each |
| CAD Multiple Formats EN |
 |
| Drawing EN |
|
