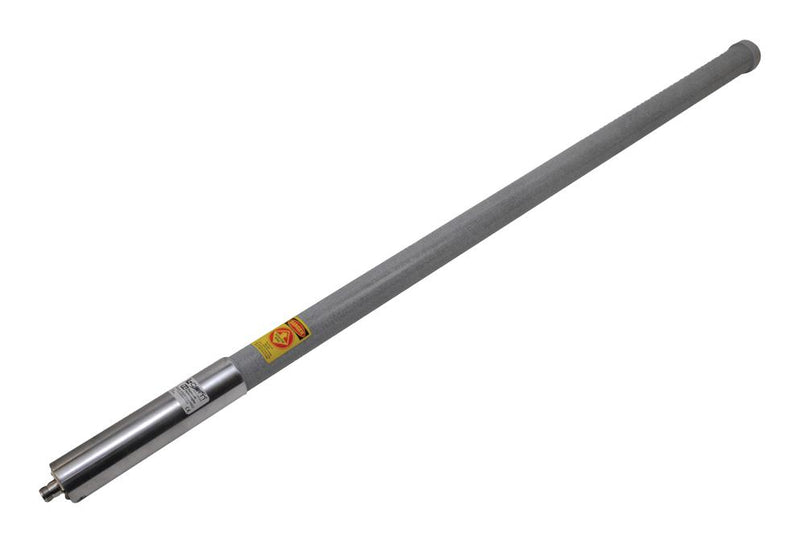

HG2415U-PRO is a 2.4GHz 15dBi omnidirectional antenna with N-Female connector. This is a professional grade antenna that can be used for commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band. A collinear antenna that utilizes a centre fed Collinear Dipole array that offers superior performance over traditional bottom fed collinear designs. A centre fed collinear has radiating elements that are more uniformly fed with signals of proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. Typical applications include 2.4GHz ISM band, Bluetooth® & public wireless Hotspot, supports IEEE 802.11b/g/n applications, Wi-Fi and 2.4GHz wireless video systems.
- Heavy-duty steel mounting brackets
- Centre fed collinear array
- Commercial grade antenna
- Integral N-female connector
- Solid brass elements
Product details
| Antenna Type |
Whip |
| Frequency Min |
2.4GHz |
| Frequency Max |
2.5GHz |
| Antenna Mounting |
Pole (Mast) or Wall |
| Gain |
- |
| VSWR |
1.5 |
| Input Power |
100W |
| Input Impedance |
50ohm |
| Antenna Polarisation |
Omni |
| Product Range |
- |
Other details
| Brand |
L-COM |
| Part Number |
HG2415U-PRO |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
| Drawing EN |
|
| CAD Multiple Formats EN |
|
