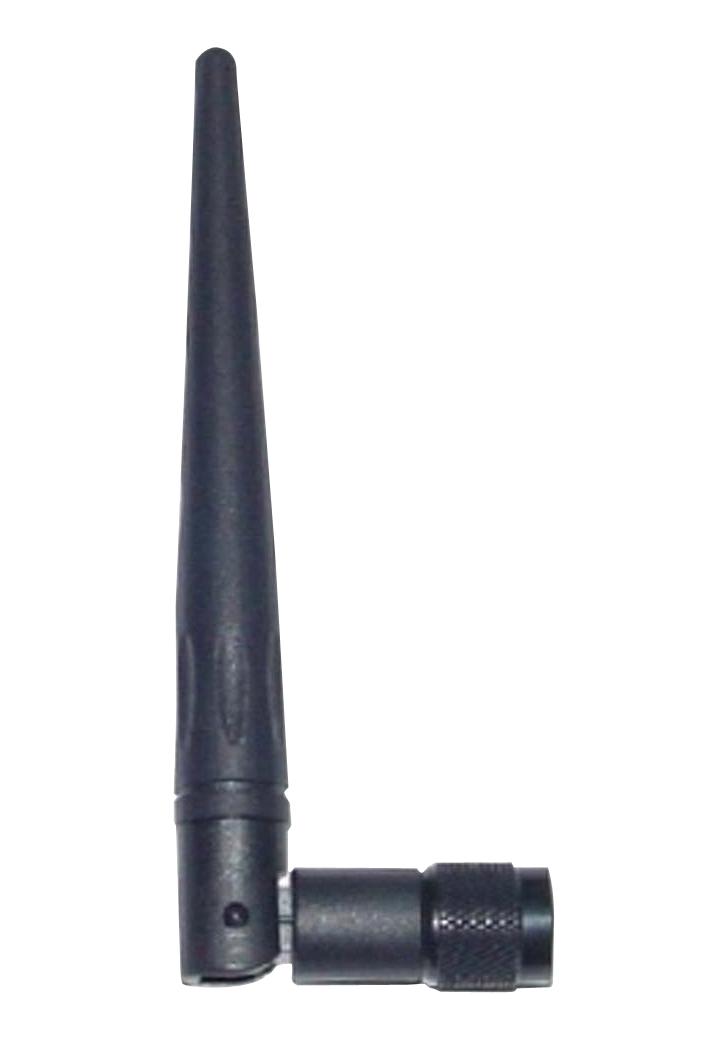

HG2403RD-RTF is a 2.4GHz 3dBi rubber duck antenna with RP-TNC connector. This compact 2.4GHz omnidirectional rubber duck antenna provides broad coverage and 3dBi gain. It is a coaxial sleeve design with an omnidirectional pattern. It is ideally suited for IEEE 802.11b/g wireless LAN and other Wi-Fi applications. 137.16mm long, this flexible antenna features a tilt-and-swivel RP-TNC Plug connector, allowing it to be used vertically, at a right angle or any angle in between. It is suitable as a replacement antenna for many access points and radios that are equipped with RP-TNC plug-detachable antennas. Typical applications include 2.4GHz ISM band, IEEE 802.11b, 802.11g wireless LAN & IEEE 802.11n (Pre-N, Draft-N) applications, public wireless hotspot, wireless video systems and multipoint and mobile applications & Bluetooth®.
- Flexible "Rubber Duck" antenna
- RP-TNC connector
- Tilt and swivel design
- Compact size, only 137.16mm long
Product details
| Antenna Type |
Swivel |
| Frequency Min |
2.4GHz |
| Frequency Max |
2.5GHz |
| Antenna Mounting |
TNC Connector |
| Gain |
3dBi |
| VSWR |
2 |
| Input Power |
- |
| Input Impedance |
50ohm |
| Antenna Polarisation |
Omni |
| Product Range |
- |
Other details
| Brand |
L-COM |
| Part Number |
HG2403RD-RTF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
