Kyocera AVX TPSD337K010R0065 TPSD337K010R0065 Surface Mount Tantalum Capacitor 330 µF 10 V 2917 [7343 Metric] ± 10% 0.065 ohm D

The TPS series from AVX are low ESR tantalum capacitors. These are robust Mn02 solid electrolyte capacitors with an ESR as low as 80mohm makes it suitable for smoothing and filtering on 3.3V power rail of general medium power DC/DC converters. These capacitors are available in 14 EIA metric case sizes of 3216-18, 3528-21, 6032-28, 7343-31, 7343-43, 6032-20, 2012-15, 2012-12, 3216-12, 3528-12, 7361-38, 6032-15, 7343-15 and 7343-20. Device with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.

• Capacitance value range from 0.15µF to 1500µF
• Available in ±10% and ±20% tolerance values
• 2.5VDC, 4VDC, 6.3VDC, 10VDC, 16VDC, 20VDC, 25VDC, 35VDC and 50VDC rated voltages available
• Operating temperature range from -55°C to +125°C
• Pure tin, tin and gold plating terminations

Applications

Industrial, Power Management, Portable Devices, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KYOCERA AVX
Part Number	TPSD337K010R0065
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

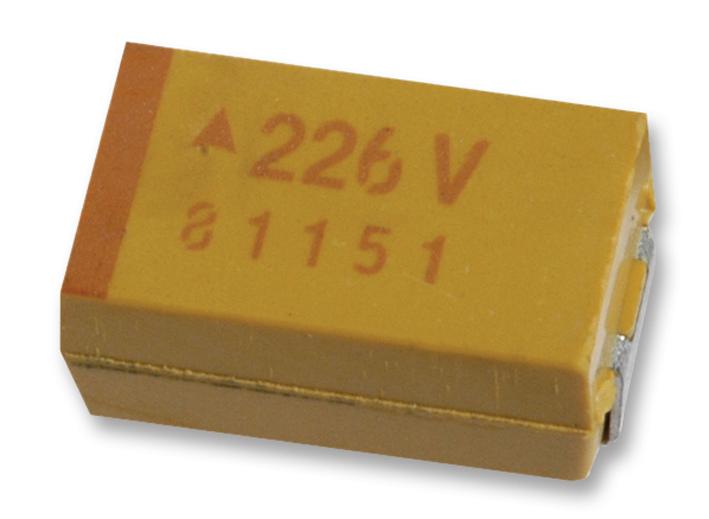

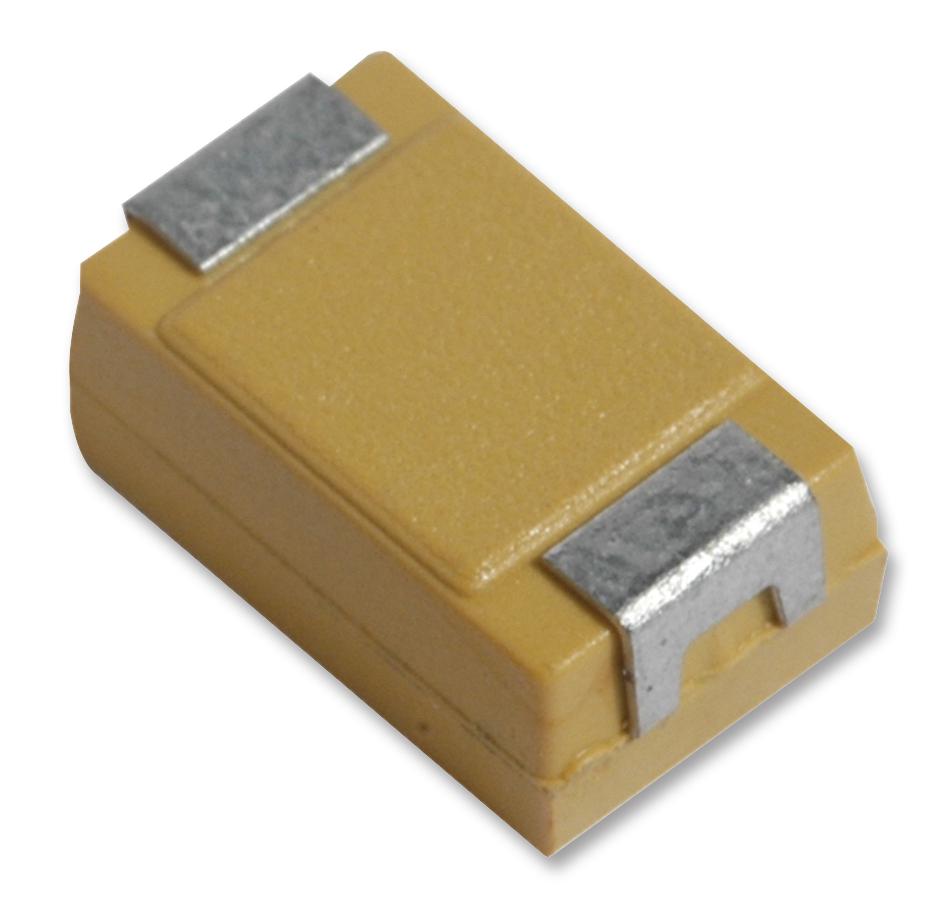

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
