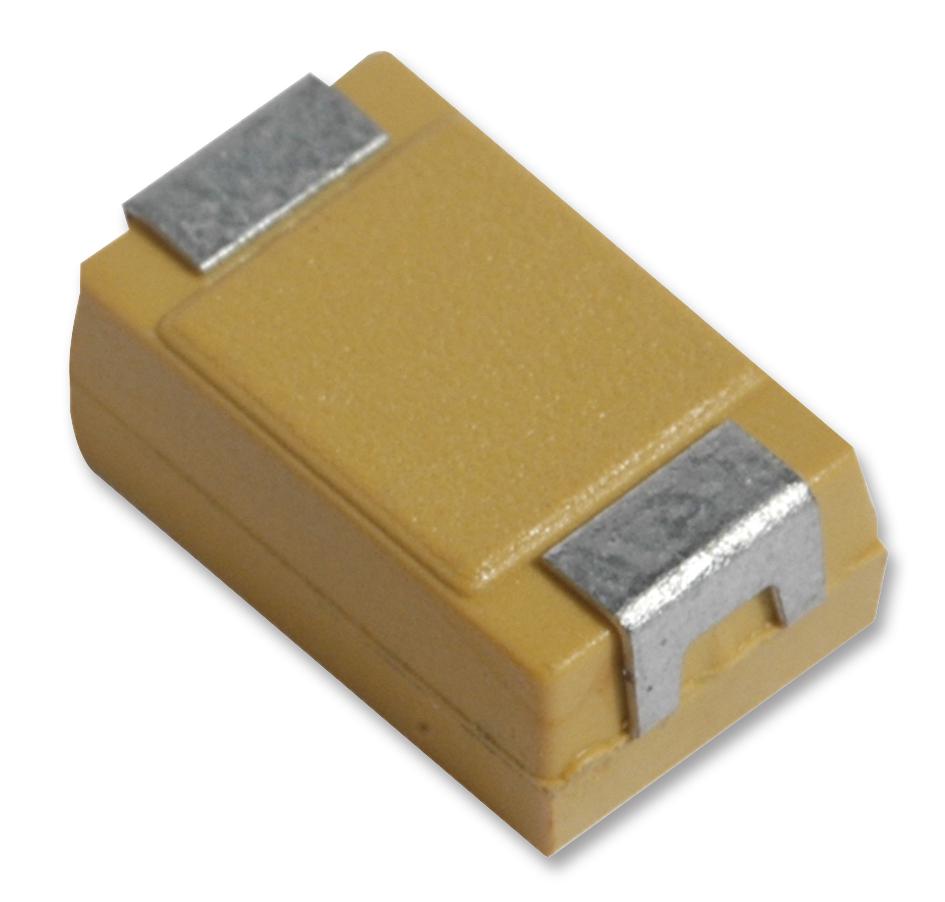

Kyocera AVX TPSD107K020R0100 TPSD107K020R0100 Surface Mount Tantalum Capacitor 100 µF 20 V 2917 [7343 Metric] ± 10% 0.1 ohm D

The TPSD107K020R0100 is a surface-mount Tantalum Capacitor with 2917 case. The TPS series capacitor is suitable for smoothing and filtering on 3.3V power rails, which is a favourite output voltage of DC/DC convertors. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements. The TPS tantalum capacitor have a maximum direct leakage current of 19.8µA and a maximum dissipation factor at 120Hz of 12%.

• Low ESR series of robust Mn02 solid electrolyte capacitor

Applications

Power Management

Other details

Brand	KYOCERA AVX
Part Number	TPSD107K020R0100
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
