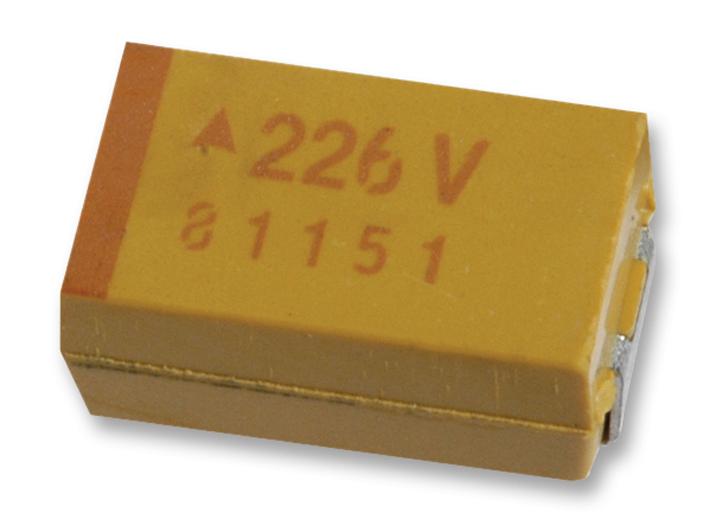

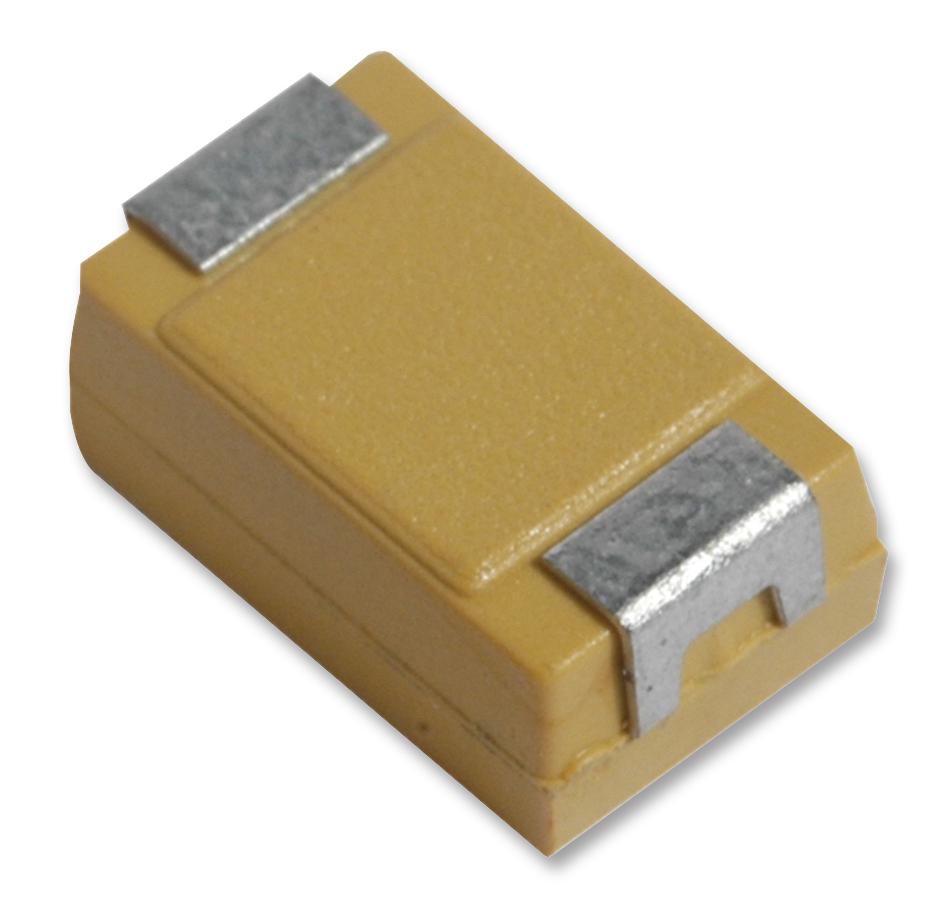

Kyocera AVX TPSD106K035R0300 TPSD106K035R0300 Surface Mount Tantalum Capacitor 10 µF 35 V 2917 [7343 Metric] ± 10% 0.3 ohm D

The AVX TPS series capacitors are low ESR, robust Mn02 solid electrolyte polarized tantalum chip capacitors. The capacitance value ranges from 0.15µF to 1500µF.

• EIA 0805, 1206, 1210, 2312, 2917, 2924 case sizes available
• Rated voltage range of 2.5VDC to 50VDC
• Available in ±10% and ±20% tolerance
• Operating temperature range of -55°C to 125°C
• Meets 55/125/56 (IEC 68-2) standard

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KYOCERA AVX
Part Number	TPSD106K035R0300
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Packaging / Drawing / Footprint EN
