Kyocera AVX 1825GC223KAT2A 1825GC223KAT2A SMD Multilayer Ceramic Capacitor High Voltage 22000 pF 2 kV 1825 [4564 Metric] ± 10% X7R

The 1825GC223KAT1A is a surface-mount (SMT) high-voltage Multilayer Ceramic Capacitor with Ni and Sn plated terminations. High value, low leakage and small size are difficult parameters to obtain in capacitor for high voltage systems. AVX special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. Larger physical sizes than normally encountered chip is used to make high voltage MLC chip products.

• Low parasitics
• Excellent EMI filtering capabilities
• Standard test level
• Standard product

Applications

Power Management, Industrial

Footnotes Capacitor with X7R dielectric is not intended for applications across AC supply mains or AC line filtering with polarity reversal. Warnings Special precautions must be taken in applying this chip in surface mount assemblies. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KYOCERA AVX
Part Number	1825GC223KAT2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Packaging / Drawing / Footprint EN
One Page Summary EN
EOL Notices EN

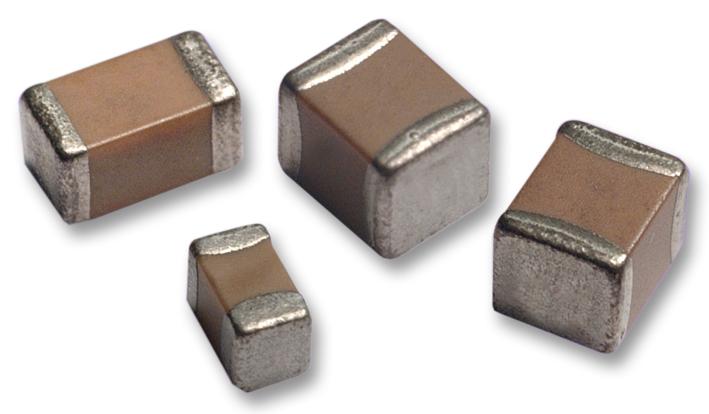

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
