Kyocera AVX 1825CC274KAZ2A SMD Multilayer Ceramic Capacitor High Voltage 0.27 µF 630 V 1825 [4564 Metric] ± 10% X7R

The 1825CC274KAZ1A is a surface-mount (SMT) high-voltage Multilayer Ceramic Capacitor with FLEXITERM® (Pure Sn) terminations. High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems. AVX special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. To make high voltage chips, larger physical sizes than are normally encountered are necessary. The FLEXITERM® layer is designed to enhance the mechanical flexure and temperature cycling performance of a standard ceramic capacitor, giving customers a solution where board flexure or temperature cycle damage is concerns.

• Low parasitics
• Excellent EMI filtering capabilities
• Low ESRs at high frequencies
• Standard test level
• Standard product

Applications

Power Management, Industrial

Footnotes Capacitor with X7R dielectric is not intended for applications across AC supply mains or AC line filtering with polarity reversal. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KYOCERA AVX
Part Number	1825CC274KAZ2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
One Page Summary EN
EOL Notices EN

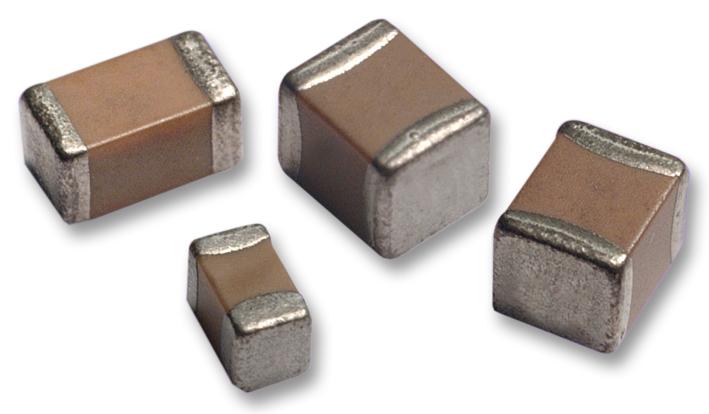

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
