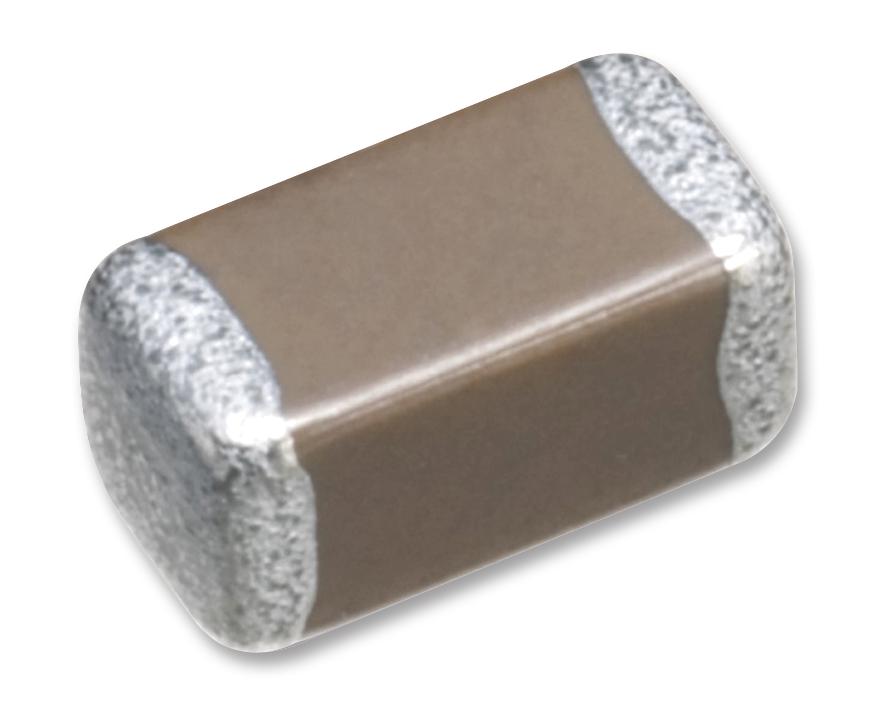

KYOCERA AVX 1812HC102MAZ2A SMD Multilayer Ceramic Capacitor, High Voltage, 1000 pF, 3 kV, 1812 [4532 Metric], ± 20%, X7R KGF43FR73U102MV

The 1812HC102MAZ1A is a surface-mount (SMT) high-voltage Multilayer Ceramic Capacitor with FLEXITERM® (Pure Sn) terminations. High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems. AVX special high voltage MLC chip capacitor meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking. This high voltage chip design exhibits low ESRs at high frequencies. To make high voltage chips, larger physical sizes than are normally encountered are necessary. The FLEXITERM® layer is designed to enhance the mechanical flexure and temperature cycling performance of a standard ceramic capacitor, giving customers a solution where board flexure or temperature cycle damage is concerns.

• Low parasitics
• Excellent EMI filtering capabilities
• Low ESRs at high frequencies
• Standard test level
• Standard product

Applications

Power Management, Industrial

Warnings

Special precautions must be taken in applying this chip in surface mount assemblies.

Notes

Special precautions must be taken in applying this chip in surface mount assemblies.
