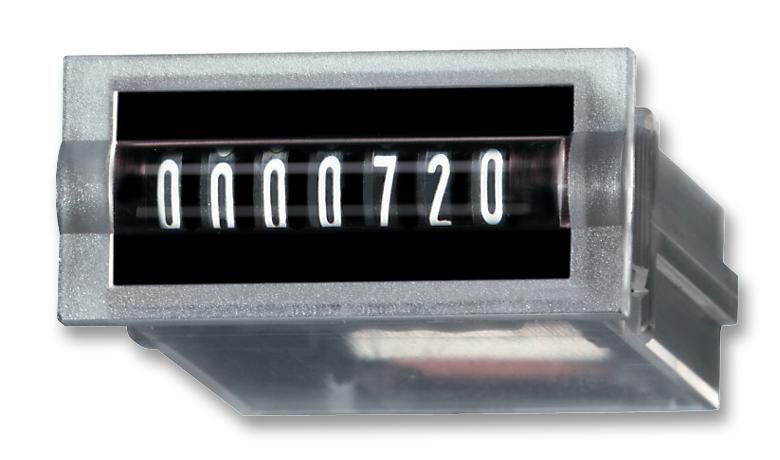

The 3.100.200.383 is a 7-digit Electromechanical Hour Meter/Timer with many different installation options (DC). It offers a particularly large number of variants and can be used in many different applications. It is available as panel-mount version latch/display front side and it can be used in many different fields of application. It has encapsulated housing and this non-resettable counter is extremely tamper-proof.
- High shock and impact resistance
- Low power consumption, suitable for battery operation
- Small dimensions - Magnified large figures
- Machine-solderable and wash-proof
- Count retention in case of power failure
- Long service life
- IP65 Protection rating
Applications
Industrial, Clock & Timing, Test & Measurement, Consumer Electronics, Lighting, Imaging, Video & Vision, Medical
Product details
| Supply Voltage Min |
4.5VDC |
| Supply Voltage Max |
35VDC |
| Time Min |
0s |
| Time Max |
99999.99h |
| Panel Cutout Height |
13mm |
| Panel Cutout Width |
30mm |
| Product Range |
- |
Other details
| Brand |
KUEBLER |
| Part Number |
3.100.200.383 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
