| ₹ 33077.2 includes GST and import duties. | |
| B2B customers can avail ₹ 5044.27 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

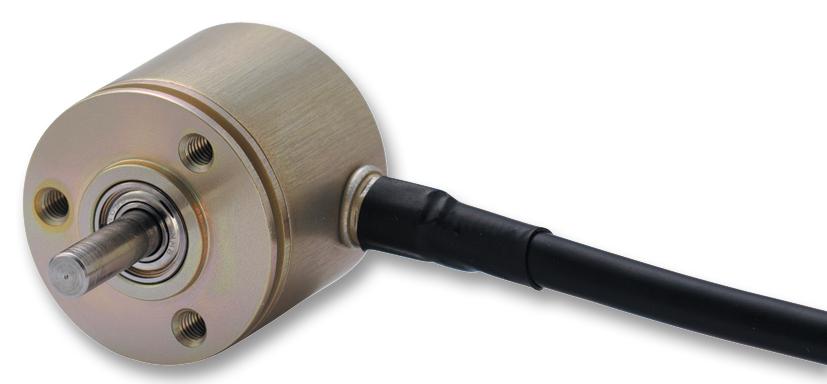

The 05.2400.1122.0050 is an incremental miniature Shaft Encoder type 2400 with their optical sensor technology offer a resolution of up to 50 PPR. With a diameter of just 24mm this encoder is ideal for use where space is tight. Ideally suited for use in small devices. Meets the certification requirements of Railways Standard EN 50121.
- Robust bearing construction
- Cable outlet boasts high degree of strain relief thanks to multiple clamping
- Short-circuit proof inputs
- Ideally suited for use in small devices
- Meets the certification requirements of Railways Standard EN 50121
- 24 mm flange
- 4 x 10 mm shaft
- Push-Pull (with inverted signal)
- Radial cable (2 m PVC cable ø 4.5 mm)
- 50 pulses
Applications
Industrial, Consumer Electronics, Medical
Product details
Other details
| Brand | KUEBLER |
| Part Number | 05.2400.1122.0050 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 32415.66 |
| 3-5 | ₹ 32084.88 |
| 5-10 | ₹ 31423.34 |
| 10+ | ₹ 30761.8 |
Bulk discount will be automatically applied during checkout based on quantity.
