- For Camcorders, DSLRs, & Recorders
- Gold-Plated 1/8" Connector
- Rean XLR Connector with Strain Relief
- Copper Spiral Shielding
- 24 AWG
- Reduces EMI, RFI, and Static Noise
- 20' Cable Length

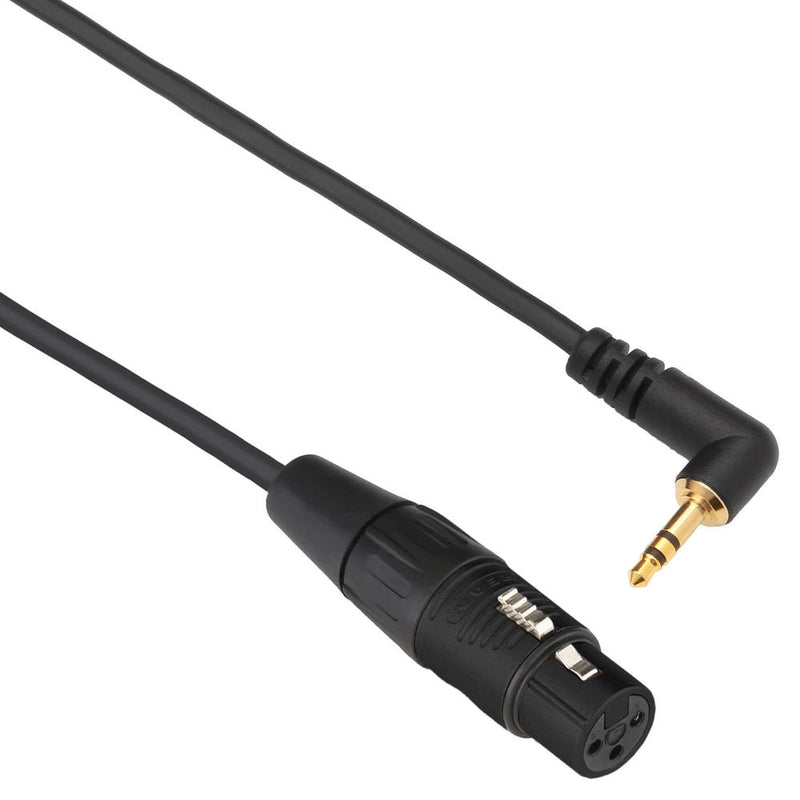

The 20' XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug from Kopul is a studio-quality cable that can be used for converting a mono-microphone or a line-level signal to a 3.5mm stereo signal for devices such as camcorders, DSLR cameras, recorders, and more. It can be utilized with dynamic mics and self-powered XLR condenser microphones.

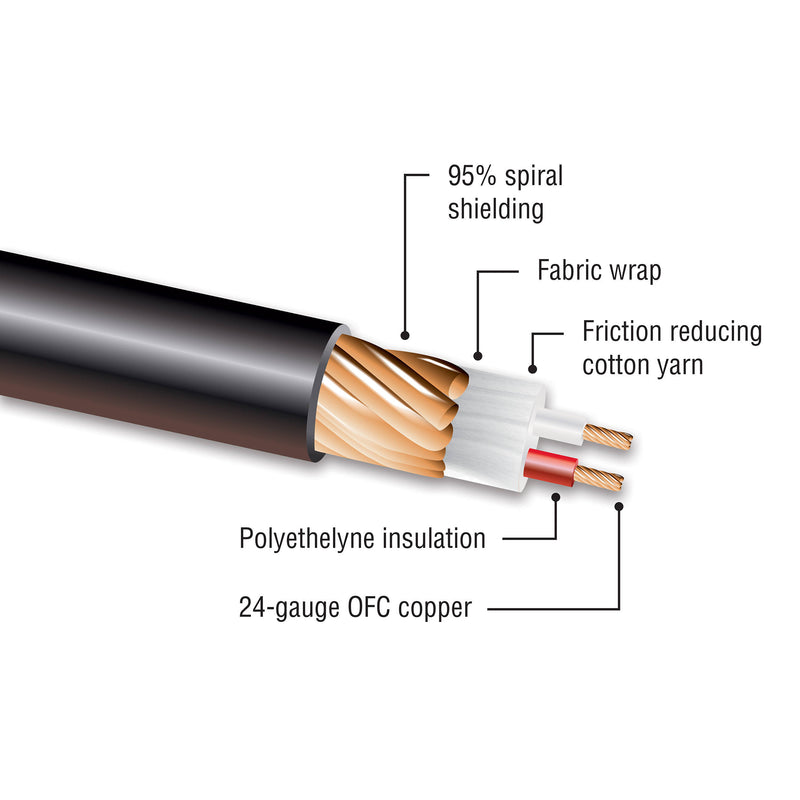

The XRSM cable is engineered to provide protection against EMI, RFI, and static noise, offering a gold-plated 1/8" (3.5mm) right-angle stereo mini-plug connector with molded strain relief, as well as a 3-pin XLR-F connector with a chuck-style strain relief by Rean. The XRSM cable is built with a 24-gauge OFC (oxygen-free conductor), copper spiral shielding, and has PE insulation, which produces a quiet cable with good conductivity ensuring a clean transfer of the audio signals.
- XLR to Mini-Plug Connection
- XLR female to stereo male mini-plug cable is ideal for connecting professional-quality microphones to the stereo mini-plug inputs for DSLR cameras, camcorders, or audio recorders
- Shielding
- The copper spiral shielding provides more than 90% coverage and offers superb rejection of radio frequency (RF) and electromagnetic (EM) interference
- Conductivity
- 24-gauge oxygen-free copper (OFC) conductors and polyethylene insulation offer excellent conductivity for a good transfer of audio signal
- Connectors
- Studio-quality gold-plated 1/8" (3.5mm) right-angle stereo mini-plug connector and a female XLR connector provide clear signal transfer
- Strain Relief
- The Rean XLR connector with chuck-style strain relief and the molded strain relief of the mini-plug connector create a durable cable
UPC: 847628596719
In the Box
Kopul XRSM 3-Pin XLR Female to 3.5mm RA Stereo Mini-Plug Cable (20')
| Cable Type | XLR/F to 1/8" (3.5 mm) stereo right-angle mini, male |
| Cable Gauge | 24 AWG |
| Connector 1 | 3-pin XLR female |
| Connector 2 | 1/8" (3.5 mm) right-angle stereo mini-plug |
| Shielding | Copper spiral shielding with > 90% coverage |
| Conductor | Oxygen-free copper |
| Temperature Rating | 176°F (80°C) |
| Voltage | 30 V |
| Dielectric (Insulation) | FPE (foam polyethylene) 0.035" / 0.9 mm OD |
| Outer Diameter | 0.2" (4.3 mm) |
| Length | 20' (6.1 m) |
| Packaging Info |
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
