- 75? 18 AWG RG6 Coaxial SDI Cable
- For 3G-SDI, HD-SDI & SD-SDI Signals
- Gold-Plated Neutrik BNC Male Connectors
- PE-Insulated OFC Conductor
- 99% Foil Inner Shielding
- 93% Dense Braided Copper Shielding
- SuperFlex PVC Jacket
- Easy Access rearTWIST Boot
- Minimal Signal Loss Transmission
- High Drop-Out / Interference Protection

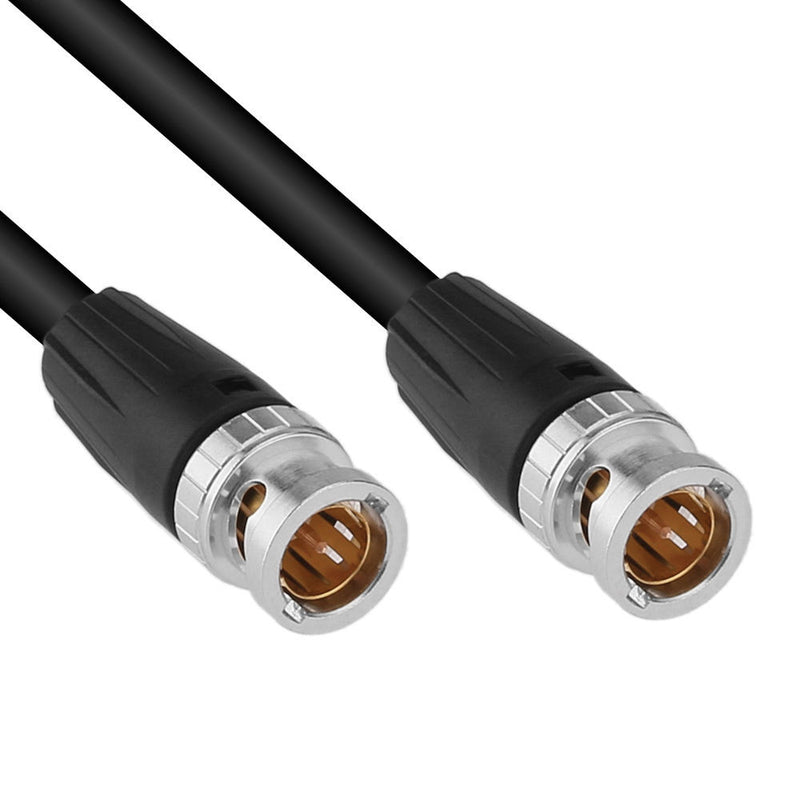

Made with high-grade RG6 cabling and gold-plated Neutrik connectors, this 3 ft Kopul Premium Series SDI Cable is designed to transmit a clean video signal end to end.
Featuring a PE-insulated OFC conductor with foil and dense braided copper shielding, the cable ensures minimum signal loss with exceptional protection against signal drop-outs and RF and EMI interference. A rugged SuperFlex PVC outer jacket provides high flexibility and durability.
The gold-plated BNC connectors are corrosion-resistant and offer improved conduction and long-lasting use. They're lockable and feature a rearTWIST boot that protects the crimp point of the cable, and allows easier access in tight spaces by letting you handle the boot instead of the connector when connecting/disconnecting.
- Key Features
-
- 75? 18AWG RG6 coaxial SDI cable
- Gold-plated Neutrik BNC male locking connectors
- Minimal signal loss and exceptional protection against signal drop-outs and RF/EMI interference
- PE-insulated OFC conductor
- 99% foil inner shielding
- 93% dense braided tinned copper outer shielding
- Flexible and durable SuperFlex PVC jacket
- rearTWIST boot for easier access in tight spaces
UPC: 847628582071
| Cable Type | 75 ? RG6 coaxial SDI cable |
| Gauge | 18 AWG |
| Connector 1 | Gold-plated Neutrik BNC male, locking |
| Connector 2 | Gold-plated Neutrik BNC male, locking |
| Length | 3 ft (0.9 m) |
| Conductor | Oxygen-free copper (OFC) |
| Inner Shield | Foil shielding with 99% coverage |
| Outer Shield | Dense braided tinned copper shielding with 93% coverage |
| Dielectric (Insulation) | Polyethylene (PE) |
| Outer Jacket | SuperFlex PVC, black |
| Certifications | CE, RoHS |
| Packaging Info |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 10.0 x 8.0 x 1.0" |
In the Box
Kopul Premium Series 3G-SDI Cable (3 ft)
