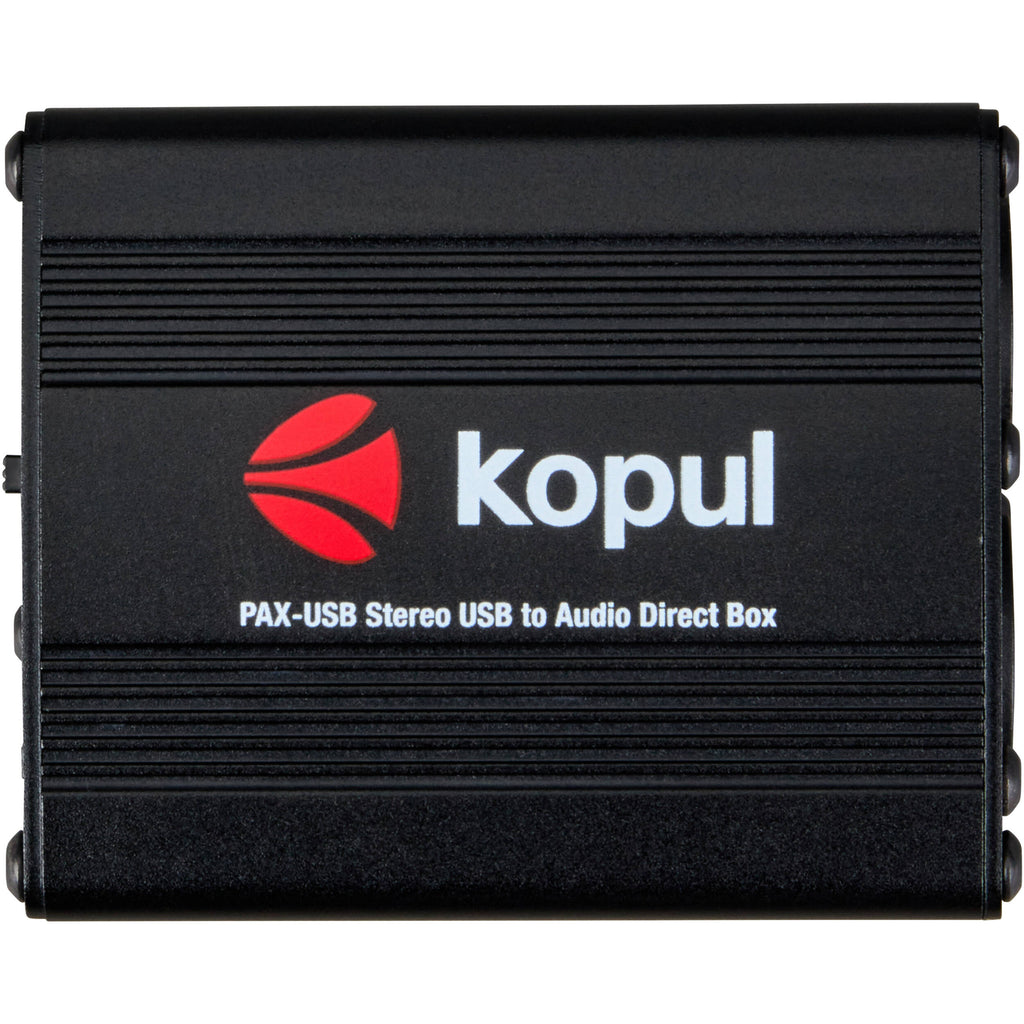

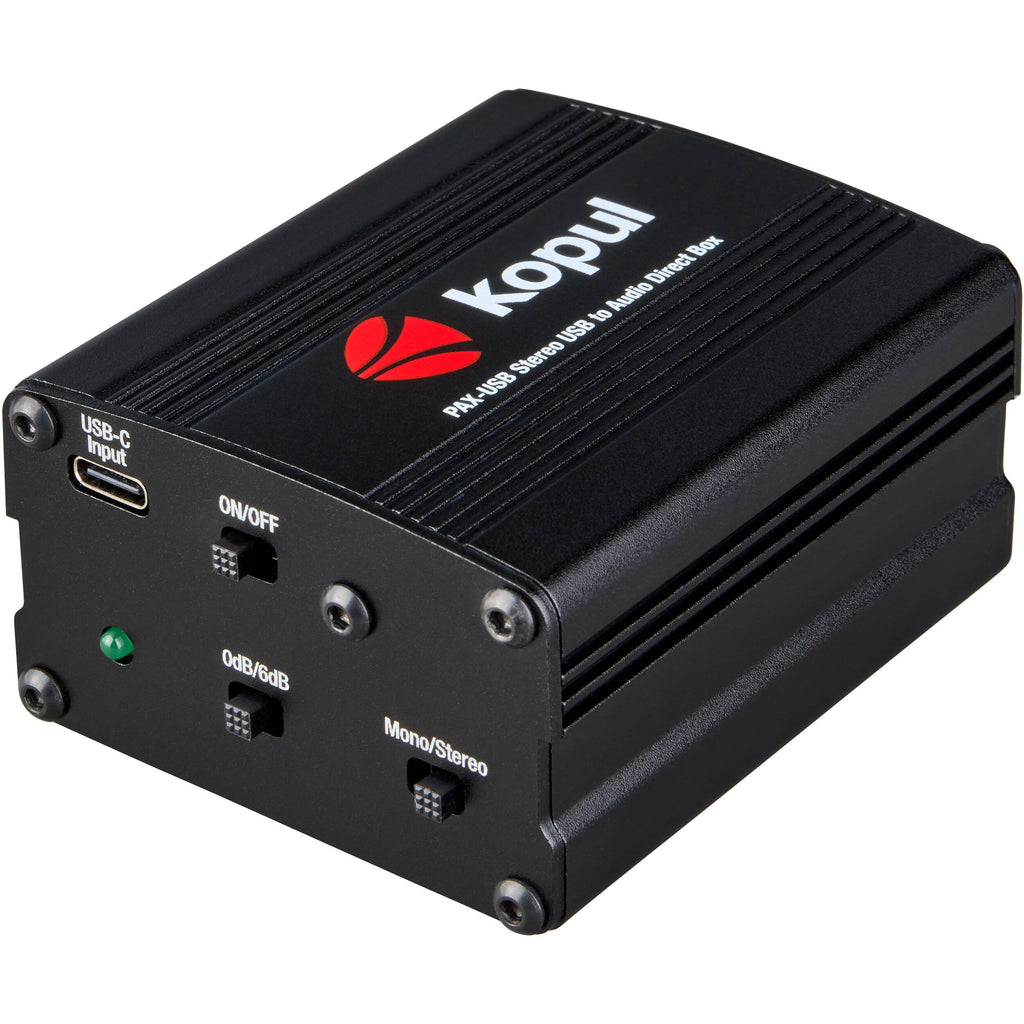

Kopul PAX-USB USB to XLR Audio Direct Box for Digital Audio to PA Systems & Mixers

Roll over image to zoom in

Kopul PAX-USB USB to XLR Audio Direct Box for Digital Audio to PA Systems & Mixers


	₹ 15270.0 includes GST and import duties.
	B2B customers can avail ₹ 2328.68 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Kopul
SKU:	7441137827925
MPN:	PAX-USB
UPC/HSN:	847628530119

Share this product

Kopul PAX-USB Overview

Ideal for playing prerecorded audio from a computer or smart device over PA systems in live event scenarios, the Kopul PAX-USB is a 2-channel DI box sporting a USB-C audio input and two balanced XLR 3-pin analog audio outputs. From flying in tracks from your devices to a multi-track recorder to spicing up concerts with computer audio, this DI box offers a versatile plug-and-play solution.

The transformer-isolated outputs are complimented by ground lifting to ensure minimal noise from electromagnetic interference, grounding loops, and high-frequency hissing. Switchable functions include a manual on/off switch, a +6 dB boost, and a stereo-to-mono sum function that sums your stereo signal into two mono channels. High-quality DAC circuitry provides pristine 16-bit / 48 kHz digital audio and clean conversion to analog, avoiding signal loss, coloration, and noise. The DI box requires no power adapters and is powered directly from the USB device. And with a rugged metal construction, the PAX-USB is ideal for rigorous live applications. The PAX-USB includes a USB-C cable.

For Computer Audio

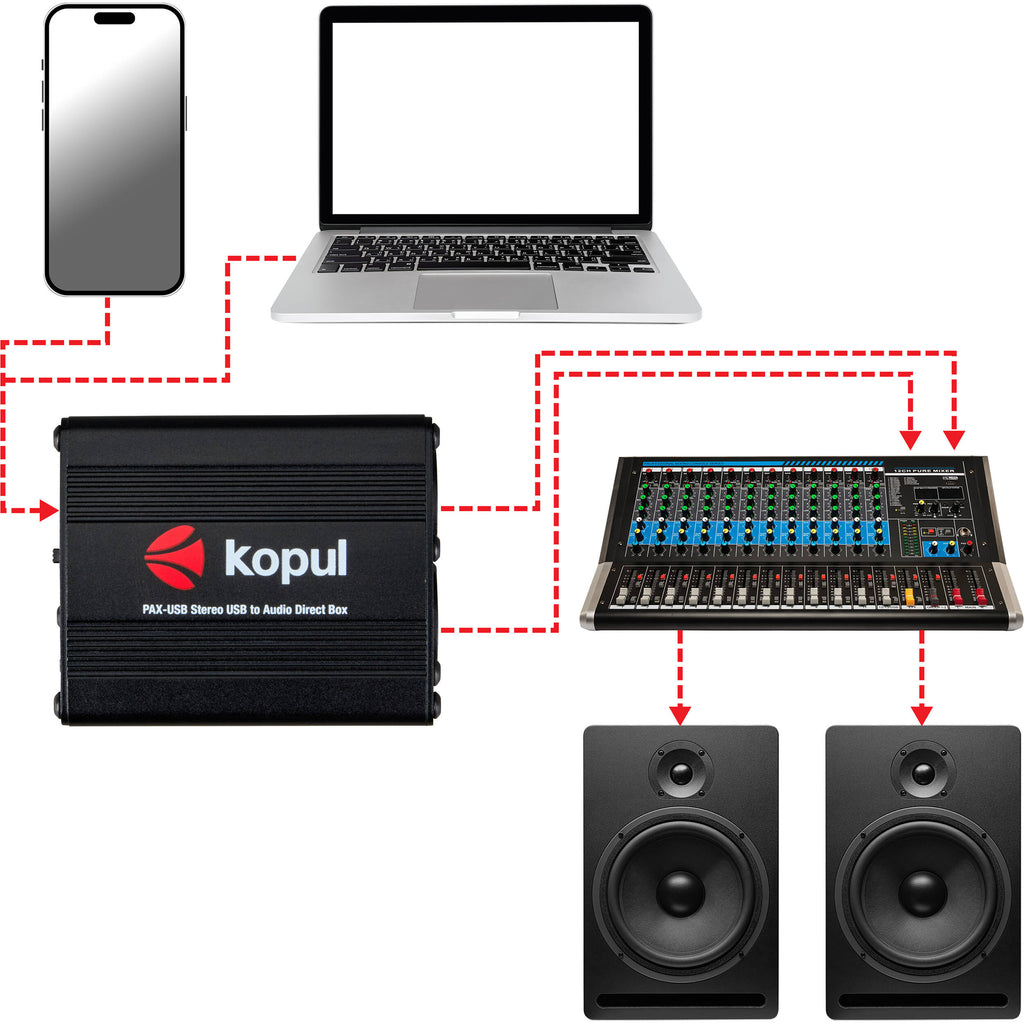

The PAX-USB Direct Box plugs into a USB port and converts your computer's digital audio to an analog signal that you can send to a recording device, PA system, or mixing board. Add the audio you recorded or sequenced on your computer to a recording session, or play tracks from your smartphone to a PA system for live events, concerts, or clubs. If you thought the only way to send your computer's audio to a PA system or mixing board was via the headphone output jack, you'll be thrilled to know about the PAX-USB.

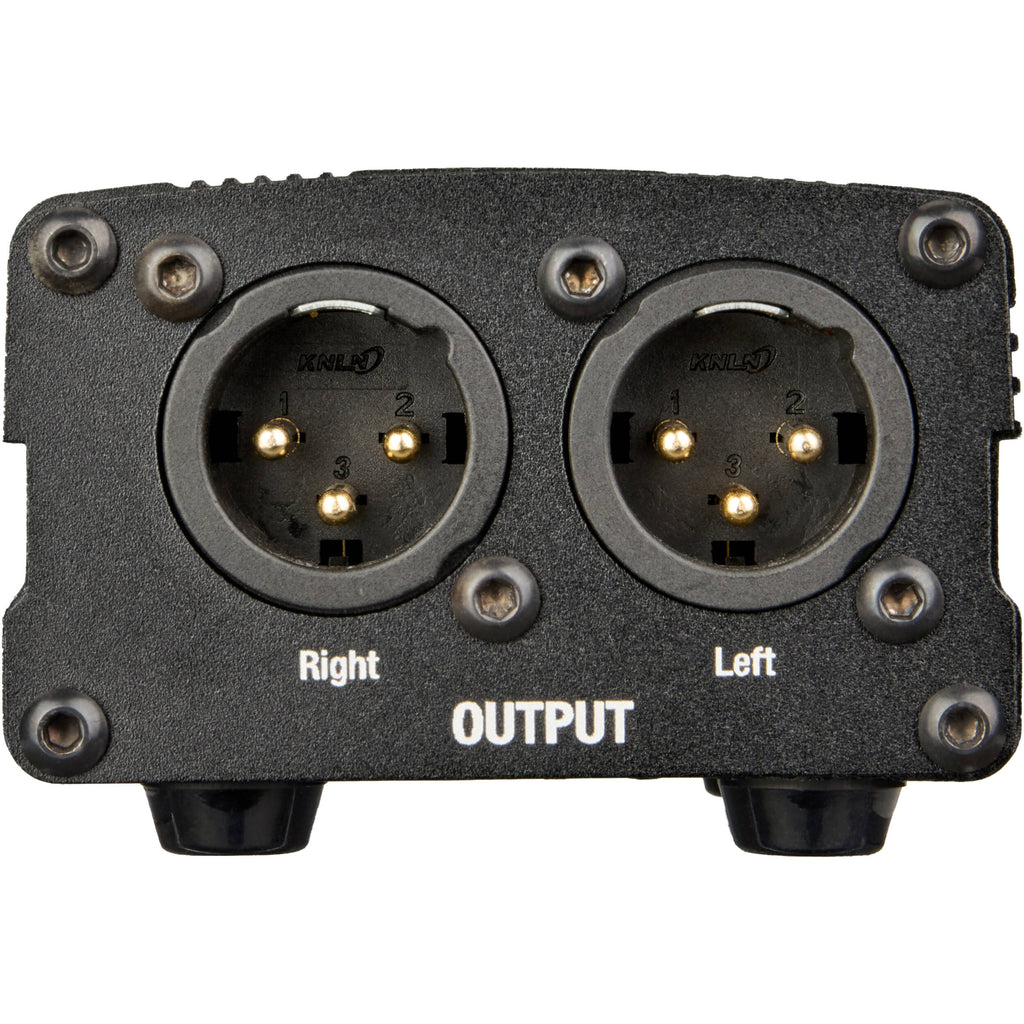

Balanced XLR Outputs

The XLR outputs send a balanced signal that's free of radio frequency and electromagnetic interference. Even on long cable runs that traverse a studio or stage with audio and lighting cables, your tracks will reach the PA system or recorder in pristine condition.

Transformer Isolation

The PAX-USB is made with transformer-isolated balanced stereo outputs that will eliminate unwanted hum from ground loops. This feature is useful when feeding computer audio to a live sound system, especially when a projector is connected to your computer. Isolation transformers are also extremely effective at reducing high-frequency noise, so your audience won't hear unwanted hiss either.

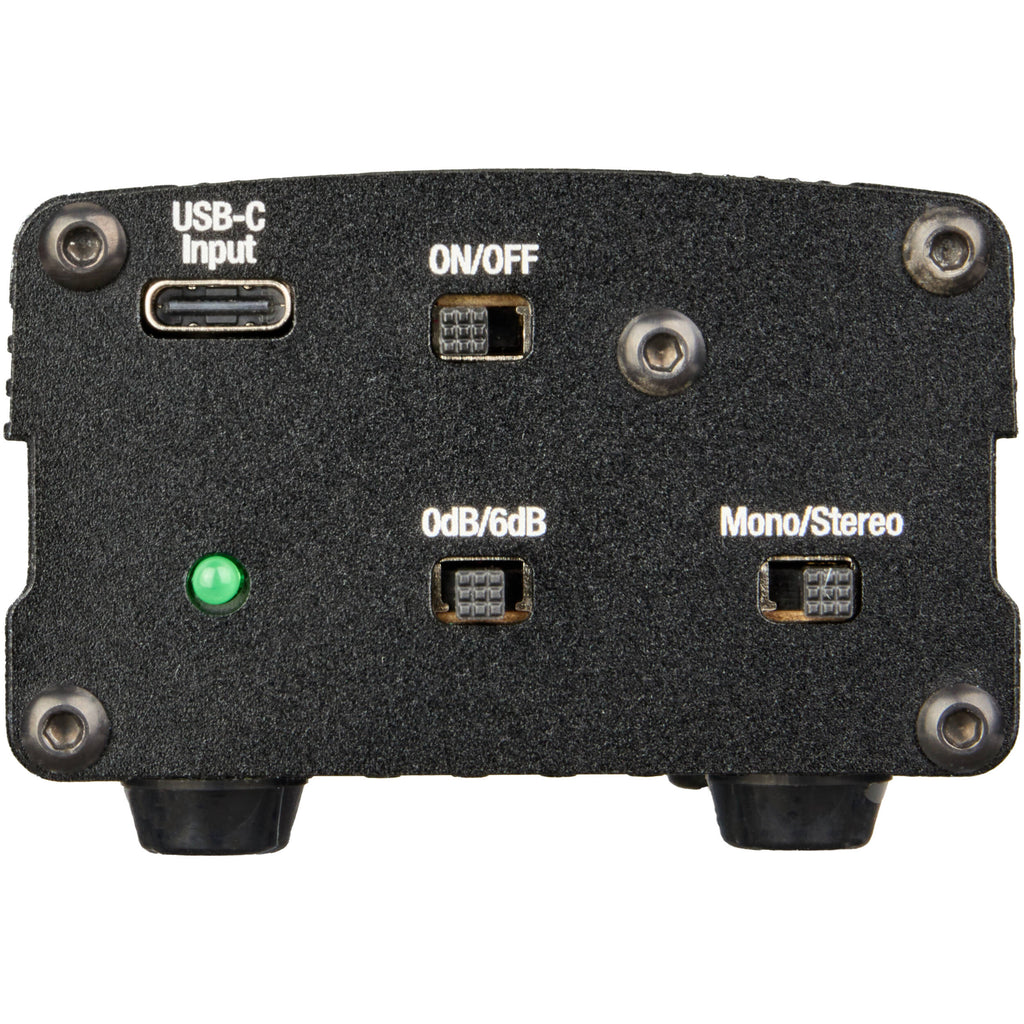

Mono-Stereo Switch

When the stereo output option is selected, the PAX-USB outputs a 2-channel stereo signal. But when you're feeding audio to a PA system, you have the option of summing your stereo mix and sending two mono tracks to each speaker. Even if you're using only one PA speaker with your system, your audience will hear a full mix no matter where they're sitting.

Bus Powered

The PAX-USB doesn't need a power cable or an external power source. It runs on the power from your USB port, so no matter where you are, you can use this direct box to feed the audio to a PA or mixer.

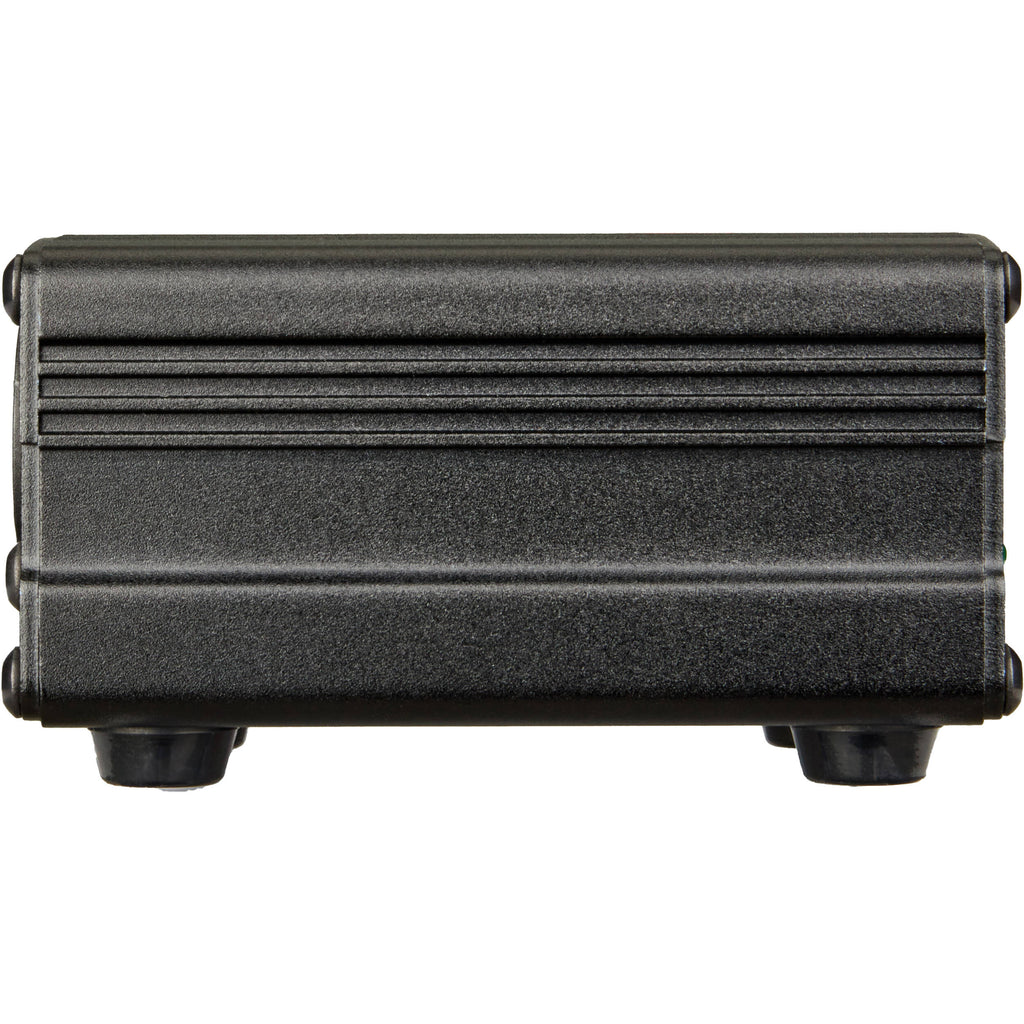

Rugged Metal Construction

This direct box features rugged metal construction. It's road-ready whether it's rattling around in a gear bag, guitar case, or in your coat pocket.

UPC: 847628530119

Items Included

Kopul PAX-USB USB to XLR Audio Direct Box for Digital Audio to PA Systems & Mixers

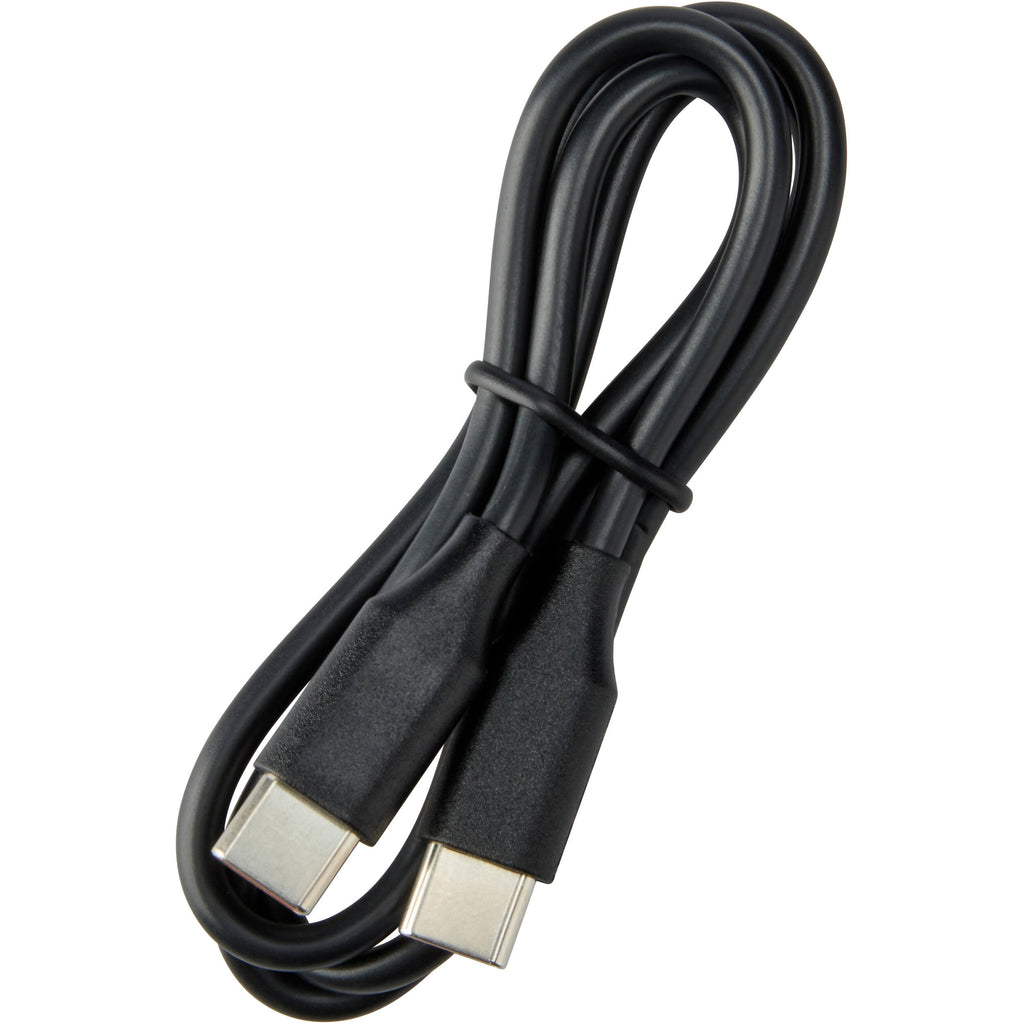

USB-C Cable
Limited 1-Year Manufacturer Warranty

Additional Resources

User Manual

0.4 MB

Kopul PAX-USB Specs

General

Item Type	Standard DI
Number of Channels	2-Channel
Active/Passive	Active
Circuitry	Solid-State

Preamp

Pad	No
Ground Lift	Yes
Polarity Reverse	No
Gain/Trim Range	+6 dB

EQ & Tone Shaping

Low-Cut/High-Pass Filter

Connectivity

Audio I/O	2x XLR 3-Pin Balanced Line Output
Merge/Summing	Selectable Stereo or Summed-Mono Output per Channel
USB I/O	1x USB-C (Audio)

Performance

Frequency Response	20 Hz to 20 kHz
Output Impedance	600 Ohms

Physical

Dimensions	3 x 2.5 x 1.5" / 7.6 x 6.3 x 3.8 cm
Weight	0.4 lb / 0.2 kg

Packaging Info

Package Weight	0.56 lb
Box Dimensions (LxWxH)	4.9 x 3.8 x 2.9"

All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 14964.6
3-5	₹ 14811.9
5-10	₹ 14506.5
10+	₹ 14201.1

Bulk discount will be automatically applied during checkout based on quantity.
