Description
Kopul EX-HDMI-4K Overview

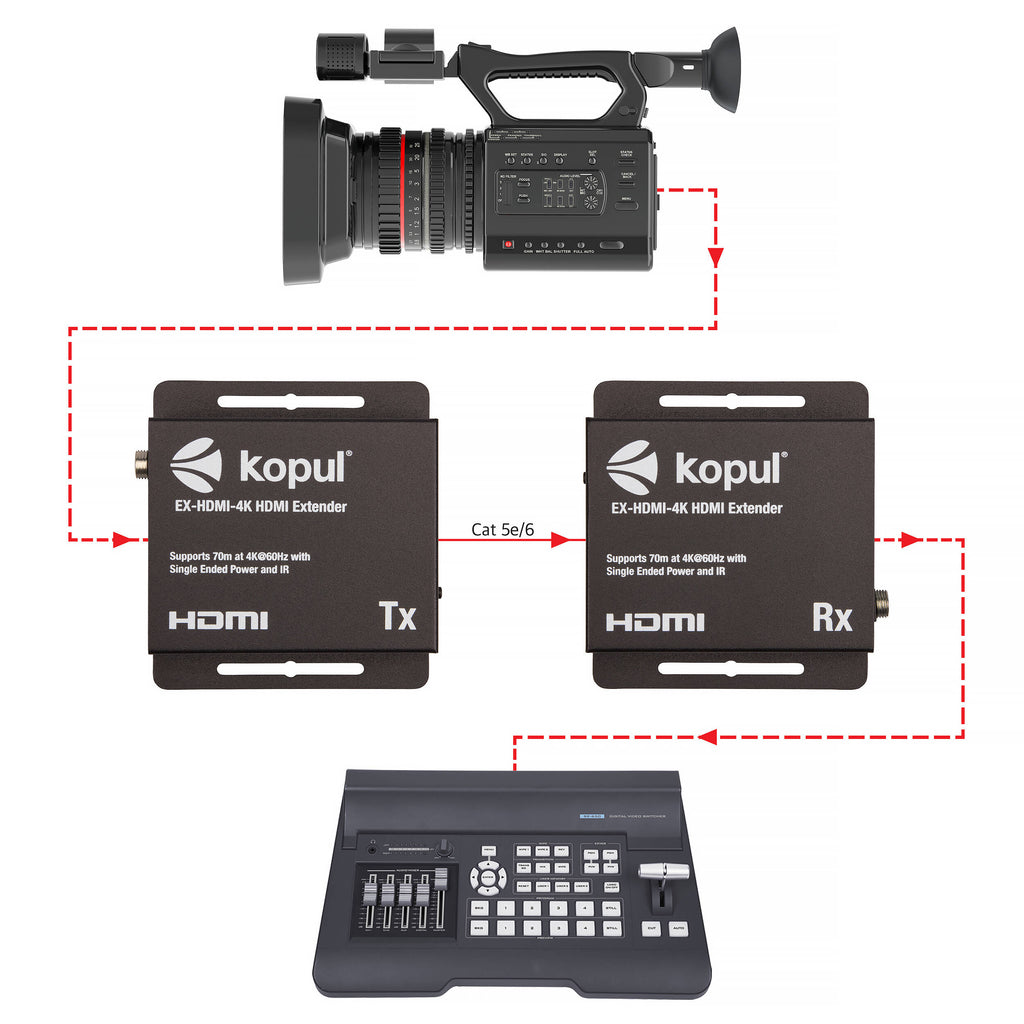

The HDMI 4K Extender from Kopul allows high-quality HDMI video and audio signals from an HDMI media source to be transferred to a second location over an Ethernet cable with a range of up to 230'. It is an ideal and economical solution that replaces expensive and heavy HDMI cables for use at live events, in home theaters, houses of worship, and in home surveillance systems. This transmitter and receiver kit will transmit a signal up to 4k60 resolution without latency or signal loss over a Cat 5e/6 Ethernet cable. The transmitter and receiver can connect a remote camera to a switcher or a presenter to a back-of-house projector. The two devices are powered by a single power supply, making setup easy and effortless.

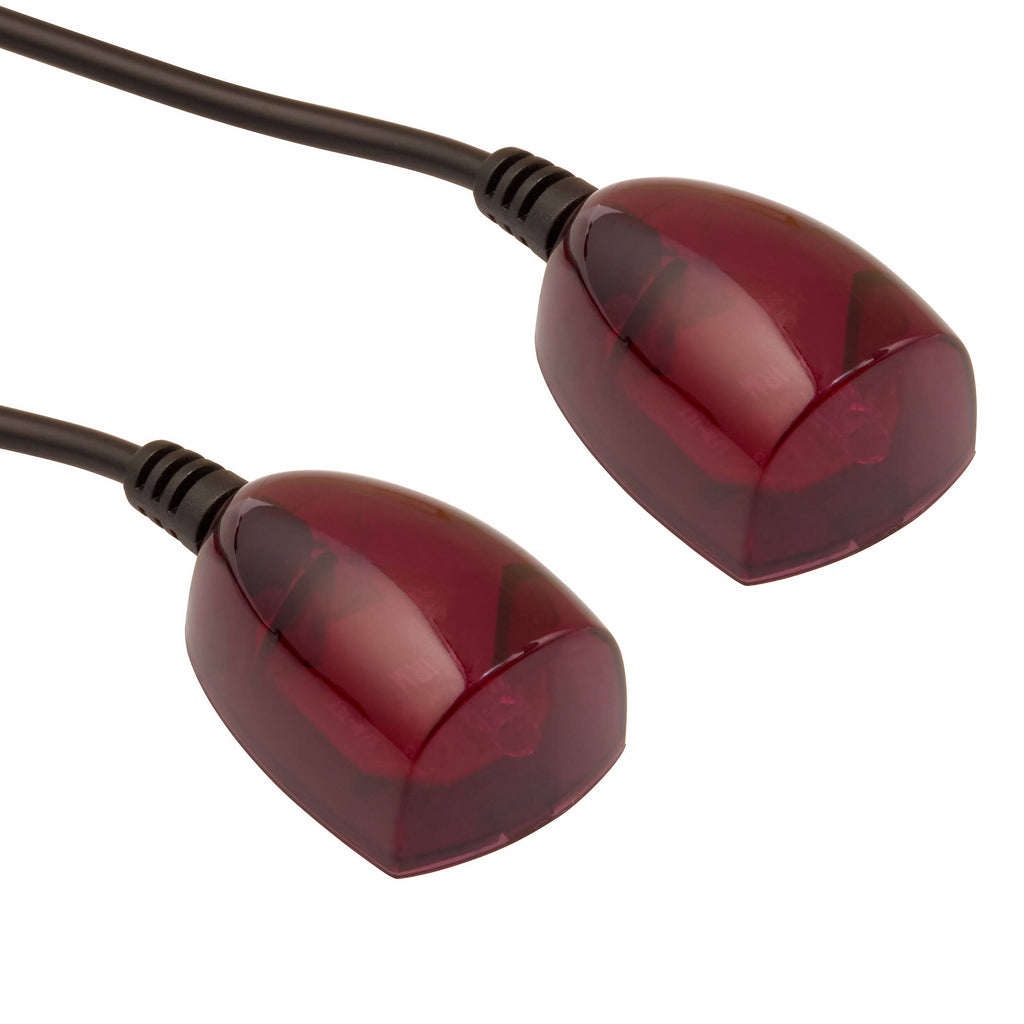

The extender kit includes an IR receiver and transmitter that extends the range of any device's IR remote control, so you can operate playback or source devices like a DVD or Blu-ray player from the front of an auditorium or a lectern, up to 230' away. Sturdy metal construction makes the 4K extender kit road-ready and perfect for transport and remote setups.
- HDCP 1.4
- HDCP 2.2
- HDR10
- HLG High Dynamic Range (HDR)
- 4K60 Hz
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
- HDMI female input
- RJ45 female
- 3.5mm female IR output
- Barrel connector power input
Receiver Ports
- HDMI female input
- RJ45 female
- 3.5mm female IR output
- Barrel connector power input

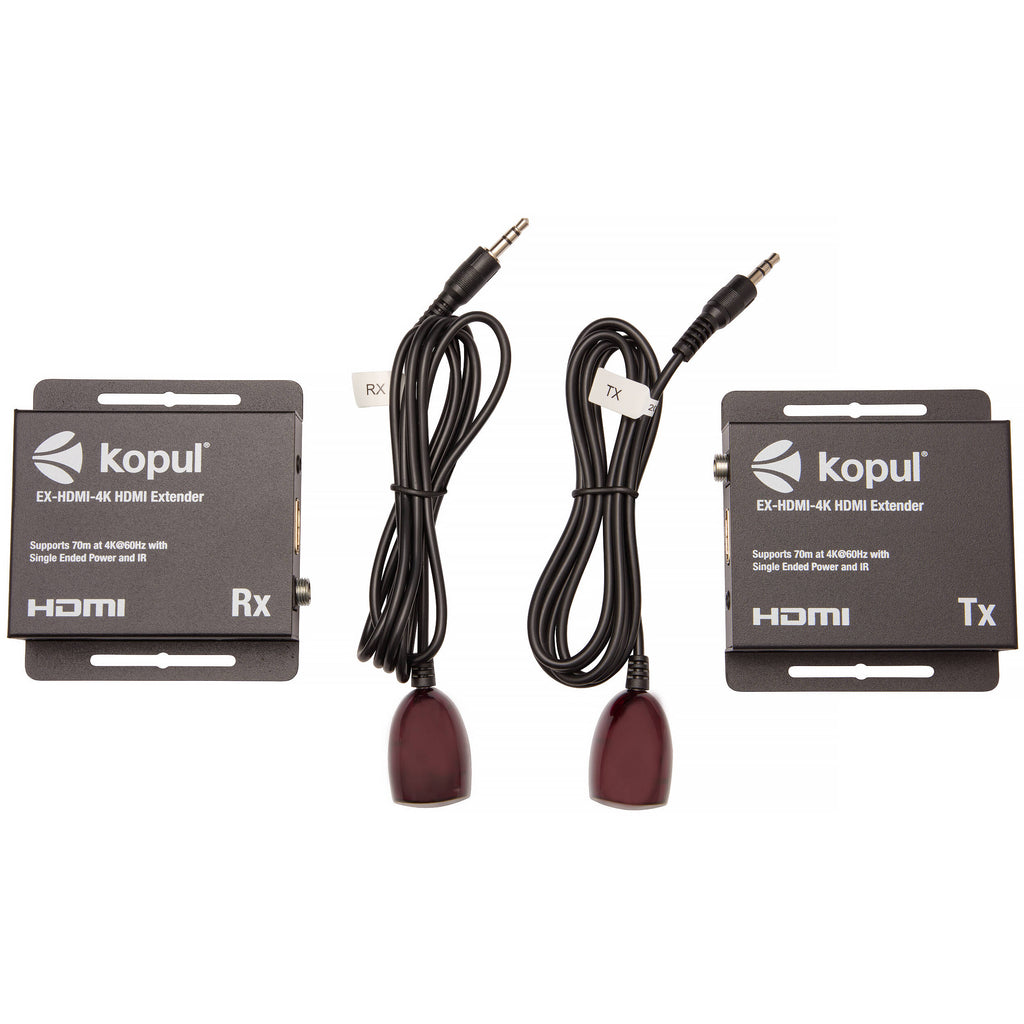

Items Included
- Kopul HDMI 4K Extender
- HDMI Transmitter
- HDMI Receiver
- IR Input Cable
- IR Blaster Cable
- Multivoltage AC Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
Kopul EX-HDMI-4K Specs
| Inputs |
1x HDMI Female
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45
|
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Output
|
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
|
| HDR Support |
Yes: HDR10/Hybrid Log Gamma
|
| HDCP Support |
Yes: Version 2.2
|
| Max Transmission Distance |
UHD 4K at 60 Hz:
230' / 70.1 m |
| Video Format |
HDMI :
4096 x 2160: 60 fps 1920 x 1080p 1920 x 1080i 1280 x 720p 720 x 576p 720 x 576i 720 x 480p 720 x 480i |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS, Dolby Digital
|
| Supported Cable Types |
Cat 5e/6
|
| Latency |
No
|
| Transmitter Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| Transmitter Power Consumption |
100 to 240 VAC (1.3 W)
|
| Receiver Power Consumption |
100 to 240 VAC (1.6 W)
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 5 to 90% Humidity
|
| Storage Conditions |
32 to 122?F / 0 to 50?C at 5 to 90% Humidity
|
| Transmitter Dimensions |
3 x 2.4 x 0.7" / 76.2 x 61 x 17.8 mm
|
| Receiver Dimensions |
3 x 2.4 x 0.7" / 76.2 x 61 x 17.8 mm
|
| Transmitter Weight |
4.2 oz / 119 g
|
| Receiver Weight |
4.2 oz / 119 g
|
| Package Weight |
1.095 lb
|
| Box Dimensions (LxWxH) |
9.9 x 4.7 x 2.4"
|
