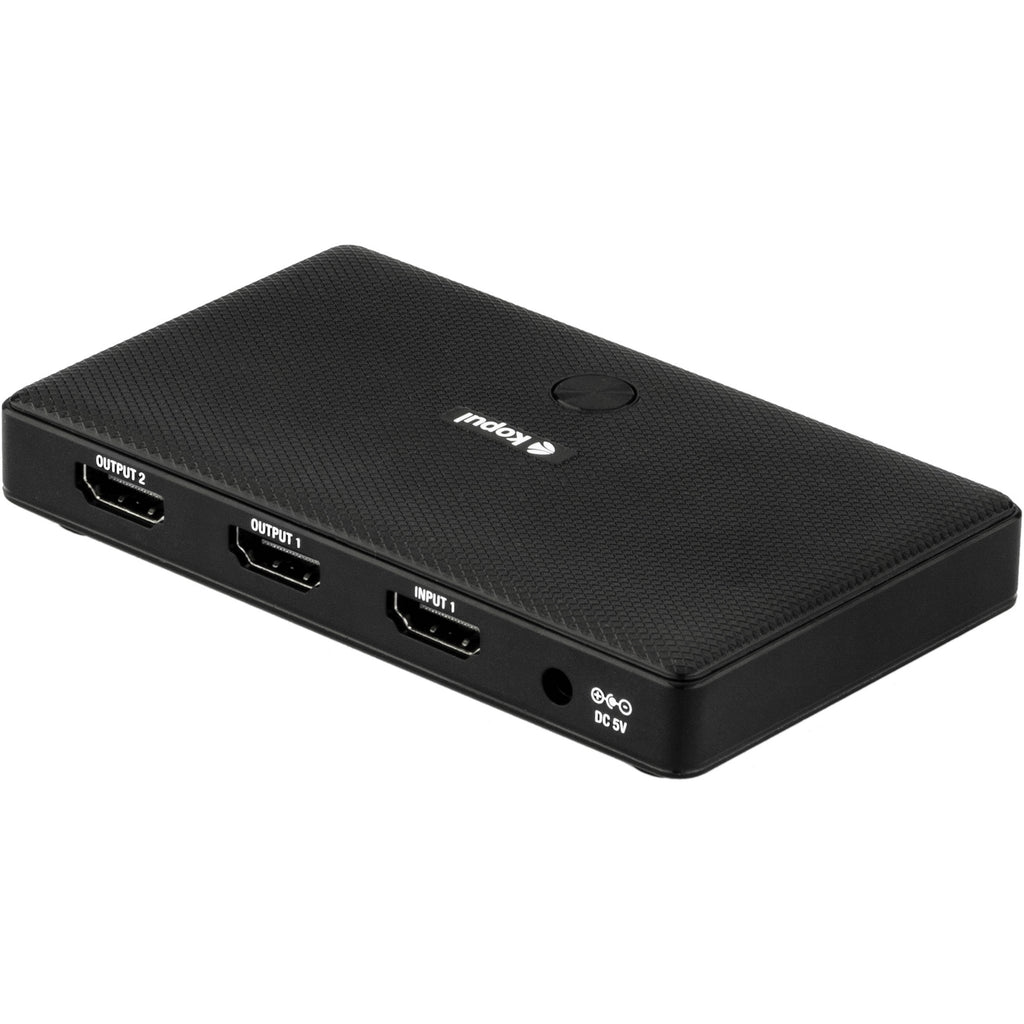

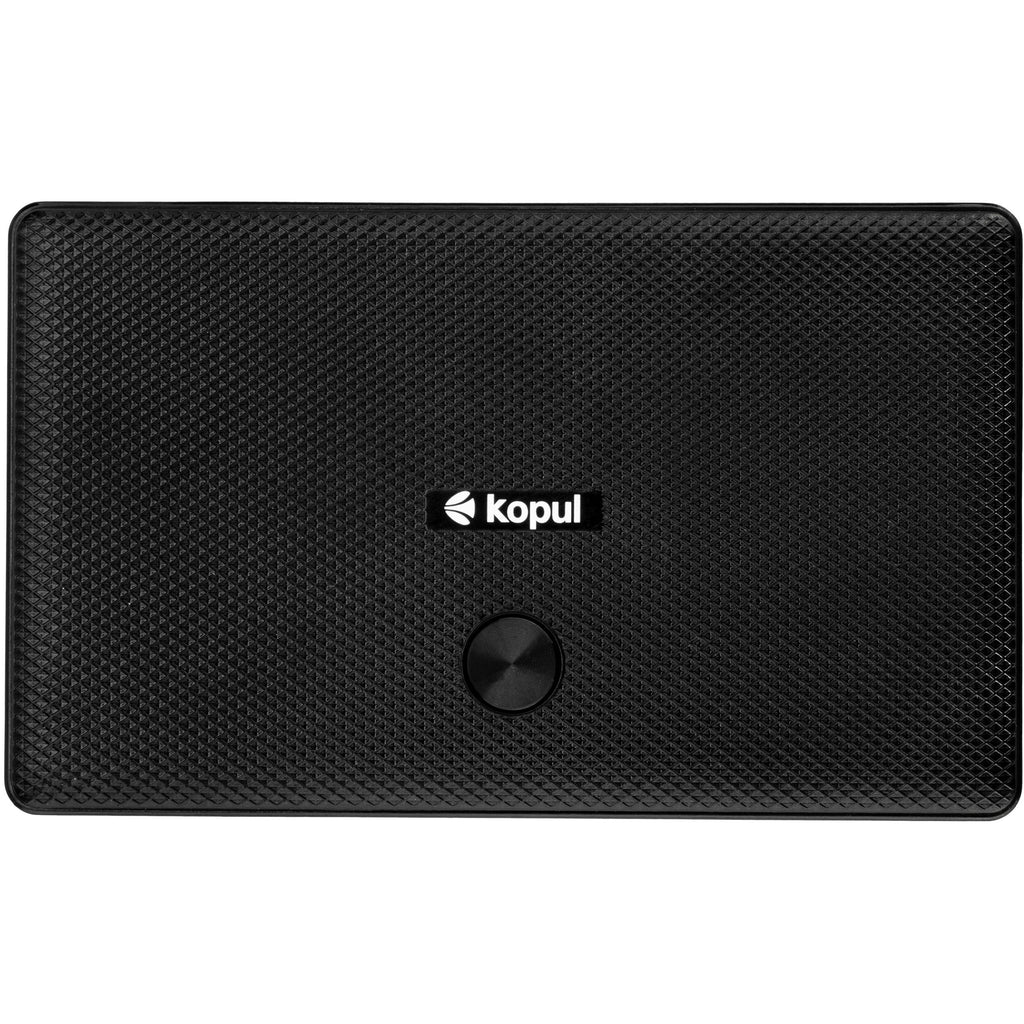

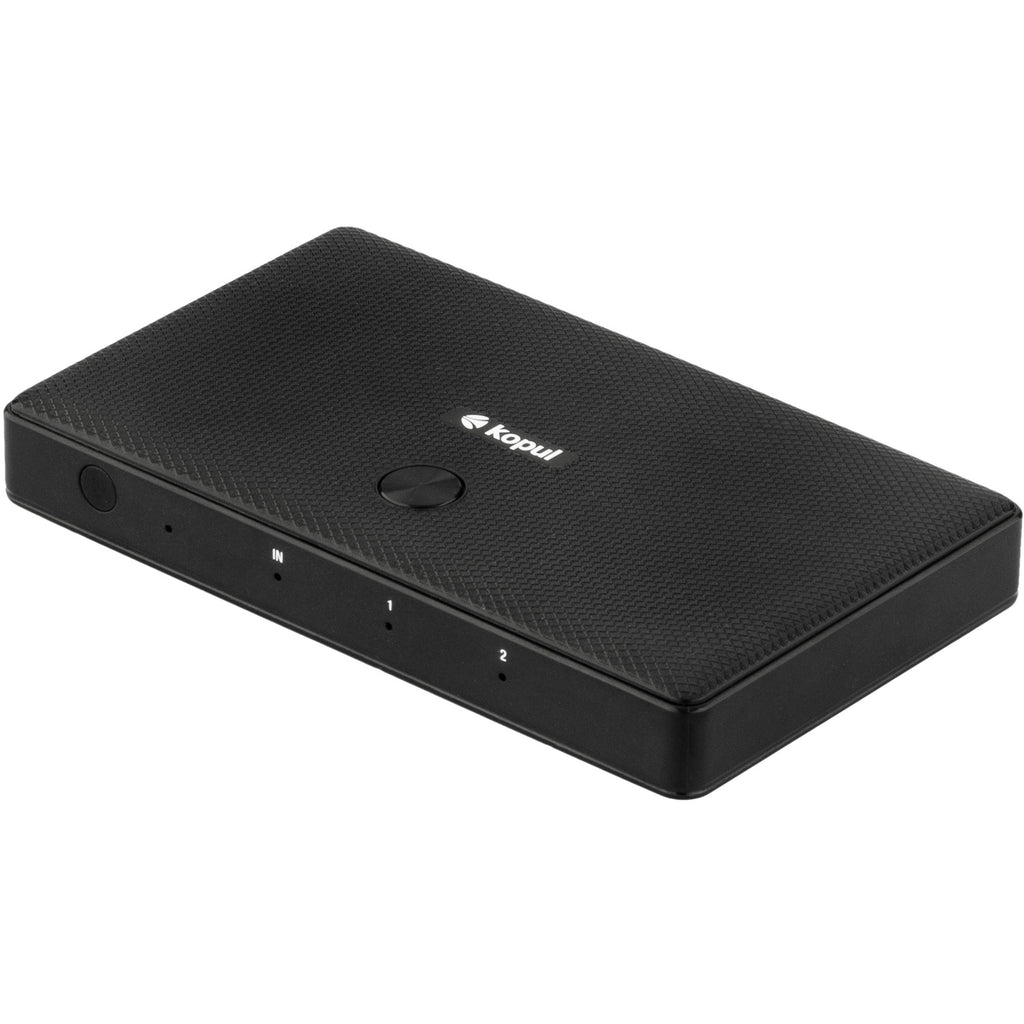

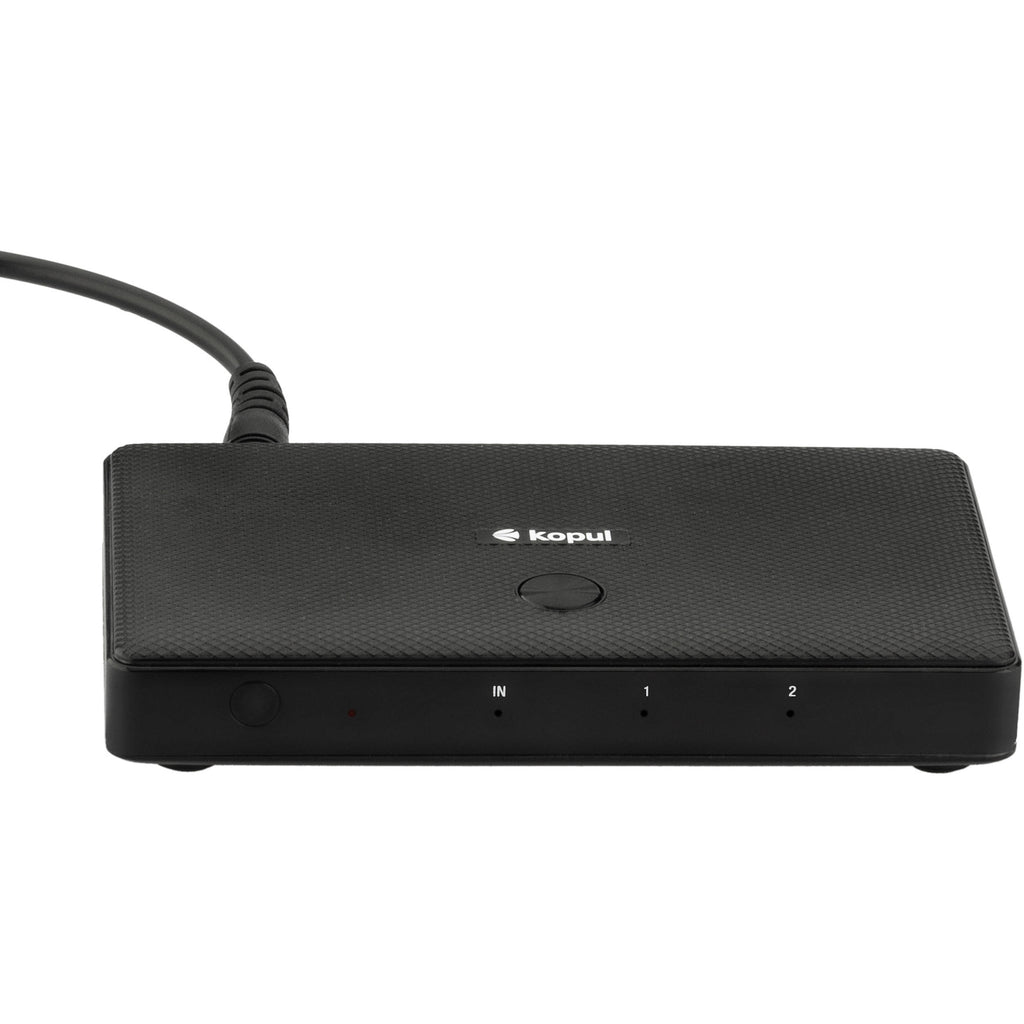

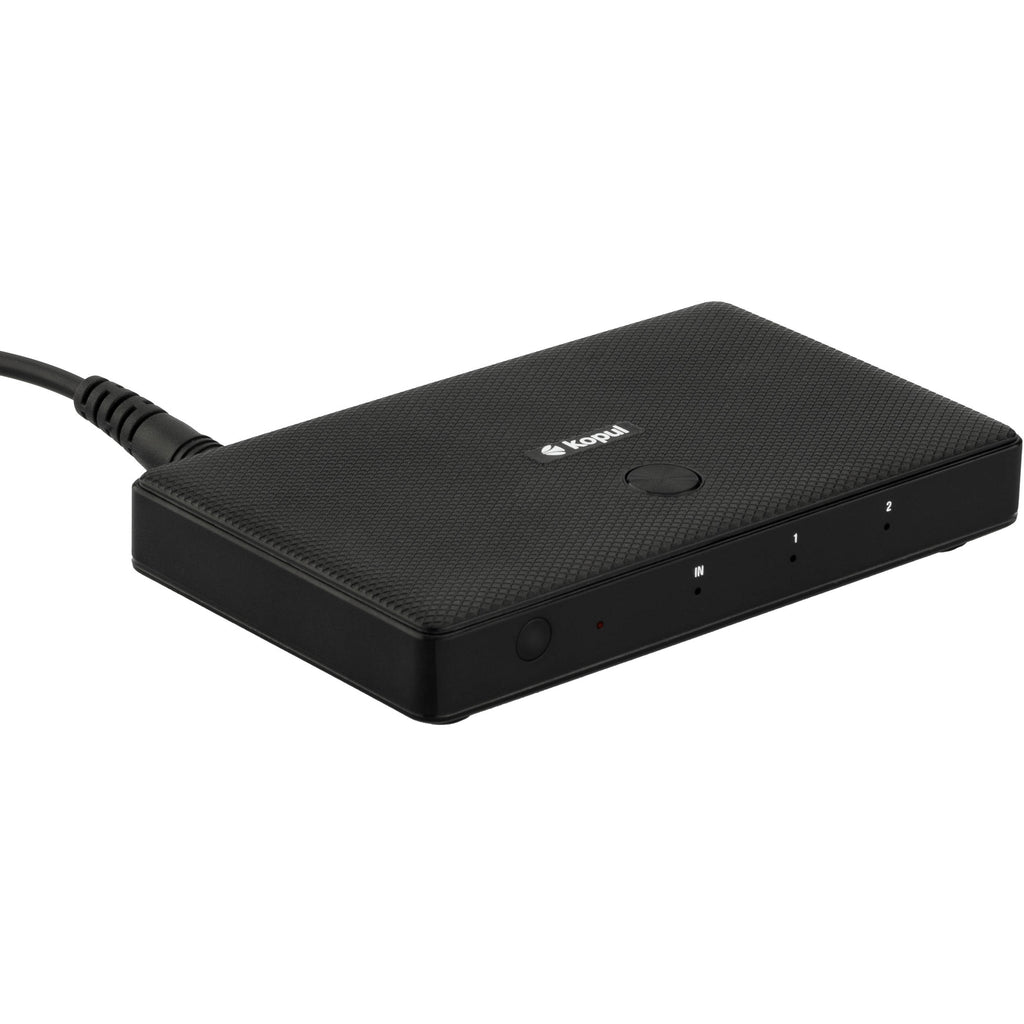

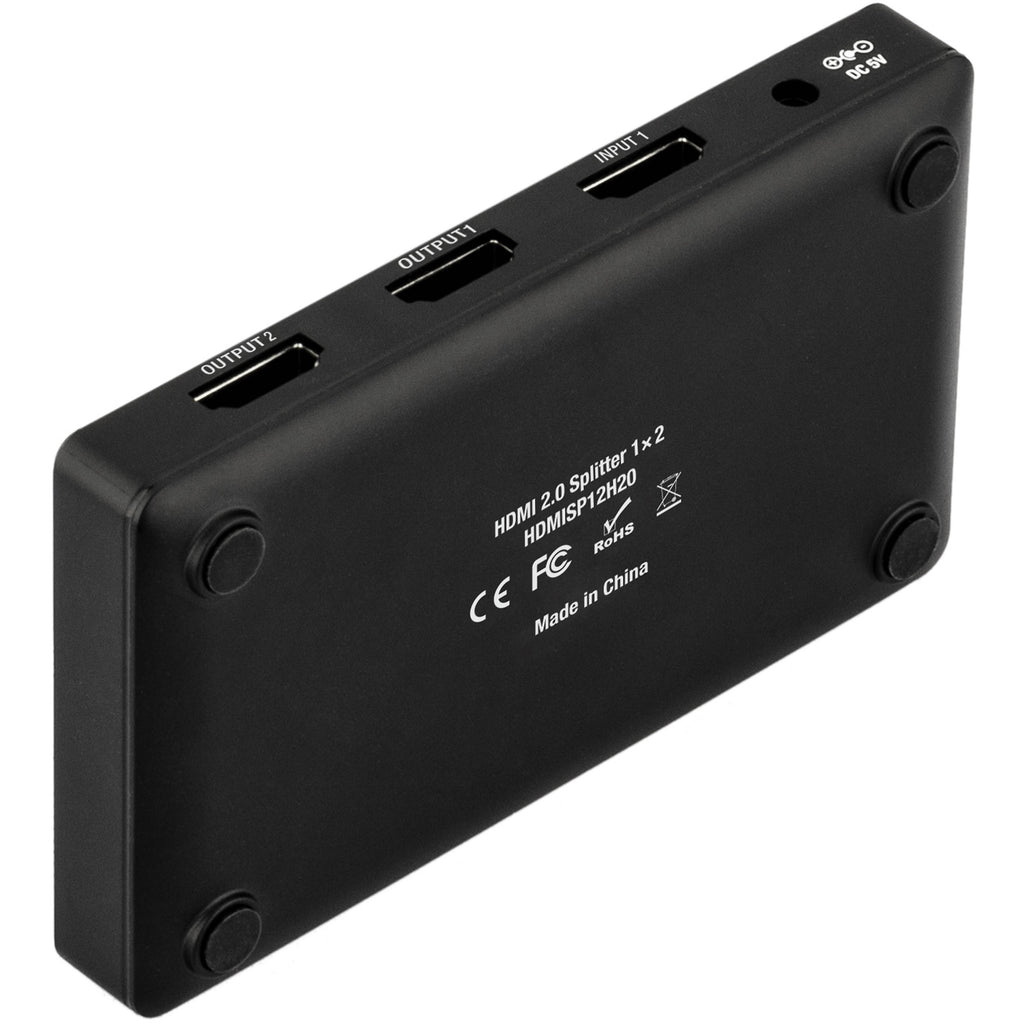

Kopul HDMI 2.0 1 x 2 Splitter

Send a 4K Source to Two Displays

Up to DCI/UHD 4K 60 Hz Resolution Input

Automatic Format Scaling per Output

HDCP 2.2 Compliant; Auto HDCP Scaling

Kopul 's HDMI 2.0 1 x 2 Splitter allows you to distribute a single 4K signal to up to two displays at the same time. You can connect a cable box, Blu-ray player, gaming platform, or other source and output the signal to TVs, computer monitors, and projectors. The splitter supports up to DCI 4K or UHD 4K 60 Hz resolution and high-quality audio formats. Supporting HDCP 2.2 copy-protected devices, it's compatible with a wide range of streaming and other formats.

The splitter is useful for presentations, digital signage, sports bars, and various other applications. The advanced audio support will allow you to maintain the sound quality of your HDMI signal. The 1 x 2 supports 5.1 channel, 7.1 channel, DTS, DSD, Dolby AC3, and 192 kHz 24-bit audio.

Two key features of the Kopul HDMI 2.0 1 x 2 Splitter are automatic per-output format scaling and automatic HDCP scaling. With format scaling, the splitter detects the format of every connected display and outputs a separate signal ideal for that device, no matter what the size or format of the monitor is. Automatic HDCP scaling ensures that a signal that requires HDCP 2.2 compliance can be viewed on older HDCP 1.4 compliant displays.

With plug-and-play simplicity, there's no need for special cables, software, or configuration. Once you connect everything, just hit the "play" button to get started.

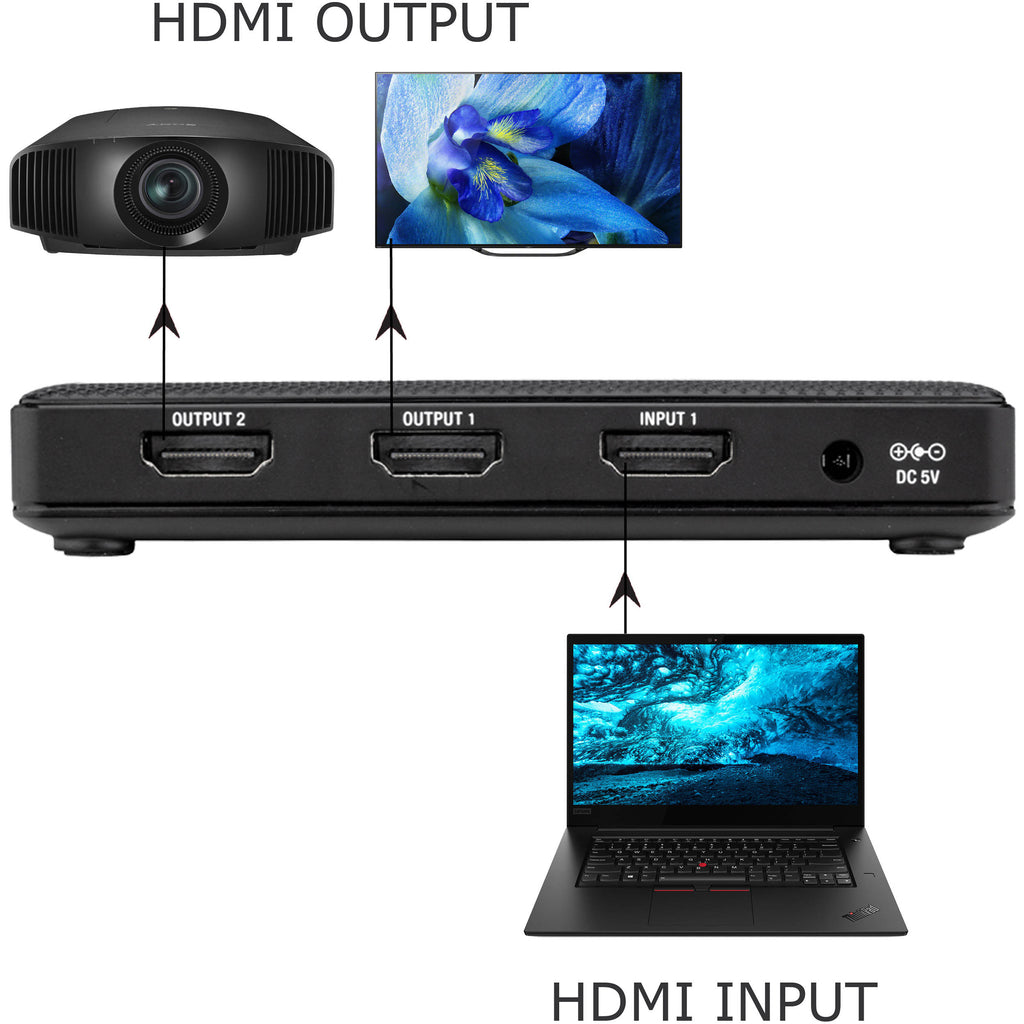

1 x 2 Splitter Send a video source to two monitors at the same time for presentations, HD digital signage, sports bars, and more. Thanks to automatic scaling per output, you can view the image with the ideal resolution for each monitor. The splitter accepts input signals from up to DCI/UHD 4K sources such as cable boxes, Blu-ray players, or gaming platforms. 18 Gb/s Bandwidth With data transfer rates up to 18 Gb/s, this HDMI 2.0 splitter supports the bandwidth you need for your 4K monitors so you can enjoy 4K video at 60 Hz in all its sharp detail, color depth, and smooth picture. Automatic Output Scaling Connecting monitors of different sizes and formats won't be a problem. The Kopul HDMI 2.0 1 x 2 features automatic per-output scaling that detects the format of all the attached monitors, and it outputs the ideal signal for each device. Automatic HDCP Scaling / HDCP 2.2 One of the most frustrating issues when you're connecting monitors or TVs with different HDCP compliance is realizing that one or more of your monitors simply won't display your video. To avoid the hassles of HDCP errors, the 1 x 2 splitter's automatic HDCP scaling ensures that an HDCP 2.2 compliant signal can be viewed on older HDCP 1.4 compliant displays. Plug-and-Play So much can often go wrong when using more than one monitor with different resolutions and HDCP formats, but the Kopul HDMI 2.0 1 x 2 splitter's plug-and-play simplicity lets you connect all your devices and then just hit the "play" button to begin. No other setup or configuration is necessary. UPC: 847628022683

Input Connectors	1 x HDMI (HDMI 2.0)
Output Connectors	2 x HDMI

HDCP Support	Version 2.2
Audio Decoding	DSD, DTS Digital Surround, Dolby Digital

PC Resolutions	4096 x 2160 at 60 Hz 3840 x 2160 at 60 Hz 1920 x 1080 at 60 Hz 1280 x 720 720 x 576 640 x 480
Audio Channels	5.1-Channel 7.1-Channel
Max Sample Rate/Resolution	192 kHz / 24-Bit
Maximum Data Rate	18 Gb/s

Power Consumption

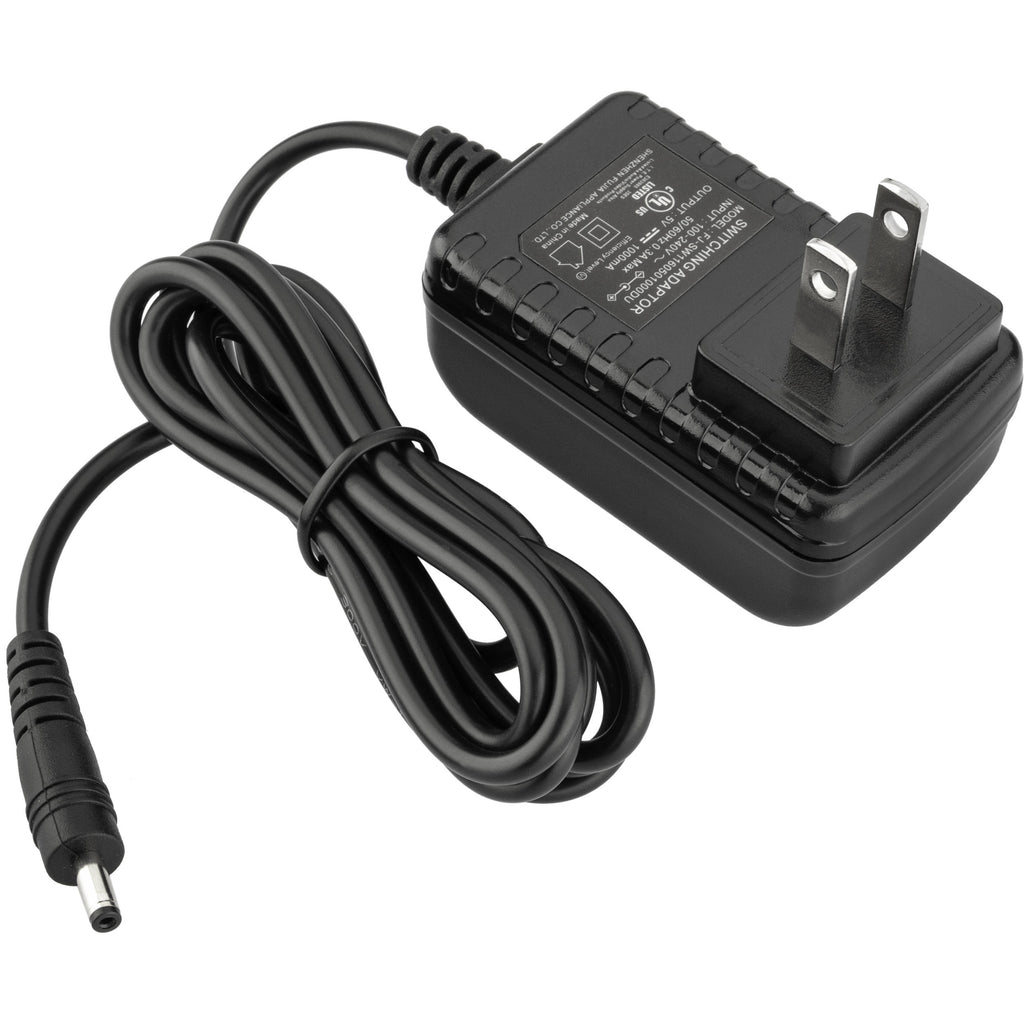

Power Supply: 5 VDC at 1 A (0.7 W)

Operating Temperature	32 to 96°F / 0 to 36°C
Storage Temperature	32 to 122°F / 0 to 50°C

Dimensions	4.3 x 2.6 x 0.8" / 11.0 x 6.5 x 1.9 cm
Weight	5.5 oz / 156 g

Package Weight	0.765 lb
Box Dimensions (LxWxH)	8 x 5.9 x 2"
