Kopul DMX55P-050-S Overview
- 1 Description
- 2 For DMX Systems
- 3 110-Ohm Impedance
- 4 Oxygen-Free Copper Cable
- 5 Interference Rejection
- 6 Strain Relief
- 7 Flexible
The 50' DMX55P-050-S Studio Series 5-Pin DMX Cable from Kopul is engineered for accurate and trouble-free DMX data transfer for stage, theater, live concerts, or DJ applications. The cable features nickel-plated 5-pin XLR connectors with chuck-style strain relief. The 24 AWG oxygen-free copper, braid and foil shielding, and PE insulation result in a cable with professional conductivity and interference rejection. It assures a pure transfer of DMX and other digital signals. A PVC jacket provides durability while maintaining flexibility.
For DMX Systems
Whether you're lighting a live stage or concert event or running DJ lights, Kopul DMX cables will connect all your DMX gear to a DMX controller.
110-Ohm Impedance
The cable is manufactured to the industry-standard 110-Ohm resistance for digital signals. This is ideal for transmitting DMX and other digital data.
Oxygen-Free Copper Cable
The OFC cables provide professional conductivity for reliable signal transfer of your DMX and other digital data signals, even with long cable runs.
Interference Rejection

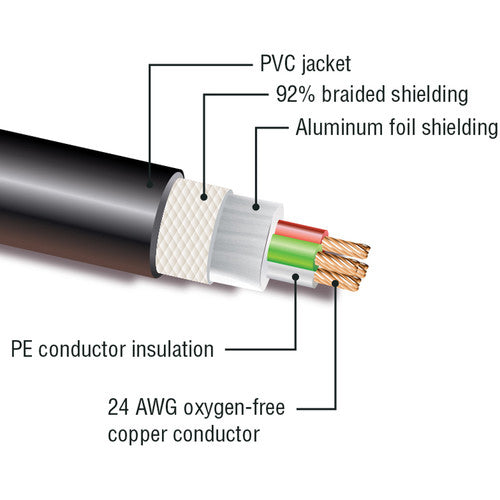

Braided tinned copper shielding with 92% coverage provides protection against EM and RF interference. A PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise won't compromise your signal.
Strain Relief
Chuck-style strain relief keeps these durable cables secure at the critical point where the cable meets the connector.
Flexible
A durable PVC jacket offers protection for the cable while maintaining flexibility.
UPC: 847628018860
Table of Contents
- Description
- For DMX Systems
- 110-Ohm Impedance
- Oxygen-Free Copper Cable
- Interference Rejection
- Strain Relief
- Flexible
Kopul DMX55P-050-S Specs
Electrical
Wire Gauge | 24 AWG |
Conductor Capacitance | 47 pF/ft |
Conductor DC Resistance | 85 Ohms/ft (Up to 3280.84' / 1000 m) |
Nominal Impedance | 110 Ohms |
General
Connector 1 | 5-Pin XLR Female |
Connector 2 | 5-Pin XLR Male |
Number of Conductors | 4 |
Conductor Material | Oxygen-Free Copper (OFC) |
Shielding | 92% Oxygen-Free Copper (OFC) Braid, Foil |
Jacket Type | Polyvinyl Chloride (PVC) |
Outer Diameter | 0.3" / 7.62 mm |
Bend Radius | 1.4" / 35.56 mm |
Maximum Pull Tension | 55 lb / 24.9 kg |
Operating Temperature | -4 to 158°F / -20 to 70°C (Recommended) |
Cable Length | 50' / 15.24 m |
Weight | 2.1 lb / 952.54 g |
Packaging Info
Package Weight | 2.125 lb |
Box Dimensions (LxWxH) | 10.45 x 9.45 x 2.15" |
