Kopul DMX-TP-S Overview

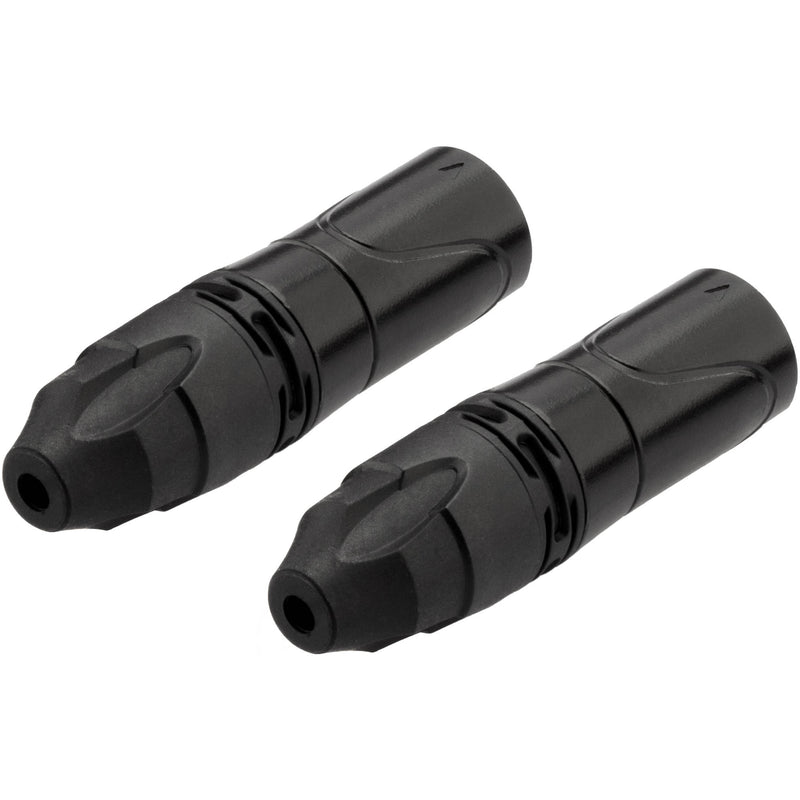

The DMX-TP-S 3-Pin and 5-Pin DMX Terminator Kit from Kopul includes one 3-pin terminator and one 5-pin terminator and is designed for operators of both 3-pin or 5-pin DMX lights. They can be used to eliminate bounce-back signal noise that can compromise the operation of your lighting system.
Kopul DMX5PT-S 5-Pin DMX Terminator
The DMX5PT-S 5-Pin DMX Terminator from Kopul is designed to plug into the last device in a DMX daisy chain to eliminate bounce-back signal noise that can compromise the operation of your lights. The terminator features a 120-Ohm resistor that absorbs the DMX signal that can accumulate over a long run of devices. It helps prevent disruption of your DMX programming.
Terminates DMX Runs
If your lights or other DMX devices are not operating correctly, plug the DMX5PT-S into the 5-pin DMX-out jack of the last device on your chain. It prevents the DMX signal from reflecting backward and eliminates DMX problems during shoots or live events.
Integrated 120-Ohm Resistor
The integrated 120-Ohm resistor absorbs signal reflections, eliminates DMX bounce-back, and provides smooth operation of the gear in your DMX chain.
Effective over Long Runs
As you add more lights to the daisy chain, it's more likely that you'll experience errors in your lighting programming due to bounce-back signal reflections. Especially for runs over 100 feet, plugging the DMX5PT-S into the last device is a fast and easy solution to keep your DMX gear running smoothly.
![]()
UPC: 847628018907
Kopul DMX3PT-S Studio 3-Pin DMX Terminator
The DMX3PT-S Studio 3-Pin DMX Terminator from Kopul is designed to plug into the last device in a DMX daisy chain to eliminate bounce-back signal noise that can compromise the operation of your lights. The terminator features a 120-Ohm resistor that absorbs the DMX signal that can accumulate over a long run of devices. It helps prevent disruption of your DMX programming.
Terminates DMX Runs
If your lights or other DMX devices are not operating correctly, plug the DMX3PT-S into the 3-pin DMX-out jack of the last device on your chain. It prevents the DMX signal from reflecting backward and eliminates DMX problems during shoots or live events.
Integrated 120-Ohm Resistor
The integrated 120-Ohm resistor absorbs signal reflections, eliminates DMX bounce-back, and provides smooth operation of the gear in your DMX chain.
Effective over Long Runs
As you add more lights to the daisy chain, it's more likely that you'll experience errors in your lighting programming due to bounce-back signal reflections. Especially for runs over 100 feet, plugging the DMX3PT-S into the last device is a fast and easy solution to keep your DMX gear running smoothly.
![]()
UPC: 847628018990
In the Box
- Kopul DMX5PT-S 5-Pin DMX Terminator
- Kopul DMX3PT-S Studio 3-Pin DMX Terminator
Kopul DMX5PT-S 5-Pin DMX Terminator Specs
Electrical
| Nominal Impedance | 120 Ohms |
General
| Connector 1 | 5-Pin XLR Male |
| Outer Diameter | 0.8" / 2.03 cm |
| Cable Length | 2.75" / 6.99 cm |
| Weight | 0.6 oz / 17 g |
Packaging Info
| Package Weight | 0.095 lb |
| Box Dimensions (LxWxH) | 4.7 x 3.3 x 0.8" |
Kopul DMX3PT-S Studio 3-Pin DMX Terminator Specs
Electrical
| Nominal Impedance | 120 Ohms |
General
| Connector 1 | 3-Pin XLR Male |
| Outer Diameter | 0.8" / 2.03 cm |
| Cable Length | 2.75" / 6.99 cm |
| Weight | 0.6 oz / 17 g |
Packaging Info
| Package Weight | 0.095 lb |
| Box Dimensions (LxWxH) | 4.7 x 3.3 x 0.8" |
