Description
- Tests 11 Connector Types
- Detachable Chassis for Long Cable Runs
- Integrated Test Tone Generator
- XLR, TRS, Speakon, RJ45, RCA, BNC & More
- Simple & Convenient Operation
- Flashing LED Indicators Test Each Pin
- Leads for Testing Additional Connectors
- Rugged, Lightweight Plastic Construction
- Runs on Two 9-Volt Batteries

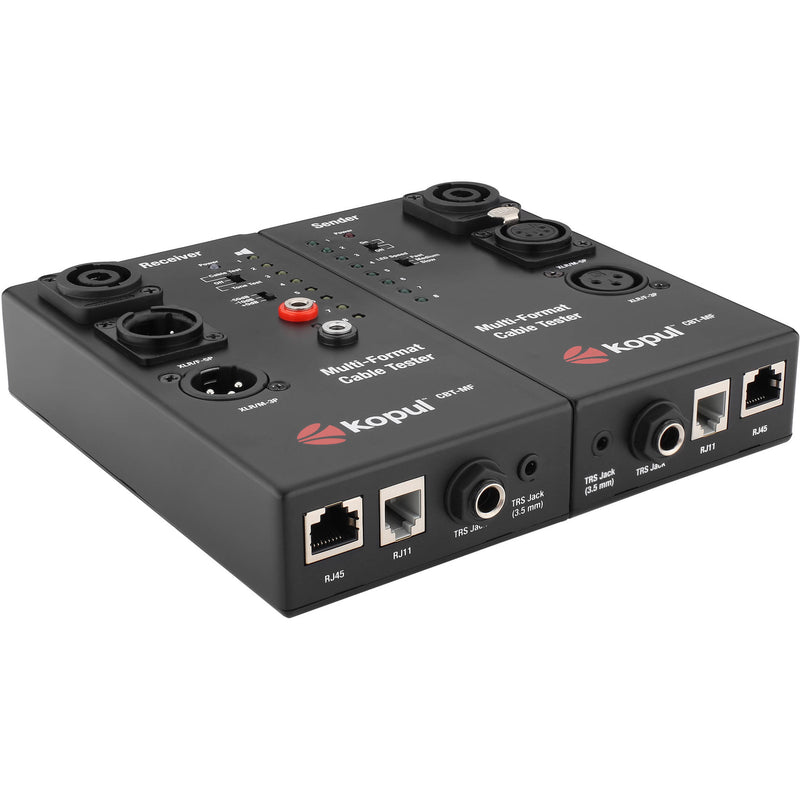

The Kopul CBT-MF is a professional-quality cable tester with a split-chassis design that allows users to test the continuity of a wide variety of cables with a single device. It quickly identifies connectivity and ground problems in some of the most frequently-used cables, and makes troubleshooting audio and studio setups fast and effortless.
The split chassis allows users to separate the two halves of the CBT-MF. This feature provides an easy way to test the continuity of long cables that have been run through walls or ceilings as well as cables that have been put into audio or home theater installations. LED indicators and tones verify that each pin on the cable is properly connected. For additional functionality, the CBT-FM generates a test tone, great for troubleshooting a variety of connections.
The CBT-MF can test cables with any combination of Speakon 4-pin, XLR 3-pin, XLR 5-pin, TRS, DIN 3-pin/5-pin, RCA, RJ45, RJ11, BNC, or TRS 3.5mm connectors. Two removable leads are included for testing any kind of wire or cable with jacks that are not included on this model. They also allow for testing connections when building or repairing cables or when wiring studios or audio installations.
The CBT-MF is ideal for home, project, and professional studio use. Constructed with lightweight and durable plastic, the CBT-MF is a road-ready tool for studio techs and install engineers.
- Tests Cable Continuity
- Provides easy and simple continuity testing for cables with any combination of Speakon 4-pin, XLR 3-pin, XLR 5-pin, RCA, DIN 3-pin, DIN 5-pin, TRS, RJ45, RJ11, BNC, and TRS (3.5 mm) plugs
- Detachable Chassis
- Detachable dual chassis simplifies the testing of long cable runs and cables previously wired into audio or home theater installations
- Tone Generator
- Built-in tone generator with 0 dB, -10 dB, and -50 dB amplitude selector
- Checks Each Pin Separately
- Automatically tests each pin in the cable. Flashing LEDs and repeating tone indicate continuity for each pin
- Status LEDs
- The first three LEDs light up in sequence indicating that batteries are installed in both battery compartments
- Removable Leads
- Two removable leads included to verify continuity of additional connectors
- Durable Build Quality
- Lightweight and rugged construction for extended use in studio and other installation projects
- Battery Powered
- Operates on two 9-volt batteries (not included)
| Connectors | Speakon 4-pin XLR M/F 3-pin XLR M/F 5-pin RCA (phono) DIN 3-pin/5-pin TRS TRS (3.5 mm) RJ45 RJ11 BNC Banana plugs |
| Audio Test Tone | +0 dB, -10 dB, -50 dB (amplitude) |
| Power | 2x 9 V battery (not included) |
| Dimensions | 1.25 × 6.50 × 6.00" (3.2 × 16.5 × 15.2 cm), both units 3.25" (8.2 cm), width of each when detached |
| Weight | 1.4 lb (0.6 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.75 lb |
| Box Dimensions (LxWxH) | 12.7 x 9.6 x 3.5" |
- Removable Leads
- Limited 1-Year Warranty
